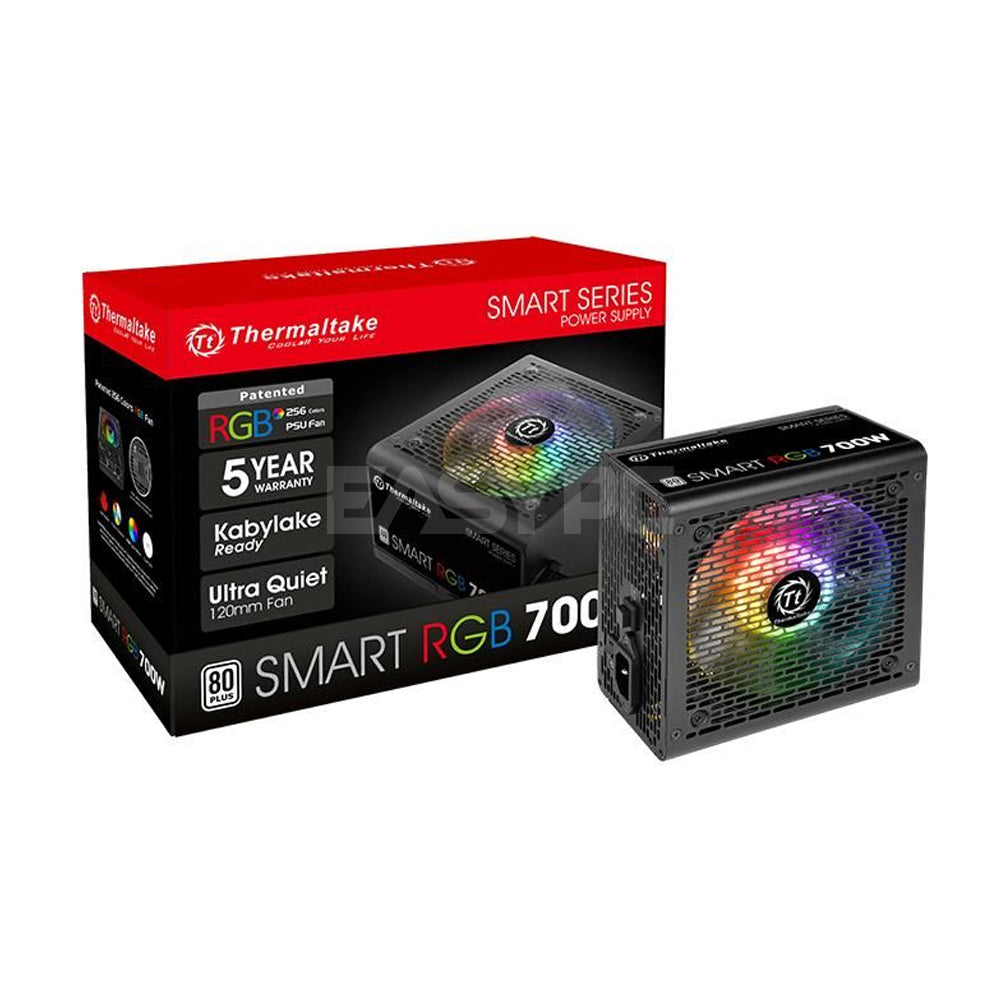

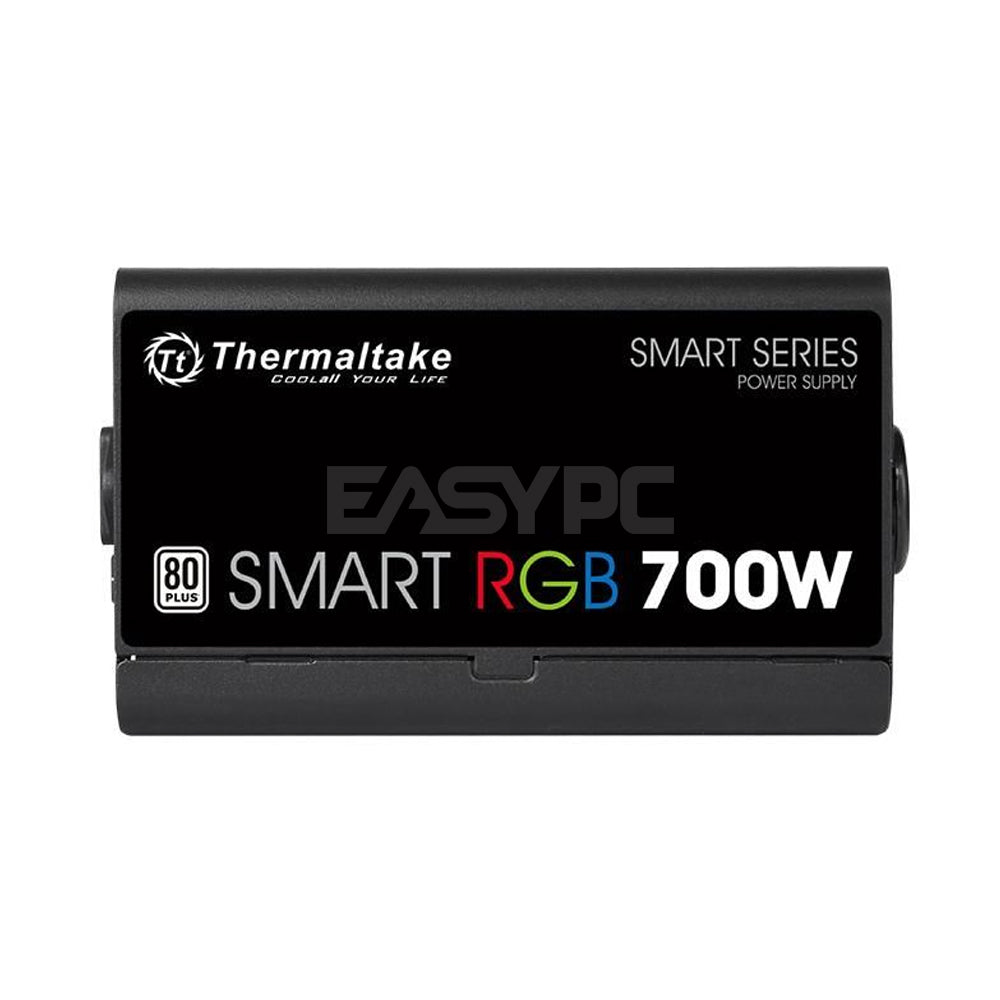

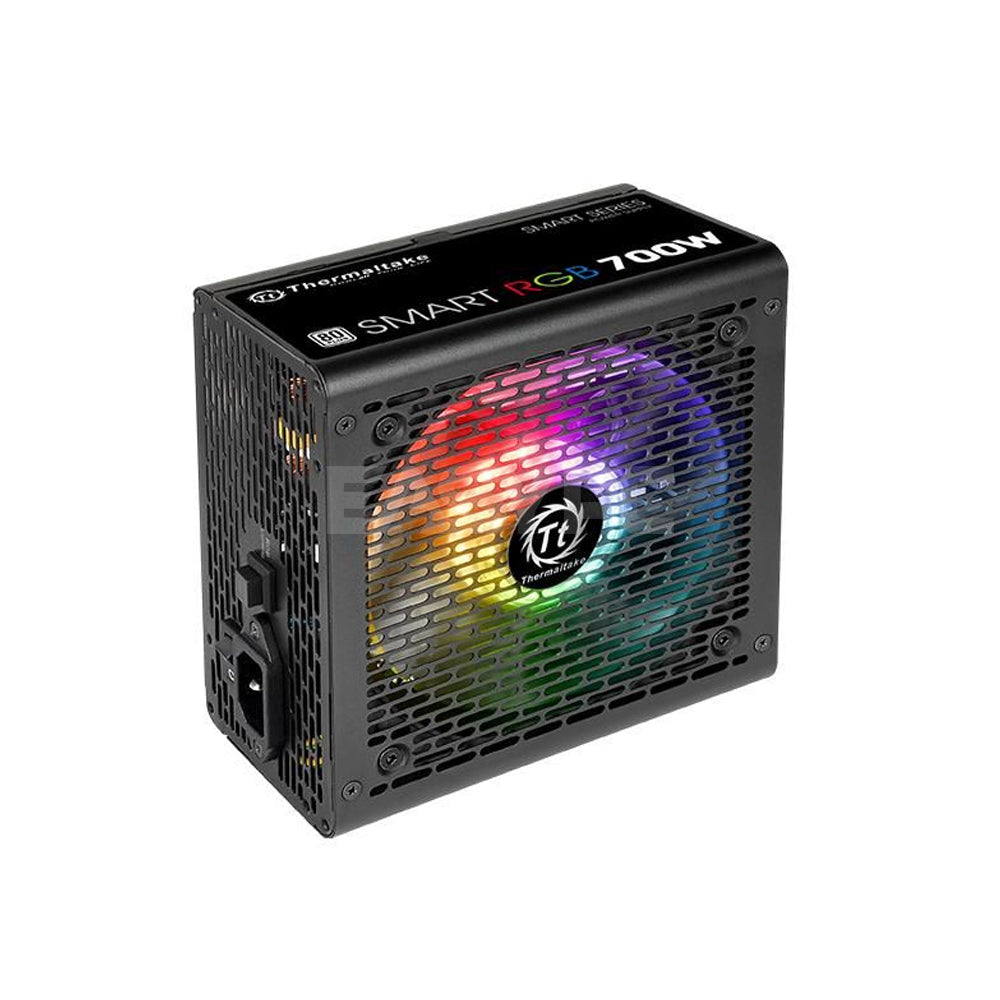

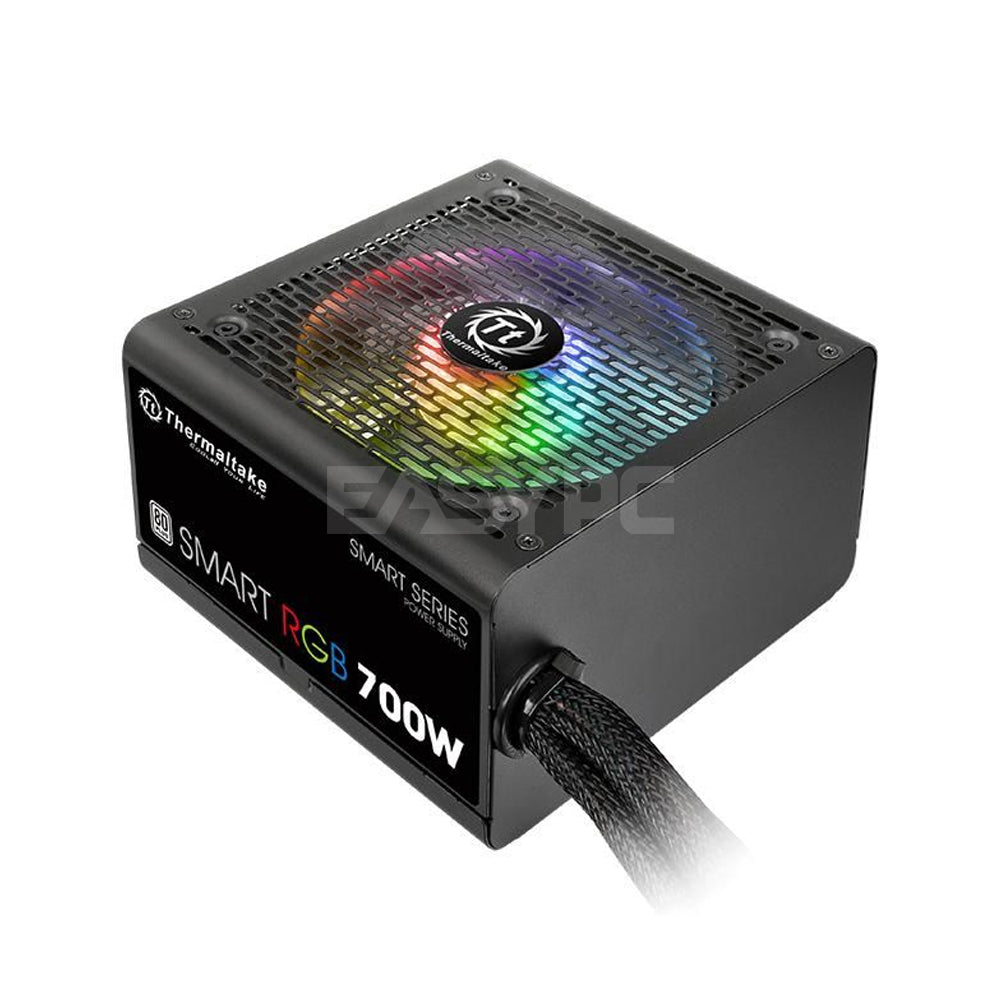

Thermaltake Smart SPR-0700 80 Plus RGB Power Supply 700watts
Payment Options
Thermaltake Smart SPR-0700 80 Plus RGB Power Supply 700watts
-
BrandThermaltake
Specification:
TECHNICAL SPECIFICATIONS
Model Smart RGB 700W
Series Smart RGB Series
Part Number PS-SPR-0700NHFAWx-1
Type Power Supply
Compliant with ATX 12V 2.3
Efficiency 80 PLUS Standard (80-87% efficiency @ 20-100% load)
Wattage 700W
Dimensions 150mm(W)x86mm(H)x140mm(D)
AC INPUT Input Voltage : 230V
Input Current : 12A max
Frequency : 50-60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
MAX 24A 17A 54A 0.5A 2.5A
TOTAL 120W 648W 6.0W 12.5W
550W
OTHER SPECIFICATIONS
Color Black
PFC ?Power Factor Correction? Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) within 60% load
Input current 12A max
Input Frequency Range 50 Hz 60 Hz
Input Voltage 100Vac 240Vac
Operating Temperature 5? to +40?
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40 ? to +55 ?
Storage Humidity 10% to 95%, non-condensing
Cooling System 120mm Fan: 1800 R.P.M. 10%
MTBF 100,000 hrs minimum
Safety Approval CE/CB/TUV/ UL/ FCC/ EAC
P/N PS-SPR-0700NHFAWx-1
Protection OVP, OPP, SCP
Ideal For
- Powering custom-built desktop PCs
- System upgrades and new builds
- Replacing an existing power supply unit
