EVGA 500BV 500 watts 80 Plus Bronze Power Supply

EasyPC Mid-Year Sale

₱2,475.00

Delivery Options

Express Delivery - Php200.00 - Php250.00Same Day

Express Delivery - Php200.00 - Php250.00Same Day

Standard Delivery - Php0.00Est. 2-3 Days

Payment Options

Dragonpay

Cash on Delivery

EVGA 500BV 500 watts 80 Plus Bronze Power Supply

Product Specifications

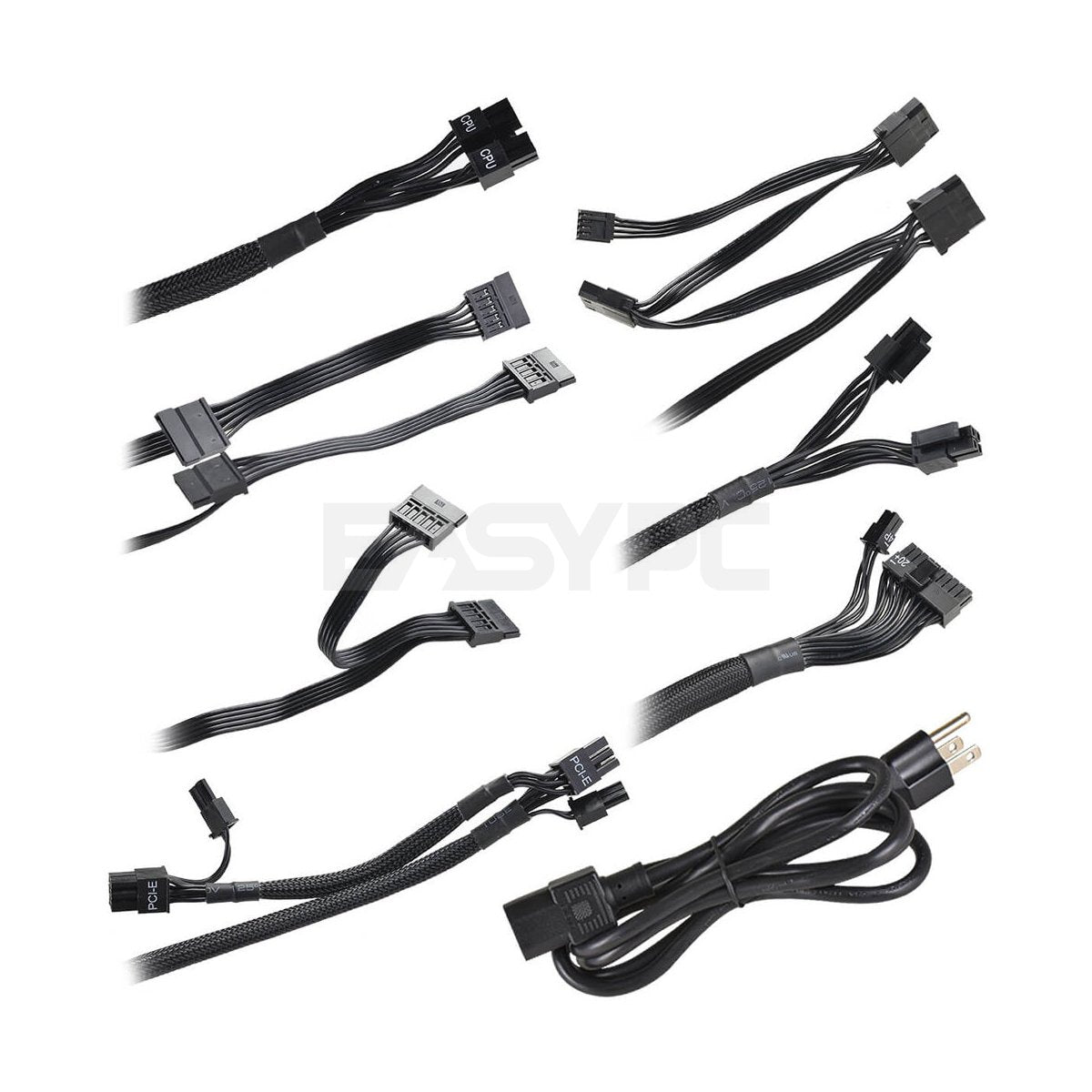

Cable Length

  • ATX Cable: 1x 550mm
  • EPS Cable: 1x 600mm
  • PCIe Cable: 1x 550mm, 670mm
  • SATA Cable: 2x 450mm, 570mm
  • Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm + 810mm (Floppy)
  • AC Power: 1x 1200mm (m)
  • Modular Cable Type: No

CONNECTOR QUANTITY

  • 24 Pin ATX: 1x
  • EPS (CPU): 1x 8pin (4+4)
  • PCIe: 2x 8pin (6+2)
  • SATA: 4x
  • Four-Pin Peripheral: 3x
  • Floppy: 1x

INPUT

  • Input Voltage: 110 - 240 VAC
  • AC Input: 8/4A
  • Input Frequency Range: 50 - 60 Hz
  • Efficiency: 85% Typical

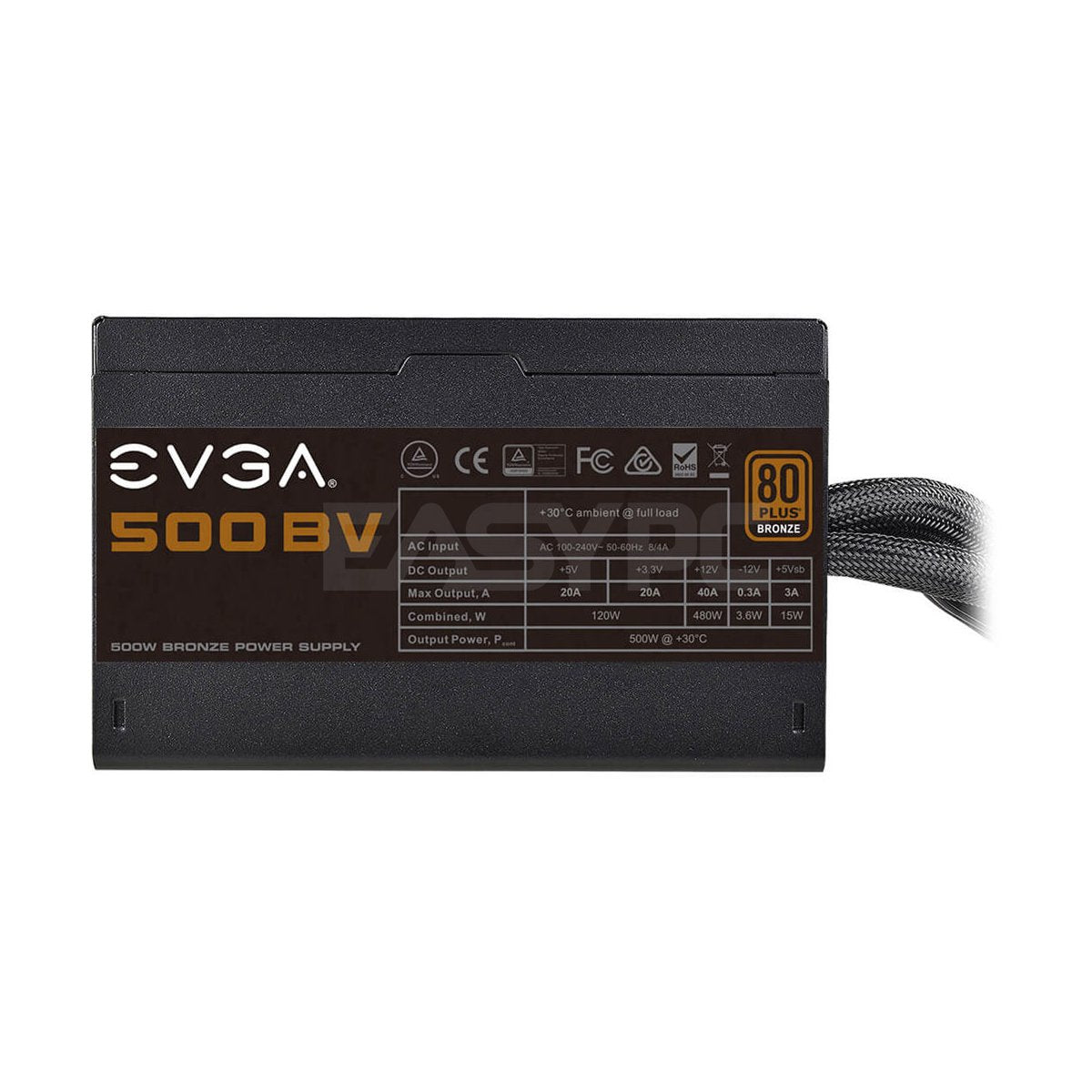

OUTPUT

  • Rail: +3.3V, +5V, +12V, -12V, +5Vsb
  • Max Output: 20A, 20A, 120W,40A,480W,480W 0.3A,3.6W,3A,15W

ADDITIONAL DETAILS

  • Operating Temperature: 0° to 30° C
  • Japanese Capacitors: No
  • ECO Mode: No
  • MTBF: 100,000 Hours
  • Net Weight: 3 lbs
  • Size: 85mm (H) x 150mm (W) x 140mm (L)
  • Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
    Compliance with ErP Lot 6 2013 Requirement
  • Fan Size / Bearing: 120mm Sleeve Bearing
  • UPC: 843368047023
  • EAN: 4250812419033

EVGA 500BV 500 watts 80 Plus Bronze Power Supply

Product Specifications

Cable Length

  • ATX Cable: 1x 550mm
  • EPS Cable: 1x 600mm
  • PCIe Cable: 1x 550mm, 670mm
  • SATA Cable: 2x 450mm, 570mm
  • Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm + 810mm (Floppy)
  • AC Power: 1x 1200mm (m)
  • Modular Cable Type: No

CONNECTOR QUANTITY

  • 24 Pin ATX: 1x
  • EPS (CPU): 1x 8pin (4+4)
  • PCIe: 2x 8pin (6+2)
  • SATA: 4x
  • Four-Pin Peripheral: 3x
  • Floppy: 1x

INPUT

  • Input Voltage: 110 - 240 VAC
  • AC Input: 8/4A
  • Input Frequency Range: 50 - 60 Hz
  • Efficiency: 85% Typical

OUTPUT

  • Rail: +3.3V, +5V, +12V, -12V, +5Vsb
  • Max Output: 20A, 20A, 120W,40A,480W,480W 0.3A,3.6W,3A,15W

ADDITIONAL DETAILS

  • Operating Temperature: 0° to 30° C
  • Japanese Capacitors: No
  • ECO Mode: No
  • MTBF: 100,000 Hours
  • Net Weight: 3 lbs
  • Size: 85mm (H) x 150mm (W) x 140mm (L)
  • Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
    Compliance with ErP Lot 6 2013 Requirement
  • Fan Size / Bearing: 120mm Sleeve Bearing
  • UPC: 843368047023
  • EAN: 4250812419033
