Thermaltake View 37 ARGB Window ATX Mid-Tower Chassis CA-1J7-00M1WN-04 5NANO THCA2220

Product Specifications

• BRAND: Thermaltake
• P/N: CA-1J7-00M1WN-04
• SERIES: View
• CASE TYPE: Mid Tower
• DIMENSION (H X W X D): 525 x 261 x 538mm, (20.6 x 10.3 x 21.2 inch)
• NET WEIGHT: 11.3 kg / 24.91 lb
• SIDE PANEL: L-type transparent window
• COLOR: Exterior & Interior: Black
• MATERIAL: SPCC
• COOLING SYSTEM
• Front (Intake): 200 x 200 x 30mm Addressable RGB fan (800rpm, 29.2dBA) x 2
• Rear (exhaust): 120 x 120 x 25 mm Addressable RGB fan (1000rpm, 27.2dBA) x 1
• DRIVE BAYS
• ACCESSIBLE
• HIDDEN
• 3 x 3.5’’ or 2.5’’(HDD tray)
• 8 x 2.5’’ or 4 x 3.5” (HDD Bracket)
• EXPANSION SLOTS: 8 + 2
• MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
• I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1,
• PSU: Standard PS2 PSU (optional)
• FAN SUPPORT
• Front: 3 x 120mm, 3x 140mm, 2 x 200mm
• Rear: 1 x 120mm, 1 x 140mm
• Right Side (In front of M/B Tray): 3 x 120mm, 3 x 140mm
• Bottom: 1 x 120mm, 1 x 140mm
• RADIATOR SUPPORT
• Front: 1 x 360mm, 1 x 280mm
• Rear: 1 x 120mm, 1 x 140mm
• Right Side (In front of M/B Tray): 1 x 360mm, 1 x 420mm
• CLEARANCE
• CPU cooler height limitation: 180mm
• PSD length limitation:220mm
• VGA length limitation: 410mm (Without Front Fan)
• OVERVIEW:

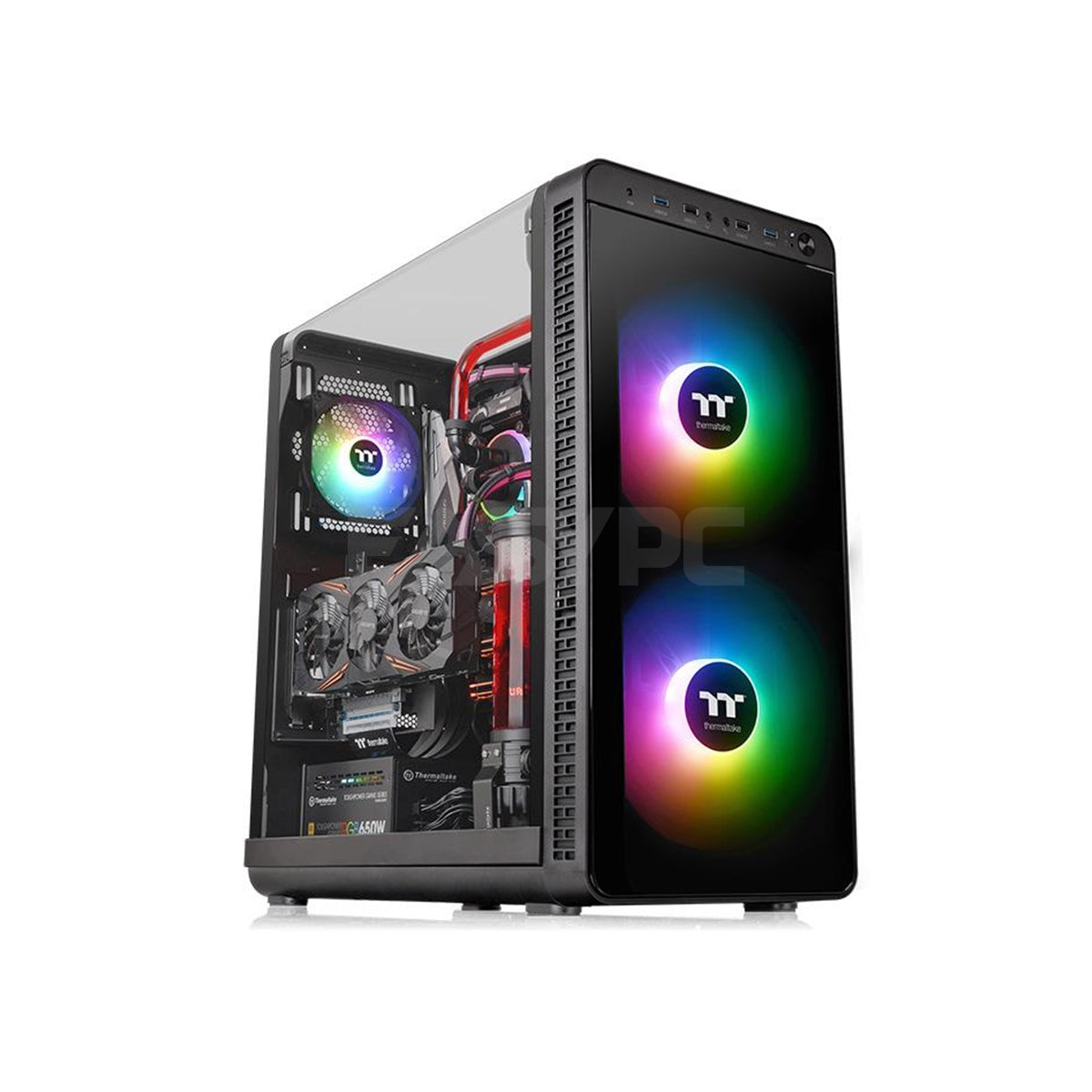

• E-ATX mid-tower chassis with two preinstalled 200mm ARGB fans and one 120mm ARGB fan.
• Thermaltake View 37 ARGB Edition Mid-Tower Chassis: Thermaltake View 37 ARGB Edition mid-tower chassis involves a gull-wing window panel for a view from more than just one angle. Features to built-in two 200mm 5V ARGB LED front fans and one 120mm 5V ARGB LED rear fan which are addressable to deliver 16.8 million-color RGB illumination and unparalleled ventilation. This model comes ready to sync with RGB capable motherboards from Asus, Gigabyte, MSI and AsRock. The View 37 ARGB is built for our top-tier cooling and lighting hardware, supporting custom liquid cooling loops as well as vertical GPU layouts and RGB lighting. Build your ultimate show-piece with the new View 37 ARGB.
• FEATURES:
• TT Premium: To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high-performance PC product for every enthusiast.
• Tt LCS Certified: Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
• Dual Built-in 200mm 5V ARGB LED Case Fans: Preinstalled with two 200mm 5V ARGB LED front fans featuring hydraulic bearing, 9 addressable LEDs and 16.8 million-color illumination to guarantee high airflow and custom system designs to show off your PC design skills.
• The 5V ARGB LED fans can be controlled using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options.
• Built-in 120mm 5V ARGB LED Fan: What comes preinstalled at the rear is a 120mm 5V ARGB LED fan with hydraulic bearing, 9 addressable LEDs and 16.8 million-color vivid lighting. Cooling performance and styling will never suffer.
• Built-in 5V RGB Switch Board: Thanks to the built-in 5V RGB switch board, View 37 ARGB is able to deliver the addressable RGB lighting customization through the I/O port RGB button or the synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome motherboards.
• Vertical Radiator View (VRV): Showcase your custom loop with our vertical radiator placement, meaning you can showcase your RGB fans from any angle. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.
• Riser GPU Support Bracket: Specially designed for dual GPU placement options, View 37 ARGB Edition has the support for vertical graphic card layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic card from sagging, but also helps to reduce the weight on the motherboard PCI-E slots.
• Enlarged Transparent Gull-wing Window Panel: The totally unique gull-wing window on the View 37 ARGB gives you amazing views of your hardware from any angle. Since the new View 37 ARGB supports vertical GPU placement and vertical radiator placement – your ultimate RGB system is just a step away.
• Tool-Free Installation: The fully modular tool-free drive cages to provide the ease of installation/removal and maximize the interior space for highly customizable layouts. The modular drive bay concept of “3+4” offers a good ratio for accessories and storage devices.
• 5” or 2.5” HDD Drive Compatible
• Outstanding Expandability: Guarantees outstanding hardware expandability thanks to the support for standard E-ATX form factor motherboards, a CPU cooler with maximum height 180mm, a VGA of up to 410mm in length without front fan, and a power supply with length of up to 220mm while there is still plenty room for accommodating multiple 3.5”/2.5” storage devices.
• Advanced Ventilation: To dissipate heat properly, View 37 ARGB is preinstalled with two 200mm 5V ARGB intake fans and one 120mm 5V ARGB exhaust fan. It enables users to build a complete high-end system with ample room for up to 8 case fans, and full compatibility with 420mm, 360mm, 280mm, 240mm, 140mm and 120mm radiators.
• Removable front fan filter and the power supply filter at the bottom provide excellent reduction against dirt and dust and give better airflow.
• Sync with Motherboard RGB Software: Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
