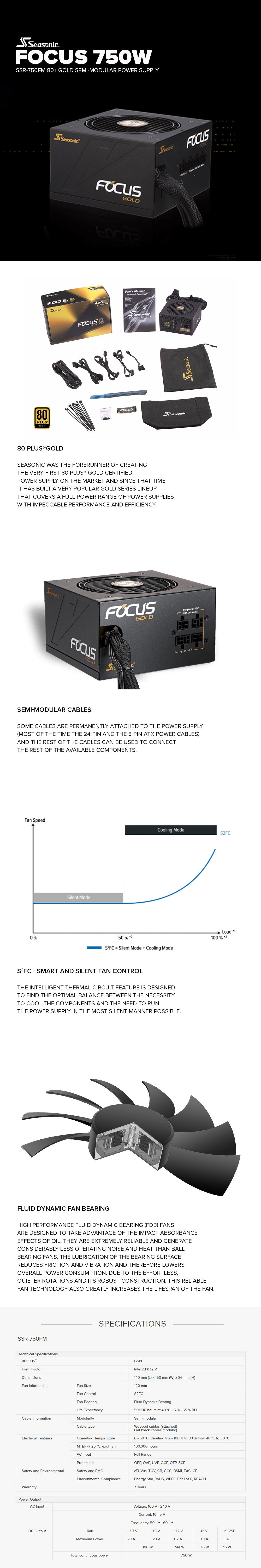

Seasonic Focus 750W SSR-750FM 80+ Gold Semi-Modular Power Supply

Seasonic Focus Gold 750W, 50W, 550W SSR-750FM 80 Plus Multi-GPU setup Semi-Modular Cables Power Supply

Product Specifications

• Brand: Seasonic
• Model: Focus Gold SSR-750FM, SSR-650FM, SSR-550FM
• Capacity: 750W, 650W, 550W
• 80PLUS: Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
• Fan Information
• Fan Size: 120 mm
• Fan Control: S2FC
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information
• Modularity: Semi-modular
• Cable type: Webbed cables (attached); Flat black cables(modular)
• Electrical Features
• Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
• MTBF @ 25 °C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Power Output
• AC Input
• Voltage: 100 V - 240 V
• Current: 10 - 5 A (750W), 9 - 4.5 A (650W), 8 - 4 A (550W)
• Frequency: 50 Hz - 60 Hz
• DC Output
• Rail: +3.3 V +5 V       +12 V    -12 V     +5 VSB
• Maximum Power: 20 A 20 A       62 A       3 A      3 A; 100 W          744 W   3.6 W    15 W (750W)
• Maximum Power: 20 A 20 A       54 A       3 A      3 A; 100 W          648 W   3.6 W    15 W (650W)
• Maximum Power: 20 A 20 A       45 A       3 A      3 A; 100 W          540 W   3.6 W    15 W (550W)
• Features:
• 80 PLUS® Gold certified
• Semi-Modular Cables
• Compact Size - 140 mm deep
• Tight Voltage Regulation
• Cable-free Connection Design
• S2FC - Smart and Silent Fan Control
• DC to DC Converter Design
• Multi-GPU setup
• Gold plated connectors
