Asrock B450M HDV Motherboard Socket Am4 Ddr4

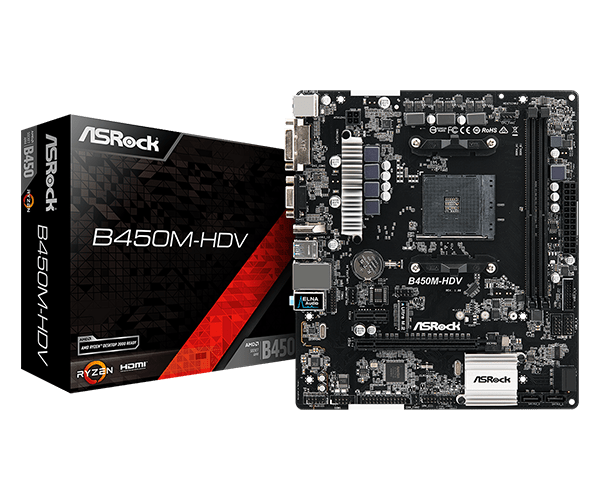

ASRock B450M-HDV - Reliable AM4 Micro-ATX Motherboard with DDR4

Build your AMD Ryzen-powered system with the ASRock B450M-HDV, a reliable and affordable Micro-ATX motherboard designed for AMD Socket AM4 processors. Featuring support for Ryzen 2000/3000/5000 Series CPUs, DDR4 memory up to 3200MHz, PCIe 3.0 x16 graphics slot, Ultra M.2 storage, and ASRock Super Alloy components, this motherboard delivers dependable performance for gaming and productivity builds on a budget.

Key Features

• AMD Socket AM4 - Supports AMD Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• DDR4 Memory - 2 DIMM slots supporting up to 64GB DDR4 at 3200MHz with overclocking
• Ultra M.2 Socket - PCIe Gen3 x4 & SATA3 support for ultra-fast NVMe SSDs
• Triple Monitor Support - HDMI, DVI-D, and D-Sub outputs for versatile display options
• ASRock Super Alloy - Premium components for enhanced durability and stability
• Micro-ATX Form Factor - Compact design fitting most standard PC cases

AMD B450 Chipset Platform

The B450 chipset offers excellent value and performance for AM4 builds:

• Wide CPU Compatibility - Support for multiple generations of Ryzen processors
• PCIe 3.0 Ready - Full-speed support for modern graphics cards
• Overclocking Support - DDR4 3200+ memory overclocking capability
• Storage Flexibility - 4 SATA3 ports plus Ultra M.2 for NVMe SSDs

Memory & Storage

DDR4 Memory Support:

• 2 x DDR4 DIMM slots with dual channel architecture
• Supports up to 64GB maximum capacity
• DDR4 3200+ (OC) / 2933 / 2667 / 2400 / 2133 MHz
• ECC and non-ECC unbuffered memory support*
• Extreme Memory Profile (XMP) support
• 15μ Gold Contact in DIMM slots for better signal quality

Storage Options:

• 1 x Ultra M.2 Socket: Type 2242/2260/2280, PCIe Gen3 x4 & SATA3 support
• 4 x SATA3 6.0 Gb/s ports
• RAID support: RAID 0, RAID 1, and RAID 10
• NCQ, AHCI, and Hot Plug support
• Supports NVMe SSD as boot disk
• Compatible with ASRock U.2 Kit

Expansion & Connectivity

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (supports x16/x8/x4 mode depending on CPU)*
• 1 x PCIe 2.0 x1 slot

Graphics Outputs (for Ryzen APUs):

• 1 x HDMI port - supports 4K @ 30Hz (3840x2160)
• 1 x DVI-D port - supports 1920x1200 @ 60Hz
• 1 x D-Sub port - supports 2048x1536 @ 60Hz
• Supports triple monitor configuration
• HDCP 1.4 support on HDMI and DVI-D
• Auto Lip Sync, Deep Color, xvYCC, and HBR audio support

Networking:

• Realtek RTL8111H Gigabit Ethernet (10/100/1000 Mb/s)
• Wake-On-LAN support
• Lightning/ESD protection
• Energy Efficient Ethernet 802.3az
• PXE support

USB Connectivity:

• Rear Panel: 4x USB 3.1 Gen1 + 2x USB 2.0
• Front Panel: 2x USB 3.1 Gen1 + 4x USB 2.0 via headers
• Total: 6 USB 3.1 Gen1 + 6 USB 2.0 ports
• ESD protection on all USB ports

Technical Specifications

ASRock Exclusive Technologies

ASRock Super Alloy:

• High Density Glass Fabric PCB - Enhanced electrical properties and durability
• Sapphire Black PCB - Premium aesthetics and quality
• Solid Capacitor Design - Enhanced stability and longer lifespan

ASRock Full Spike Protection:

• Protects all USB ports from electrical surges
• Protects audio jacks from electrical damage
• Protects LAN port from lightning and power surges
• Comprehensive protection for longer motherboard life

ASRock Ultra M.2:

• Supports both PCIe Gen3 x4 and SATA3 M.2 SSDs
• Up to 32 Gb/s transfer speed with NVMe drives
• Compatible with 2242, 2260, and 2280 M.2 modules

Audio & Multimedia

• Realtek ALC887 Audio Codec - 7.1 channel HD audio
• ELNA Audio Capacitors - Premium audio caps for better sound quality
• Surge Protection - Protects audio circuits from electrical damage
• HD Audio Jacks - Line In, Front Speaker, Microphone

Cooling & Monitoring

Fan Connectors:

• 1 x CPU Fan (4-pin) - supports up to 12W (1A) fan power
• 1 x Chassis Fan (3-pin) - supports up to 12W (1A) fan power
• 1 x Chassis/Water Pump Fan (4-pin) - supports up to 24W (2A) for water cooling
• Smart Fan Speed Control with auto-detection

Hardware Monitoring:

• Temperature sensing: CPU, Chassis, Water Pump
• Fan tachometer for all fan connectors
• Quiet Fan mode - auto-adjusts fan speed by CPU temperature
• Fan multi-speed control
• Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Chassis intrusion detection

Software & UEFI Features

• ASRock Full HD UEFI - User-friendly graphical interface
• ASRock Instant Flash - Easy BIOS updates from within UEFI
• ASRock A-Tuning - Windows-based overclocking and monitoring utility
• ASRock Easy RAID Installer - Simplified RAID configuration
• ASRock Live Update & APP Shop - Automatic driver and utility updates

Perfect For:

• Budget-friendly AMD Ryzen gaming builds
• Home office and productivity systems
• Entry-level content creation workstations
• Compact Micro-ATX PC builds
• HTPC (Home Theater PC) with triple monitor support
• Upgrading older AM4 systems
• Systems requiring reliable, no-frills performance

Warranty Information

1 Year Store Warranty - This product is covered by our comprehensive store warranty. For complete warranty terms and conditions, please visit our Warranty Information Page.

System Requirements

• AMD Ryzen 2000, 3000, 4000 G-Series, 5000, or 5000 G-Series Desktop Processor
• DDR4 memory modules (up to 2 DIMMs)
• ATX power supply with 24-pin and 4-pin 12V connectors
• Micro-ATX compatible computer case
• Windows 10 64-bit / Windows 11 64-bit*

What's in the Box

• ASRock B450M-HDV Motherboard
• 2 x SATA Data Cables
• 1 x M.2 Screw
• 1 x I/O Shield
• Quick Installation Guide
• User Manual

Build with confidence using the ASRock B450M-HDV - where reliable AM4 platform performance meets budget-friendly value for your Ryzen-powered system!

*Note: AMD Ryzen 2000 Series (Summit Ridge) does not officially support Windows 11. ECC memory support available with PRO CPUs for APU models.
