Asrock H510M-HVS Socket LGA 1200, Supports Windows 11, VR Ready, Super Alloy Ddr4 Motherboard
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Asrock H510M-HVS Socket LGA 1200, Supports Windows 11, VR Ready, Super Alloy Ddr4 Motherboard

Available:In Stock
    ₱3,850.00 ₱3,899.00
    Add to wishlist
    Delivery Options
    Free Standard Delivery
    • Est. Arrival: 2-3 days
    Payment Options
    • cash-on-delivery
    • 7eleven
    • BillEase
    • GCash
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard

    Asrock H510M-HVS Socket LGA 1200, Supports Windows 11, VR Ready, Super Alloy Ddr4 Motherboard

    Product Specification

    • Unique Feature
    • ASRock Super Alloy
    • Premium 50A Power Choke
    • Sapphire Black PCB
    • High Density Glass Fabric PCB
    • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    • ASRock Live Update & APP Shop
    • CPU: Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
    • 5 Power Phase design
    • Supports Intel® Turbo Boost Max 3.0 Technology
    • Chipset: Intel® H510
    • Memory: Dual Channel DDR4 Memory Technology
    • 2 x DDR4 DIMM Slots
    • Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    • Supports ECC UDIMM memory modules (operate in non-ECC mode)
    • capacity of system memory: 64GB**
    • Supports Intel® Extreme Memory Profile (XMP) 2.0
    • *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
    • 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.



    • **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    • BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    • ACPI 6.0 Compliant wake up events
    • SMBIOS 2.7 Support
    • CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
    • Graphics: 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
    • Dual graphics output: support HDMI and D-Sub ports by independent display controllers
    • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors
    • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors
    • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
    • Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)
    • *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Graphics specifications may vary between CPU types.
    • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    • Supports Surge Protection
    • LAN: PCI-E x1 Gigabit LAN 10/100/1000 Mb/s
    • 1 x Realtek RTL8111H
    • Supports Wake-On-LAN
    • Supports Lightning/ESD Protection
    • Supports Energy Efficient Ethernet 802.3az
    • Supports PXE
    • Slots
    • 11th Gen Intel® Core™ Processors
    • 1 x PCI Express 4.0 x16 Slot*
    • 10th Gen Intel® Core™ Processors
    • 1 x PCI Express 3.0 x16 Slot*
    • 1 x PCI Express 3.0 x1 Slot
    • *Supports NVMe SSD as boot disks
    • Storage: 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
    • Connector: 1 x SPI TPM Header
    • 1 x Chassis Intrusion and Speaker Header
    • 1 x CPU Fan Connector (4-pin)*
    • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    • 1 x 24 pin ATX Power Connector
    • 1 x 8 pin 12V Power Connector
    • 1 x Front Panel Audio Connector
    • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    • *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    • **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    • CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
    • Rear Panel I/O: 1 x PS/2 Keyboard Port
    • 1 x PS/2 Mouse Port
    • 1 x D-Sub Port
    • 1 x HDMI Port
    • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    • 4 x USB 2.0 Ports (Supports ESD Protection)
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jacks: Line in / Front Speaker / Microphone
    • Software and UEFI
    • Software
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock XFast LAN
    • UEFI
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock My Favorites in UEFI
    • ASRock Instant Flash
    • ASRock Internet Flash
    • *These utilities can be downloaded from ASRock Live Update & APP Shop.
    • Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

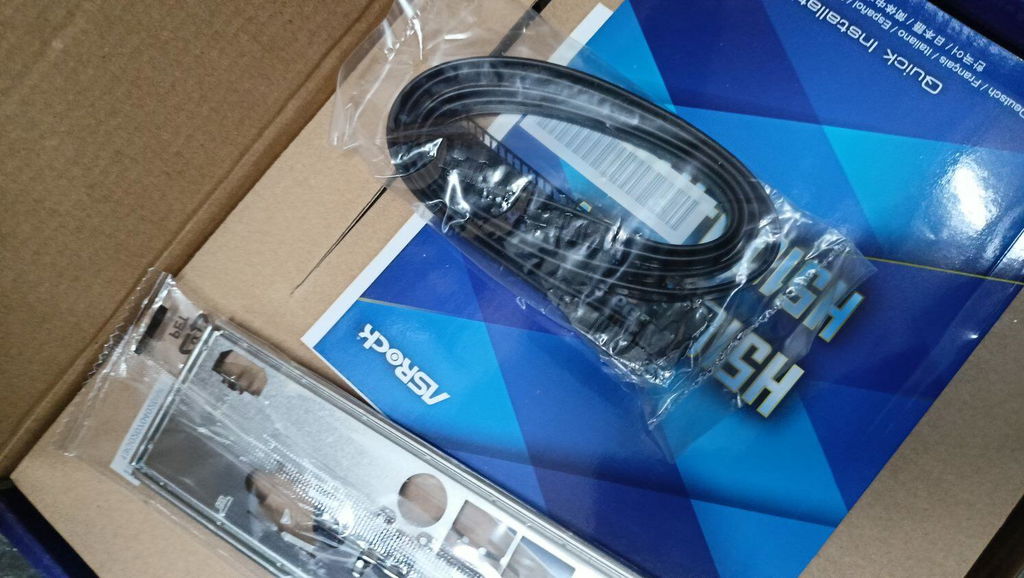

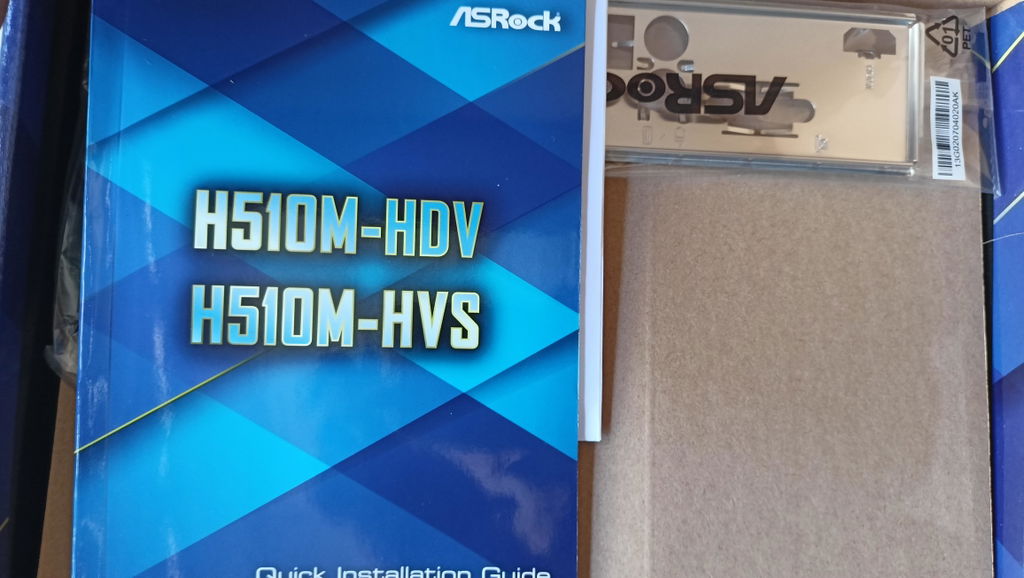

    • Accessories: Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
    • Hardware Monitor: Fan Tachometer: CPU, Chassis/Water Pump Fans
    • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
    • Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
    • CASE OPEN detection
    • Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
    • Form Factor: Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
    • Solid Capacitor design
    • OS: Microsoft® Windows® 10 64-bit / 11 64-bit
    • Certifications: FCC, CE
    • ErP/EuP ready (ErP/EuP ready power supply is required)
