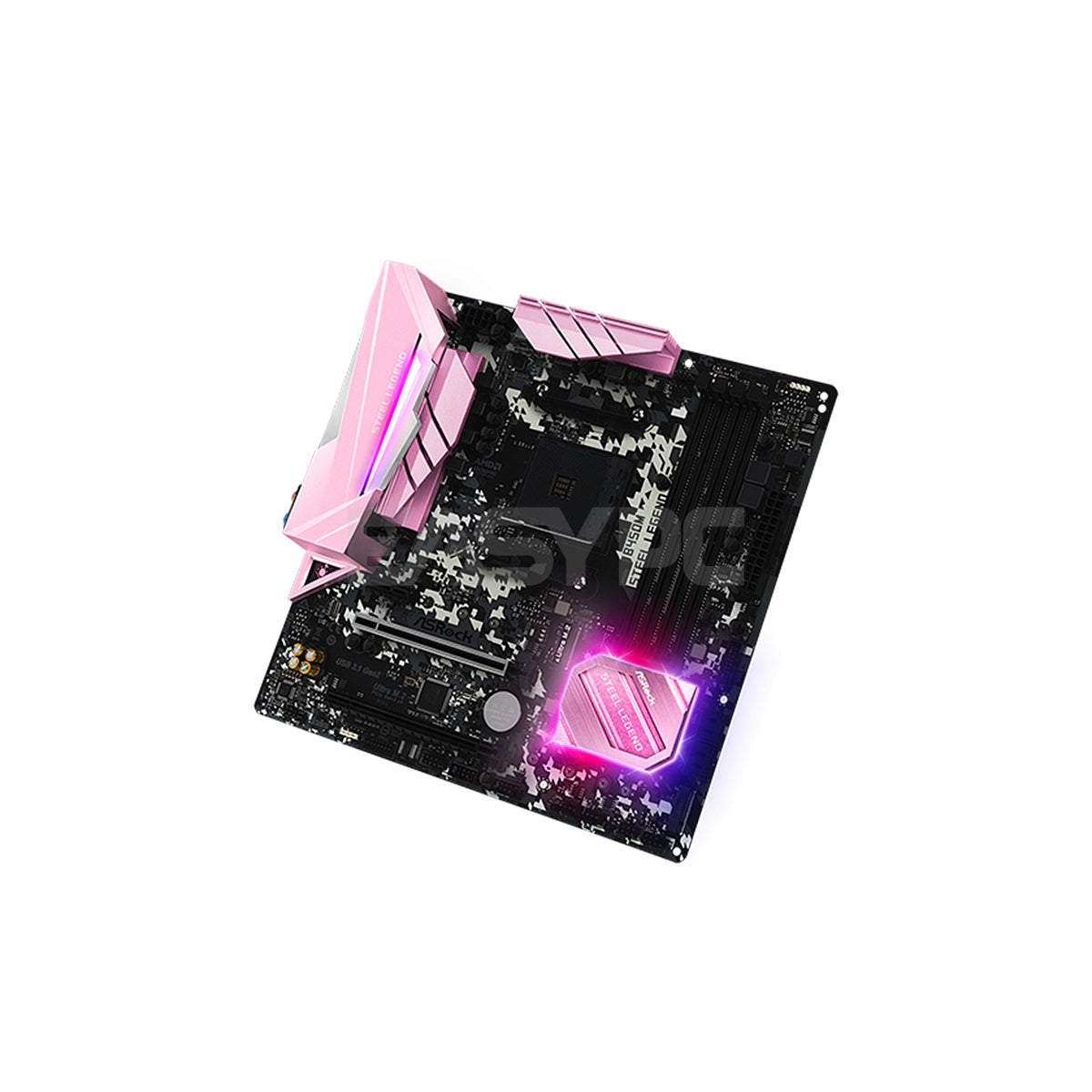

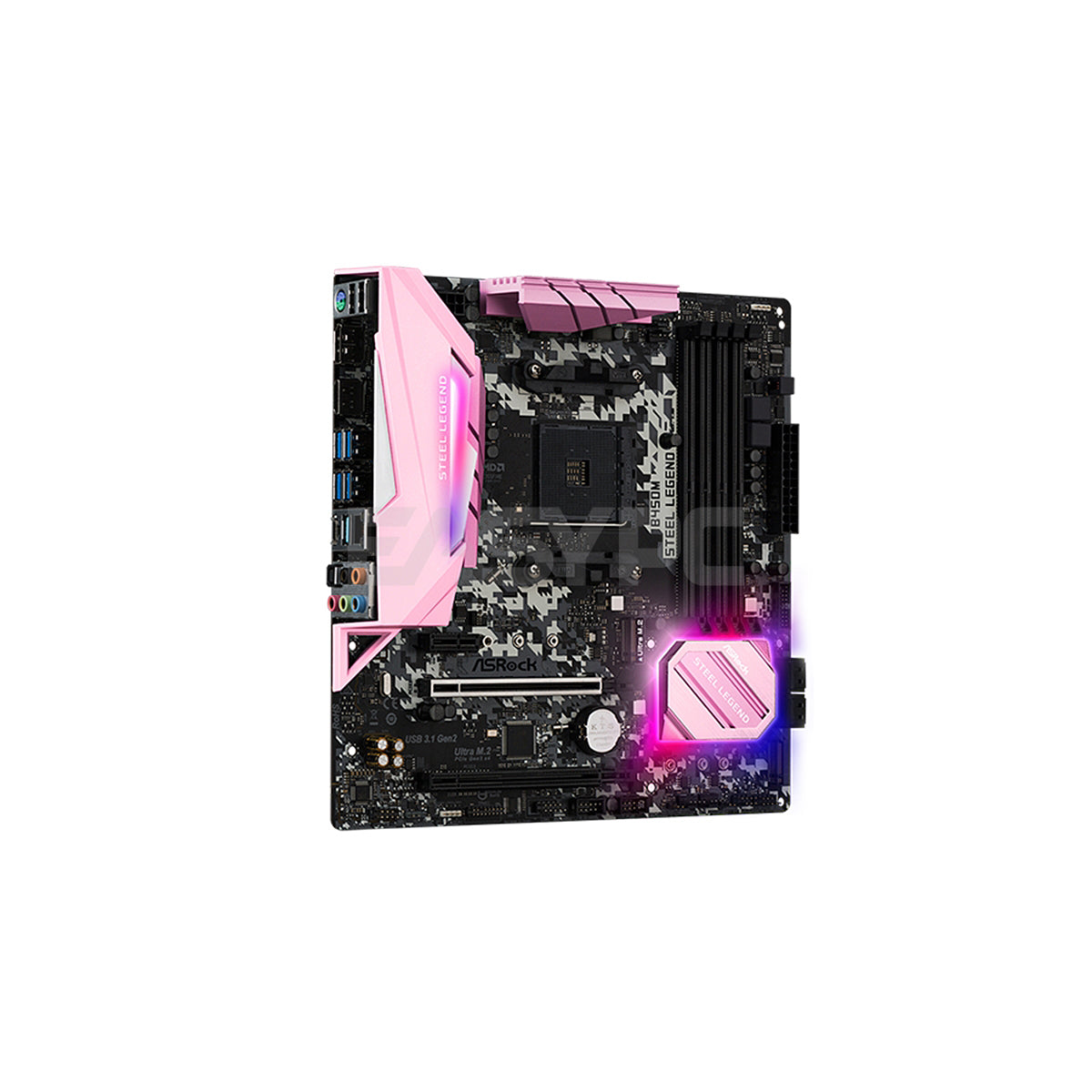

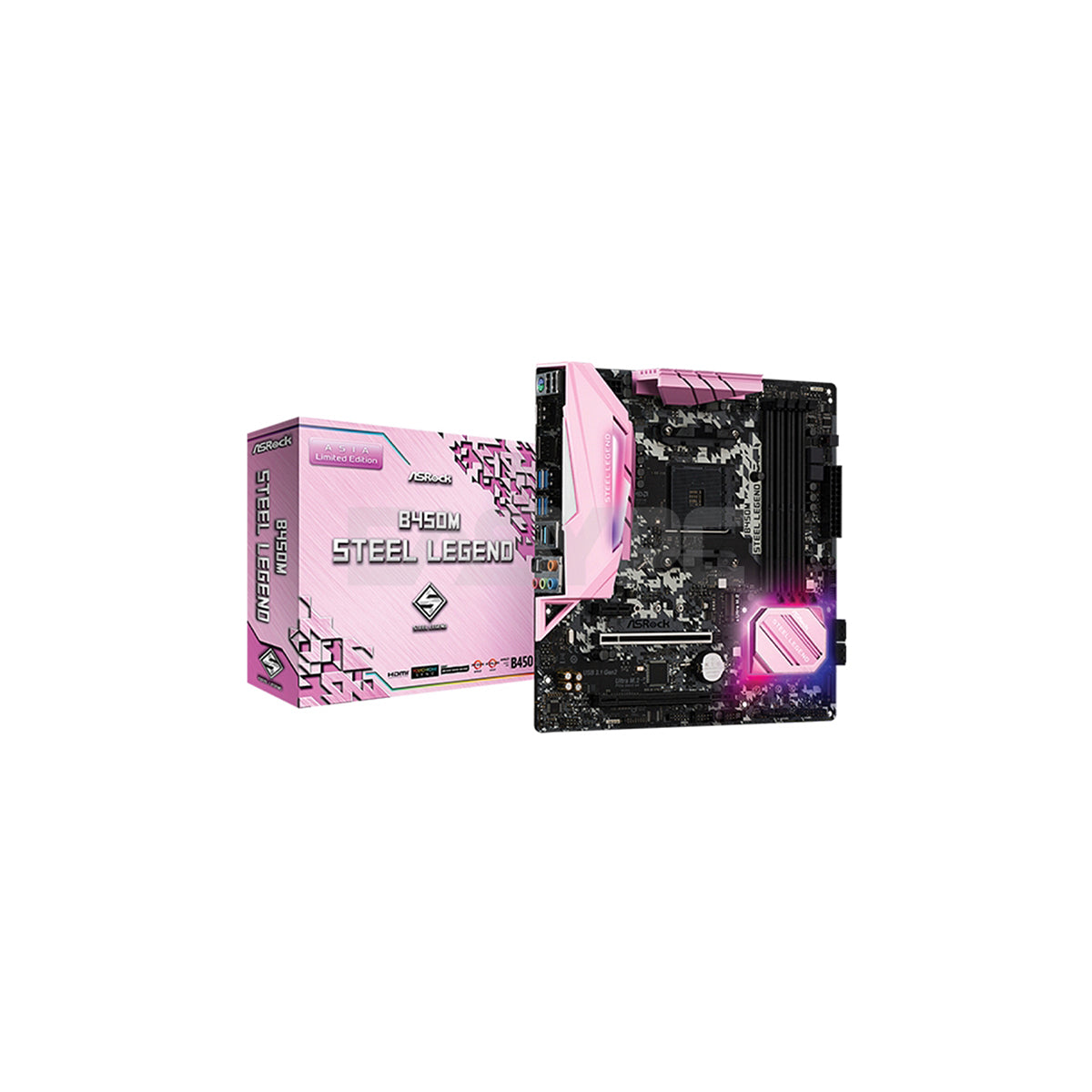

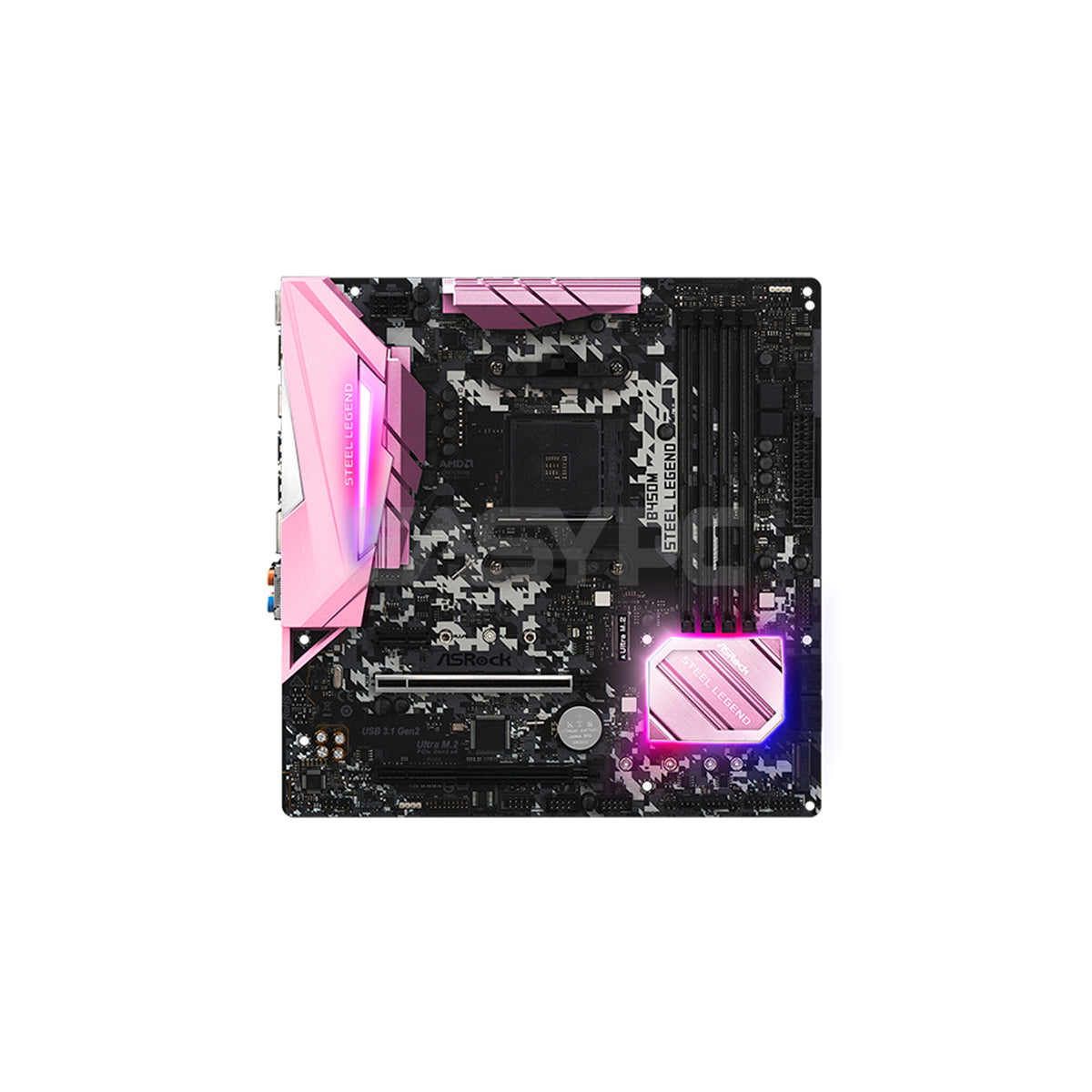

Asrock B450M Steel Legend Pink Edition Socket Am4 Ddr4 Gaming Motherboard

₱5,699.00

EasyPC Promo
Title

Delivery Options

Express Delivery - Php200.00 - Php250.00Same Day

Standard Delivery - Php0.00Est. 2-3 Days

Payment Options

Dragonpay

Cash on Delivery

Asrock B450M Steel Legend Pink Edition Socket Am4 Ddr4 Gaming Motherboard

Product Specifications

  • Brand: ASRock
  • Model: B450M Steel Legend
  • CPU Socket Type: AM4
  • CPU Type: Ryzen Series
  • Chipset: AMD Promontory B450
  • Number of Memory Slots: 4×288pin
  • Maximum Memory Supported: 64GB
  • Channel Supported: Dual Channel
  • PCI Express 3.0 x16: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
  • PCI Express 2.0 x16: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
  • PCI Express x1: 1 x PCI Express 2.0 x1 Slot
  • SATA 6Gb/s: 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
  • M.2: 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with Athlon series APU and Raven Ridge 2)**
  • Onboard Video Chipset: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*,
  • DirectX 12, Pixel Shader 5.0, Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  • Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
  • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24 Hz / (3840x2160) @ 30 Hz
  • Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60 Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  • Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
  • Audio Chipset: Realtek ALC892/897 Audio Codec
  • Audio Channels: 7.1 CH HD Audio with Content Protection,Supports Surge Protection
  • LAN Chipset: Realtek RTL8111H
  • Max LAN Speed: 10/100/1000Mbps
  • Form Factor: Micro ATX
  • LED Lighting: RGB
  • Dimensions (W x L): 9.6" x 9.6"
  • Power Pin: 1 x 24-pin ATX Power Connector, 1 x 8-pin 12V Power Connector
  • Onboard USB: 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
