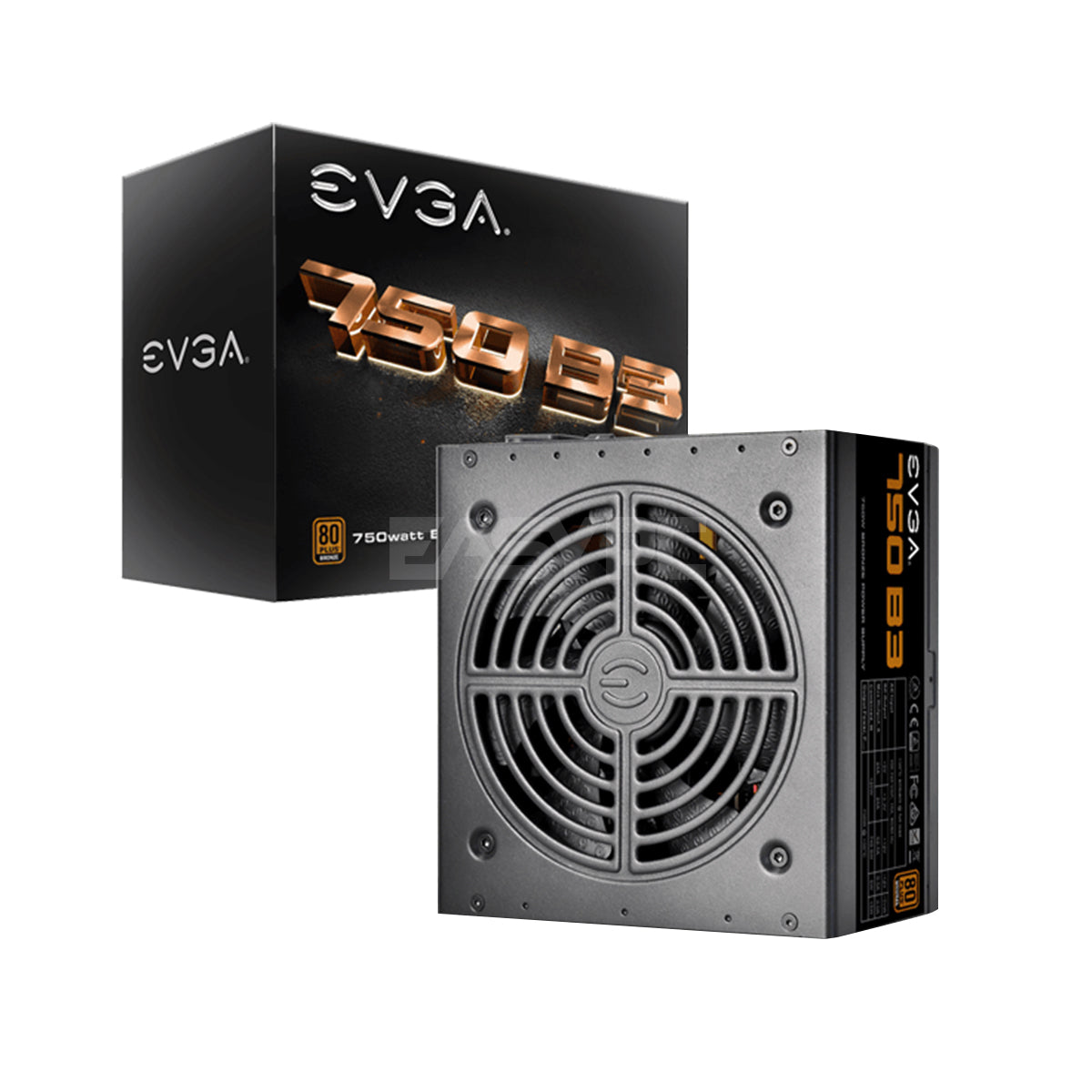

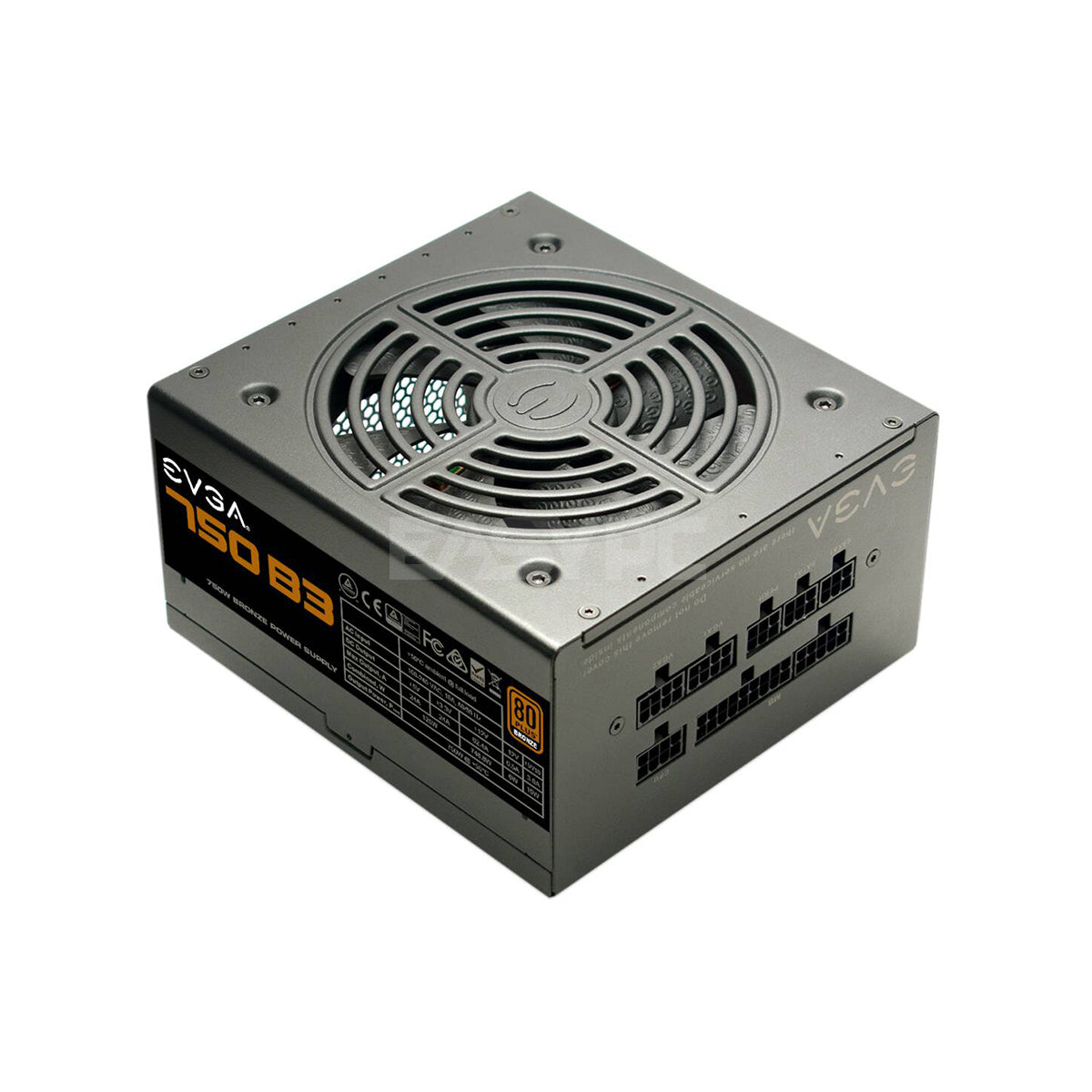

EVGA B3 750W 80+ Fully Modular Power Supply Bronze
-
BrandEvga

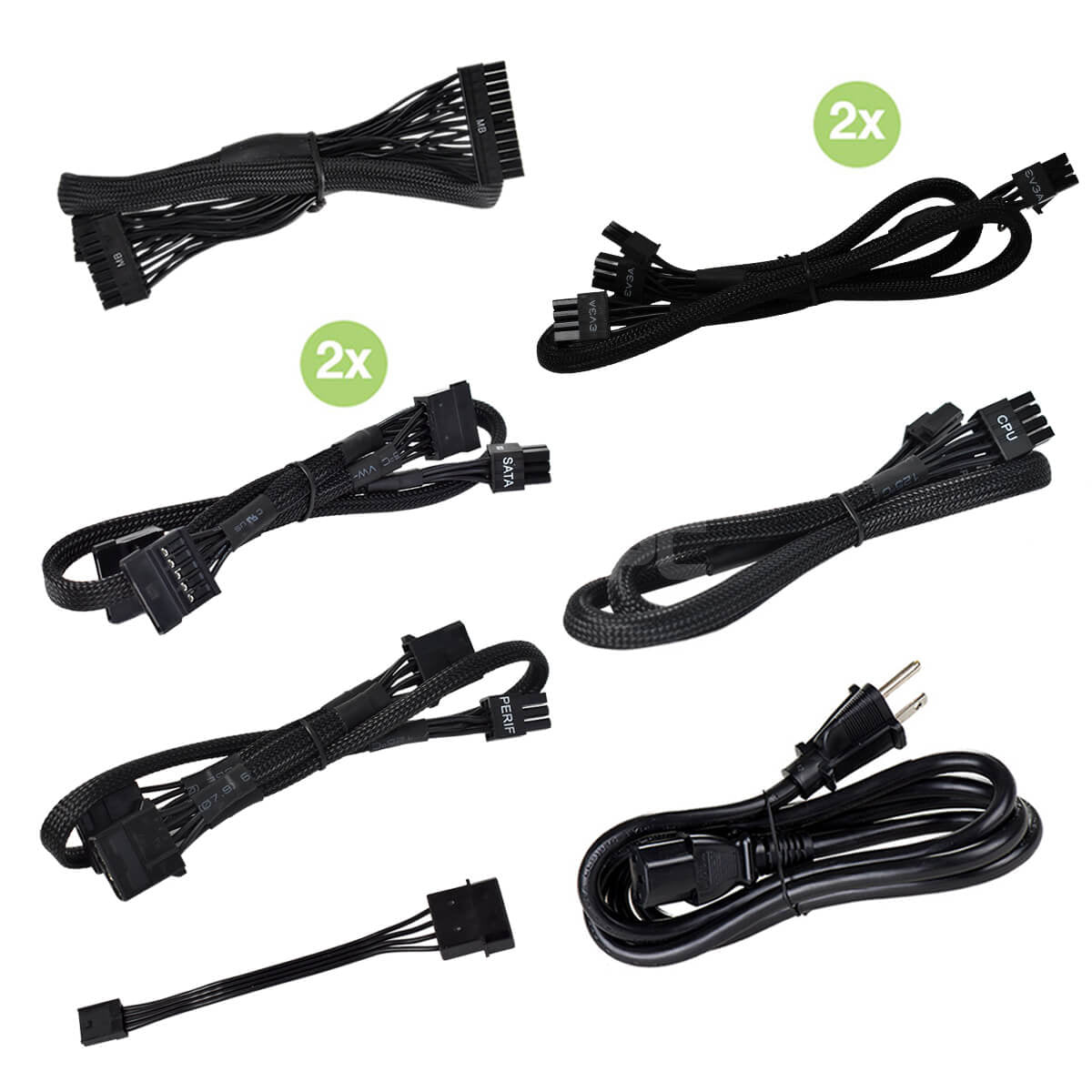

Cable Length
ATX Cable 1x 600mm (m)
EPS Cable 1x 600mm (m)
PCIe Cable 2x 550mm, 700mm (m)
SATA Cable 2x 500mm, 600mm, 700mm (m)
Four-Pin Peripheral Cable 1x 500mm, 600mm, 700mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full
Connector Quantity
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIe 4x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x

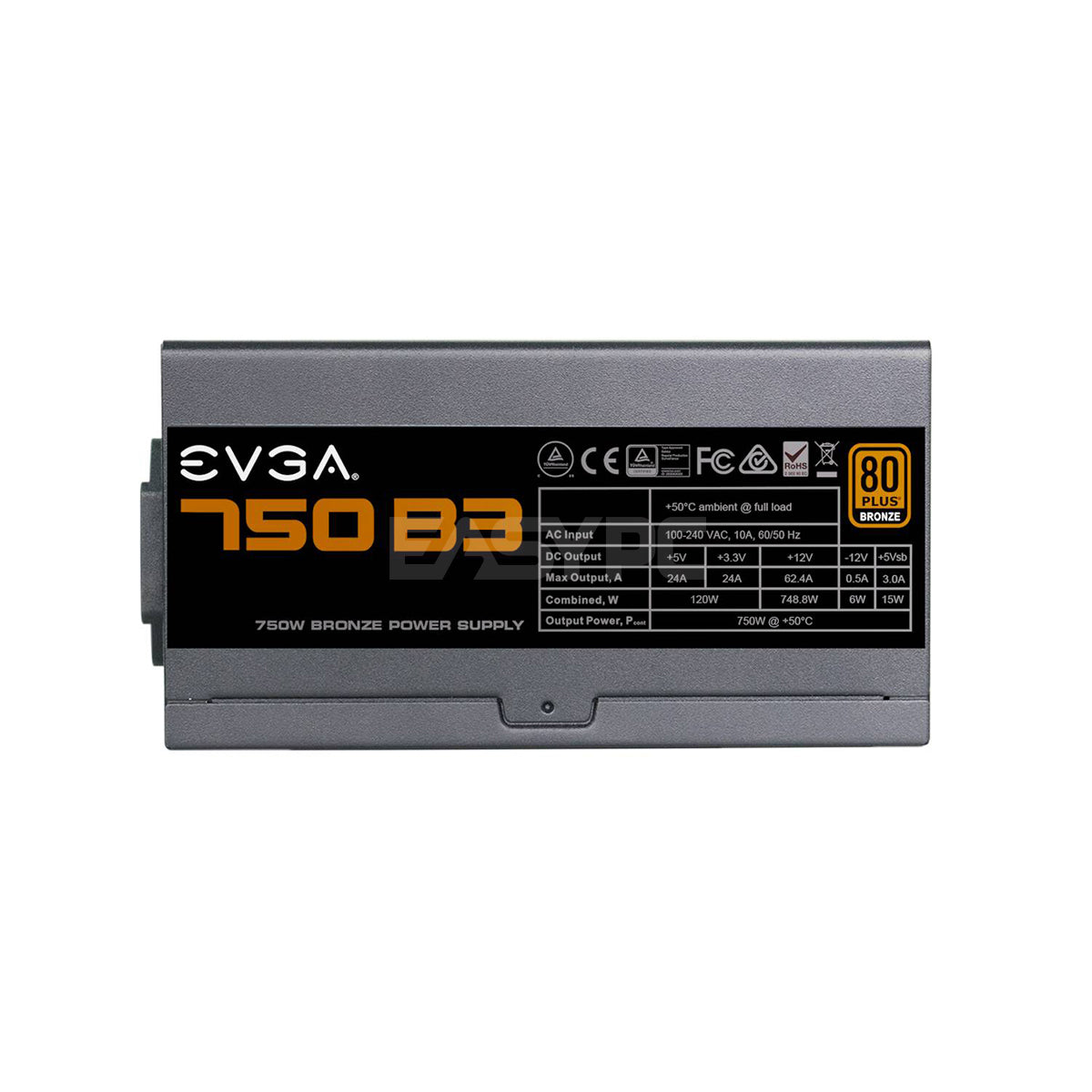

Power Specs
AC Input 100 - 240 VAC, 10A, 50 - 60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 24A 24A 62.4A 3.0A 0.5A
748.8W
120W 748.8W 15W 6W
Total 750W @ +50C
Additional Details
Operating Temperature 0 to 50 C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 5 lbs
Size 85mm (H) x 150mm (W) x 160mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 130mm Long Life Sleeve Bearing
Ideal For
- Powering custom-built desktop PCs
- System upgrades and new builds
- Replacing an existing power supply unit
