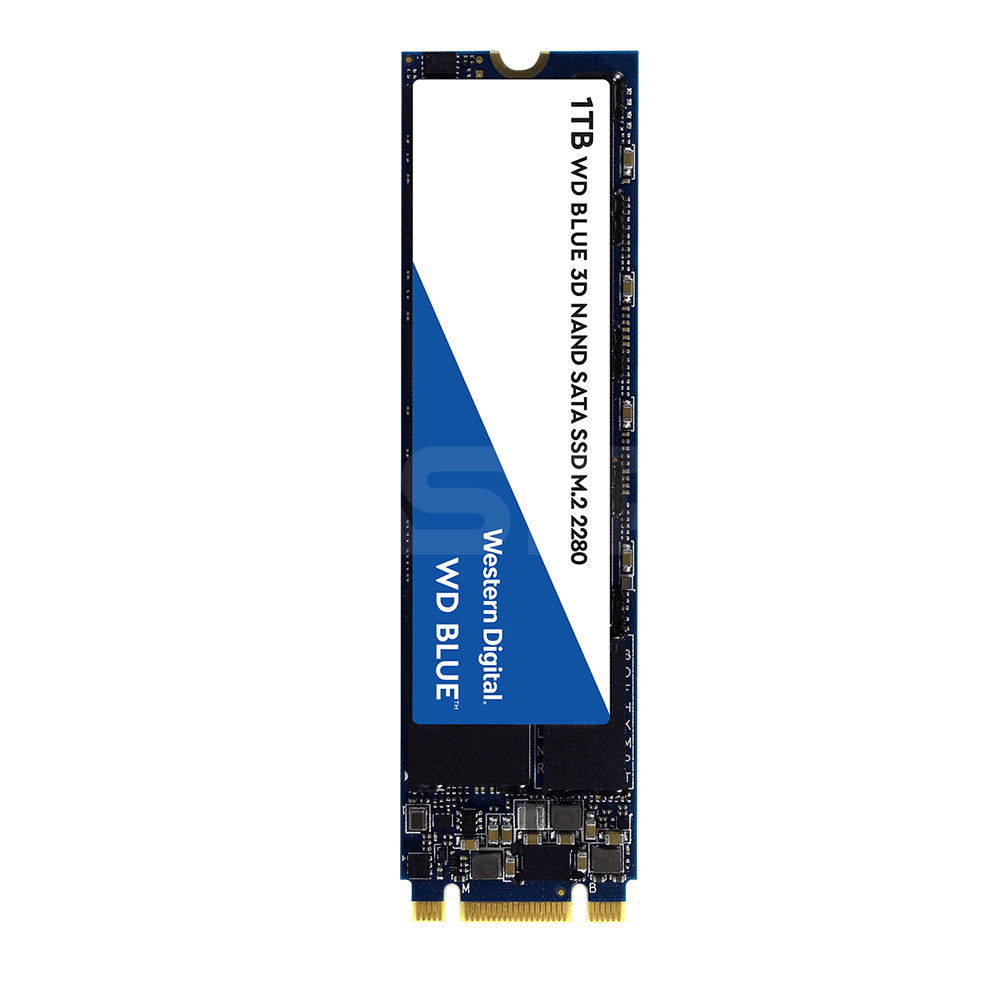

Western Digital Solid State Drive 1Tb Blue M.2 SATA

ITEM IN STOCK

₱7,200.00
Specifications:

Specifications

250GB

500GB

1TB

Interface4

PCIe Gen3 8Gb/s, up to 4 Lanes

PCIe Gen3 8Gb/s, up to 4 Lanes

PCIe Gen3 8Gb/s, up to 4 Lanes

Formatted Capacity1

250GB

500GB

1TB
Performance5

Sequential Read MB/s up to (Q=32, T=1)

2,400

2,400

2,400

Sequential Write MB/s up to (Q=32, T=1)

950

1750

1950

Random Read 4KB IOPS up to (Q=32, T=8)

170K

300K

410K

Random Write 4KB IOPS up to (Q=32, T=8)

135K

240K

405K

Endurance (TBW)7

150TBW

300TBW

600TBW
Power

Average Active Power (mW)9

75mW

75mW

75mW

Low Power (PS3) (mW)

20

20

20

Maximum Operating Power

3.5W

3.9W

4.9W

Sleep (PS4) (low power)

5mW

5mW

5mW
Reliability

MTTF10

1.7M hours

1.7M hours

1.7M hours
Environmental

Operating Temperature11

32F to 158F (0C to 70C)

32F to 158F (0C to 70C)

32F to 158F (0C to 70C)

Non-operating Temperature

-67F to 185F (-55C to 85C)

-67F to 185F (-55C to 85C)

-67F to 185F (-55C to 85C)

Non-Operating Vibration12

4.9 gRMS, 7-800 Hz, 3 axes

4.9 gRMS, 7-800 Hz, 3 axes

4.9 gRMS, 7-800 Hz, 3 axes

Operating Vibration

5 gRMS, 10-2000 Hz, 3 axes

5 gRMS, 10-2000 Hz, 3 axes

5 gRMS, 10-2000 Hz, 3 axes

Maximum Operating Power

3.5W

3.9W

4.9W

Shock

1,500G @0.5 ms half sine

1,500G @0.5 ms half sine

1,500G @0.5 ms half sine

Certifications

UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B)

UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B)

UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B)
Physical Dimensions M.2 2280

Form Factor

M.2 2280

M.2 2280

M.2 2280

Length

80 0.15mm

81 0.15mm

82 0.15mm

Width

22 0.15mm

22 0.15mm

22 0.15mm

Height

2.38mm

2.38mm

2.38mm

Weight

6.5g + 1g

6.5g + 1g

6.5g + 1g
Ordering Information3

250GB

WDS250G2B0C

500GB

WDS500G2B0C

1TB

WDS100T2B0C
