HARDWARE FEATURES
Interface USB 3.0
Button WPS button
Dimensions ( W x D x H ) 3.641.240.55 in. (92.4731.5513.9mm)
Antenna 2 High Gain External Antennas
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz?
11a 6Mbps: -91dBm
11a 54Mbps: -77dBm
11nHT20?-74dBm
11nHT40?-71dBm
11ac HT20: -70dBm
11ac HT40: -66dBm
11ac HT80: -62dBm
2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -74dBm
11n HT20: -72dBm
11n HT40: -70dBm
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification CE, FCC, RoHS

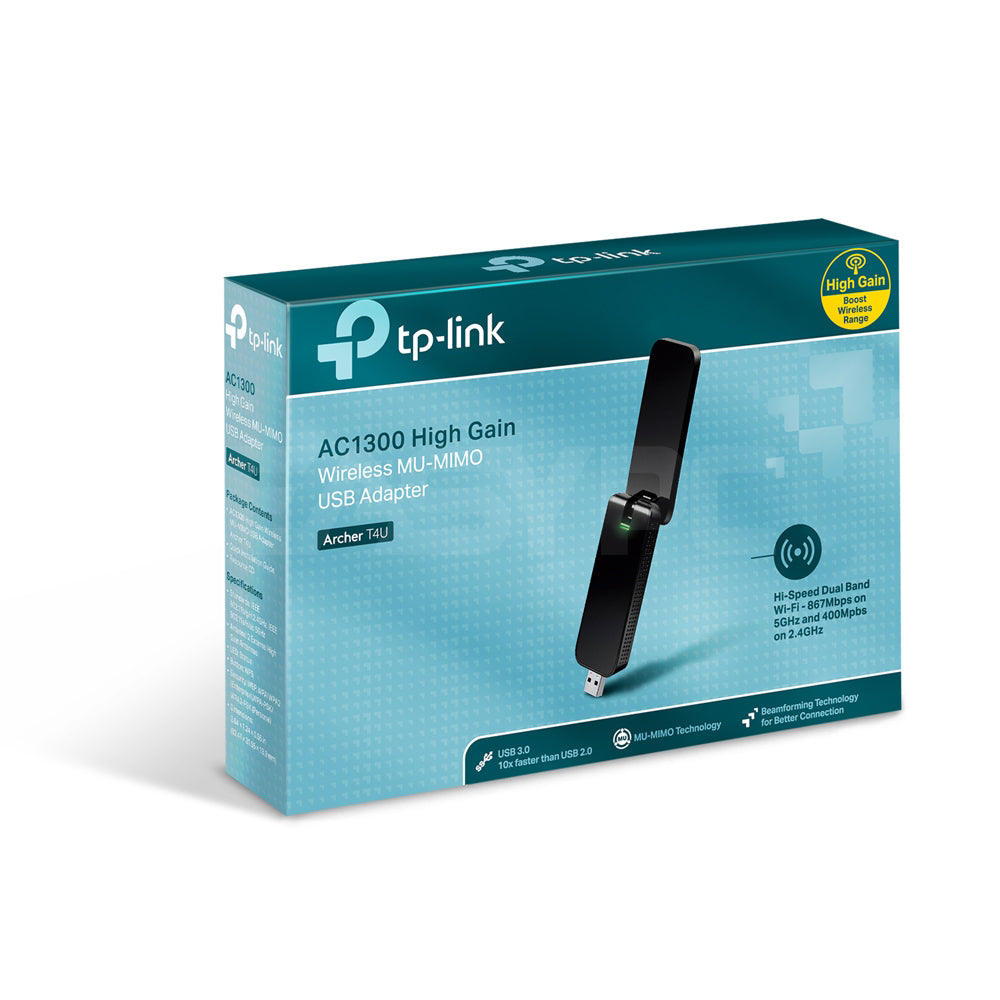

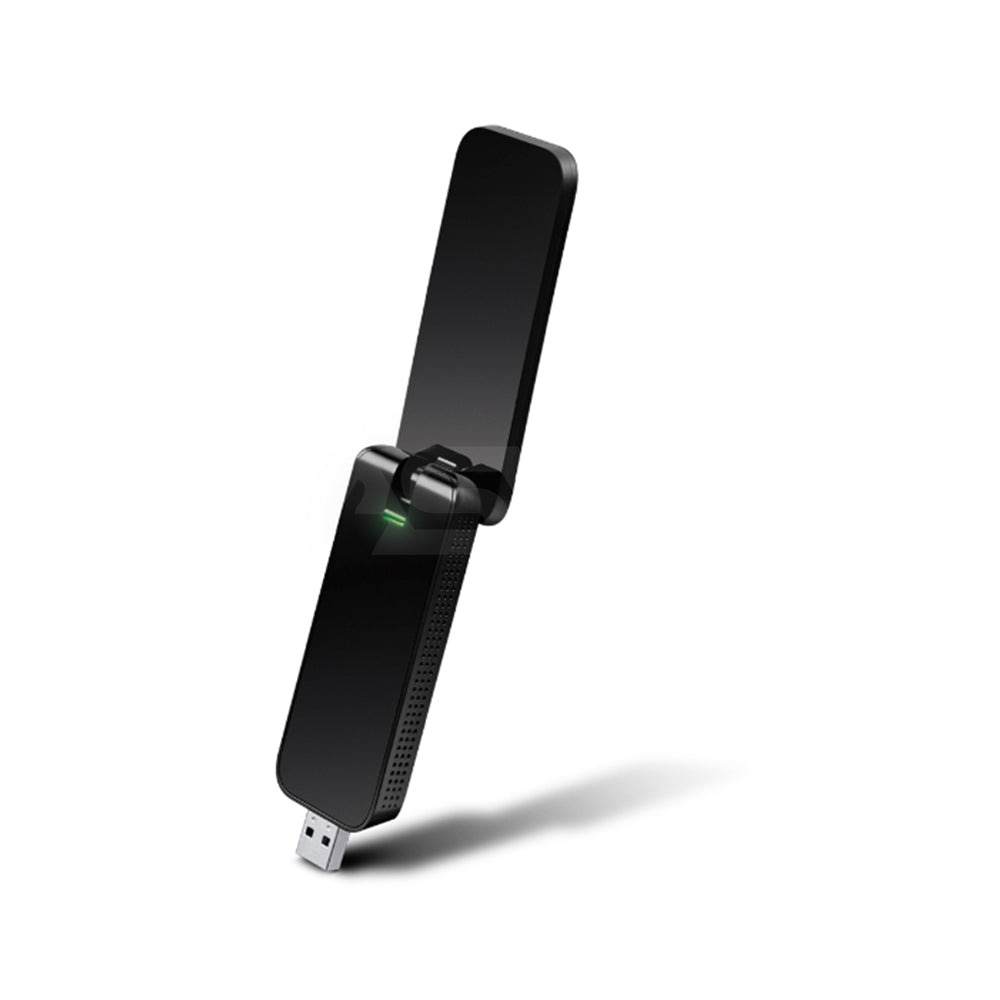

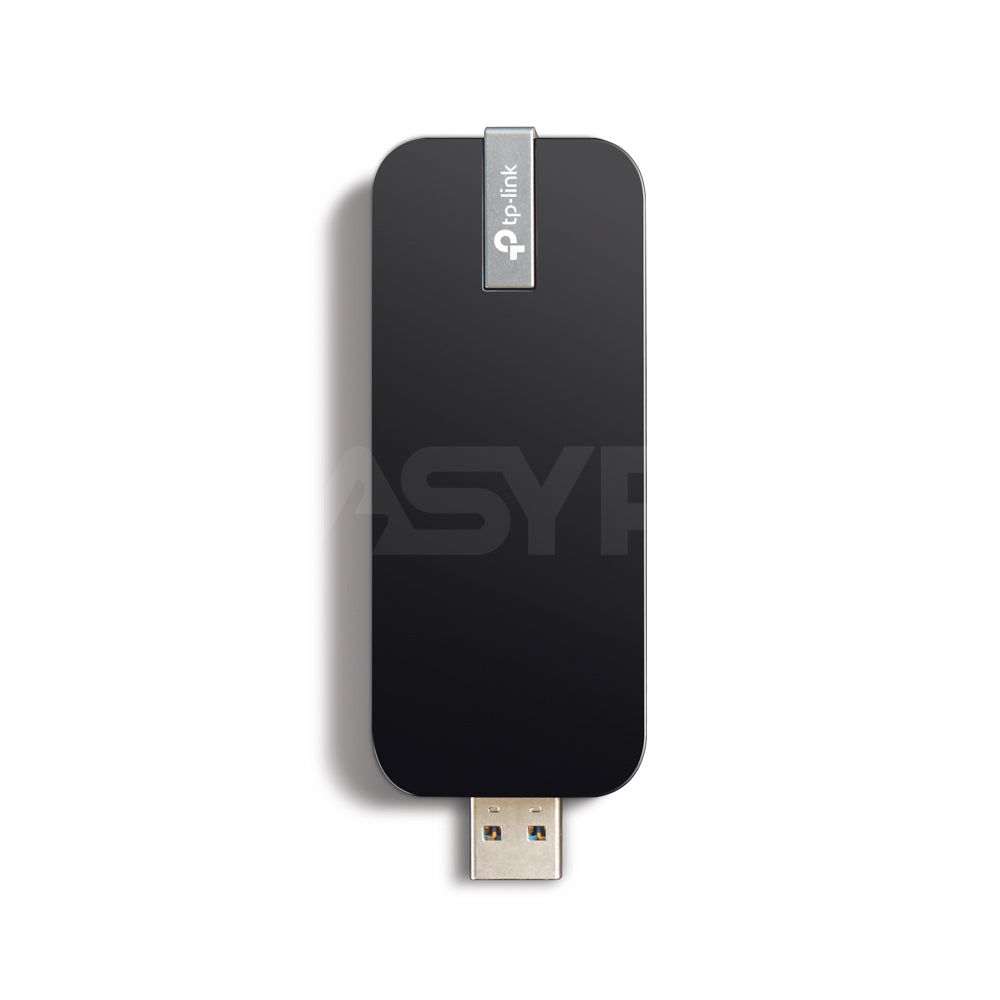

AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U
Quick Installation Guide
Resource CD
System Requirements Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.13
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Ideal For
- Home and office networking
- Expanding internet connectivity
- Setting up Wi-Fi coverage in larger spaces
