Gigabyte B560M GAMING HD Socket LGA 1700 Ddr4 Motherboard
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
GIGABYTE

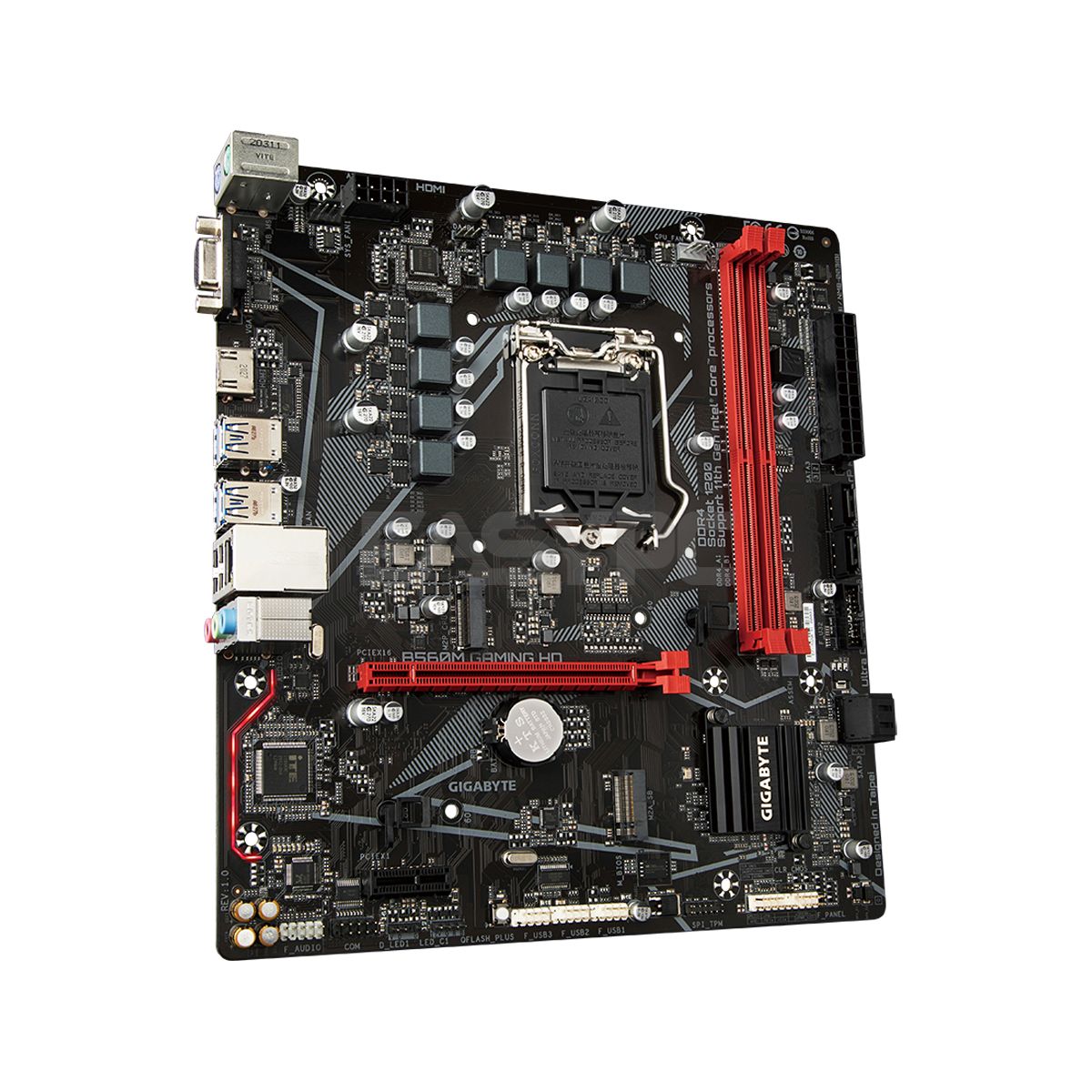

Gigabyte B560M GAMING HD Socket LGA 1700 Ddr4 Motherboard

Available:Out of Stock
    ₱4,845.00
    Delivery Options
    • Nationwide Delivery
    • Express Deliver - Metro Manila
    • Same Day Delivery - Metro Manila and nearby areas
    Payment Options
    • cash-on-delivery
    • 7eleven
    • gcredit
    • GCash
    • BillEase
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard
    Warranty

    7 Days Outright Replacement

    1 Year Warranty

    Gigabyte B560M GAMING HD Socket LGA 1700 Ddr4 Motherboard

    Product Specifications

    • Chipset
    • Intel® B560 Express Chipset
    • Memory
    • 11th Generation Intel® Core™ i9/i7/i5 processors:
    • Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    • 10th Generation Intel® Core™ i9/i7 processors:
    • Support for DDR4 2933/2666/2400/2133 MHz memory modules
    • 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    • Support for DDR4 2666/2400/2133 MHz memory modules
    • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    • * Support for HDMI 2.0 version and HDCP 2.3.
    • (Graphics specifications may vary depending on CPU support.)
    • Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channe
    • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    • LAN
    • Realtek® GbE LAN chip (1 Gbit/100 Mbit)
    • Expansion Slots
    • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    • (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
    • 1 x PCI Express x1 slot (PCIEX1)
    • (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
    • Storage Interface
    • CPU:
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
    • Chipset:
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    • 4 x SATA 6Gb/s connectors
    • Intel® Optane™ Memory Ready
    • * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
    • USB
    • Chipset:
    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Chipset+USB 2.0 Hub:
    • 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
    • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 1 x system fan header
    • 1 x addressable LED strip header
    • 1 x RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 3 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x Clear CMOS jumper
    • 1 x Q-Flash Plus button
    • Back Panel Connectors
    • 1 x PS/2 mouse port
    • 1 x PS/2 Keyboard port
    • 1 x D-Sub port
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 2 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
    • I/O Controller
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Fan fail warning
    • Fan speed control
    • * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
