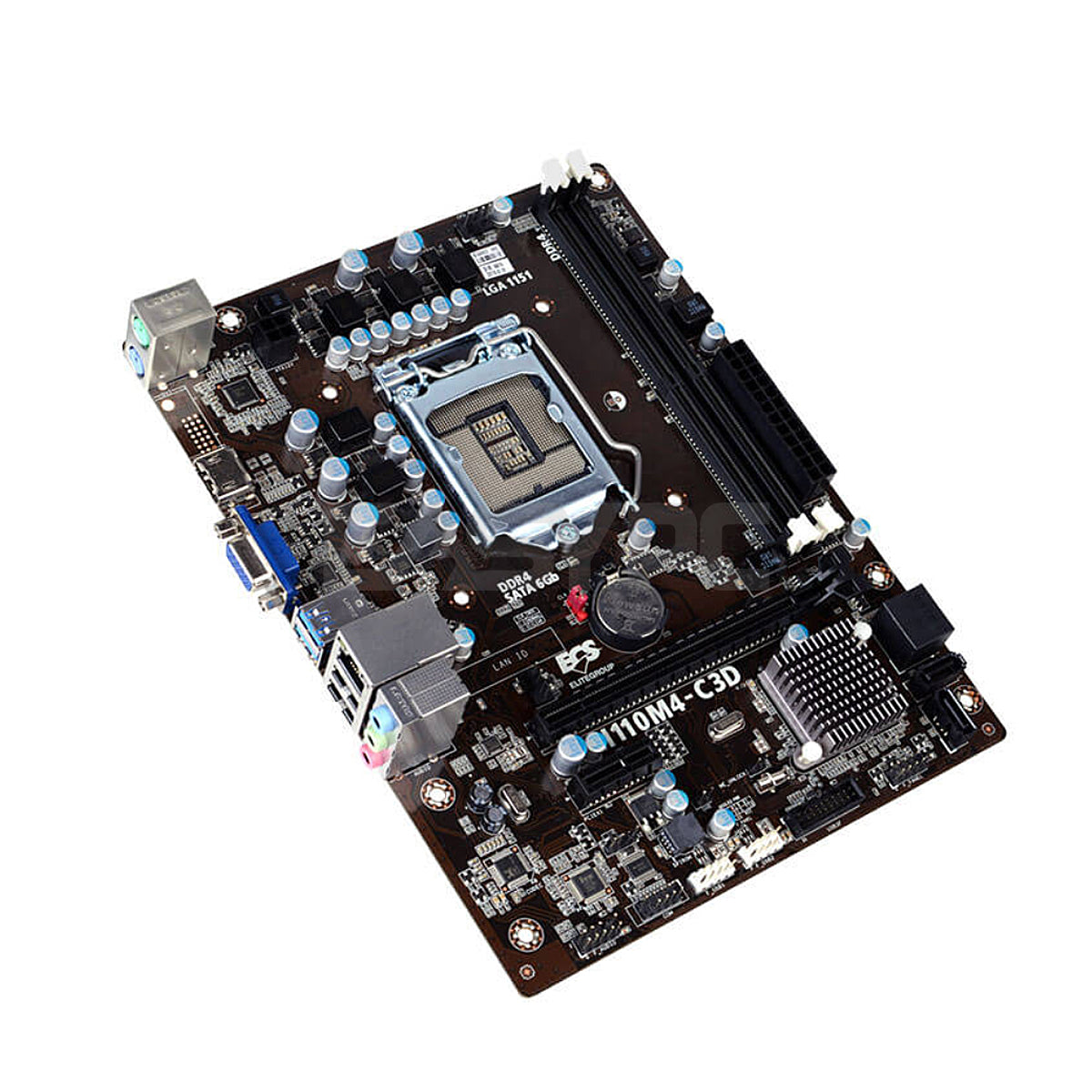

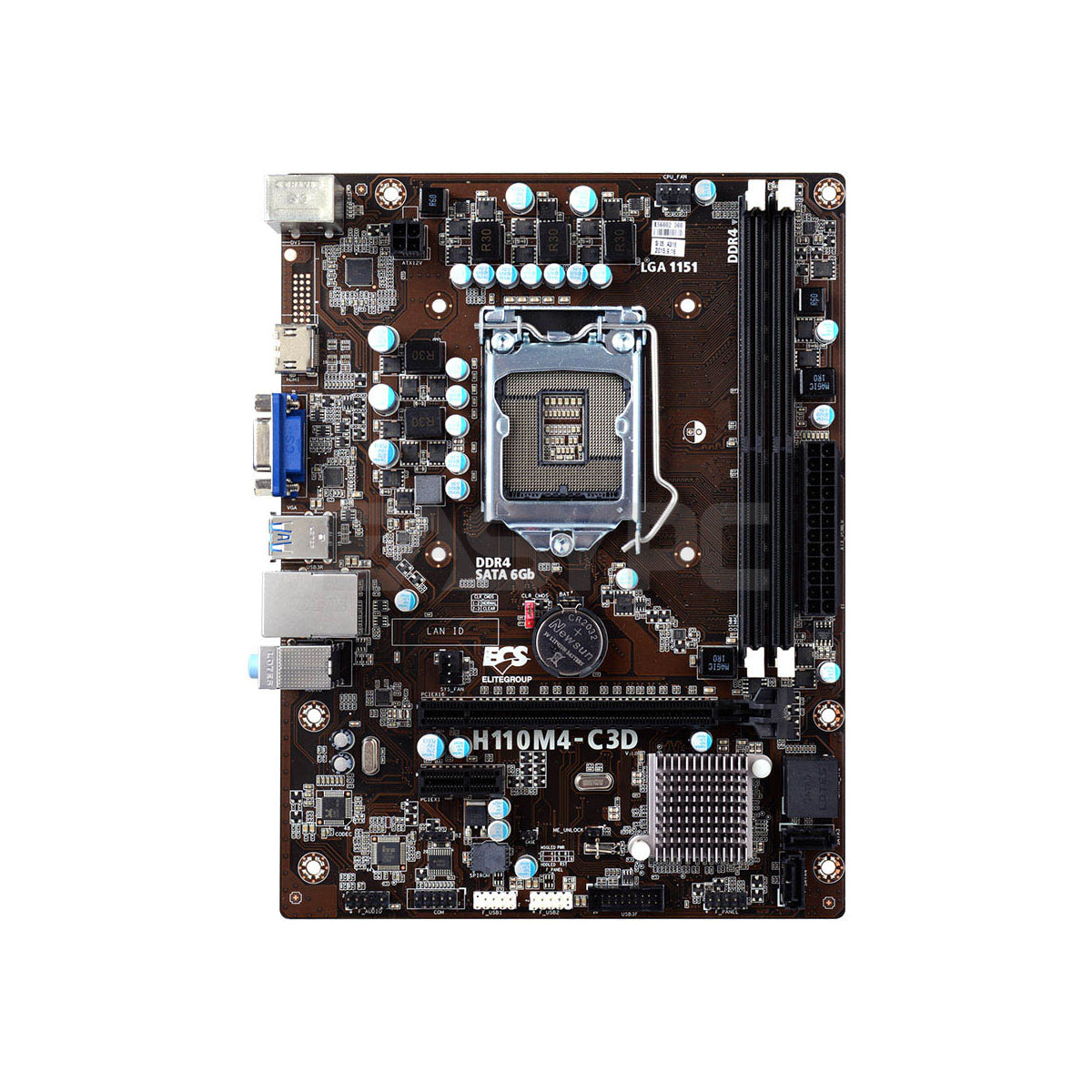

ECS H110M4 C3D Motherboard Socket 1151 Ddr4

ITEM IN STOCK

₱2,750.00
Specifications:

CPU

Supports 7th gen Intel Core family/ Pentium / Celeron series processors for LGA 1151 socket
Supports 6th gen Intel Core family/ Pentium / Celeron series processors for LGA 1151 socket
Solid Capacitor for CPU side
Please refer to CPU support list for details

CHIPSET

Intel H110 Express Chipset

GRAPHICS

Supports DirectX 12

MEMORY

Dual-channel DDR4 Memory architecture
Supports DDR4 2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 32 GB*
Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)

Storage

Support by H110 Express Chipset
4 X Serial ATAIII 6Gb/s

Audio

6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC

LAN

Realtek 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN

USB

Support by H110 Express Chipset
4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
Back Panel 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)

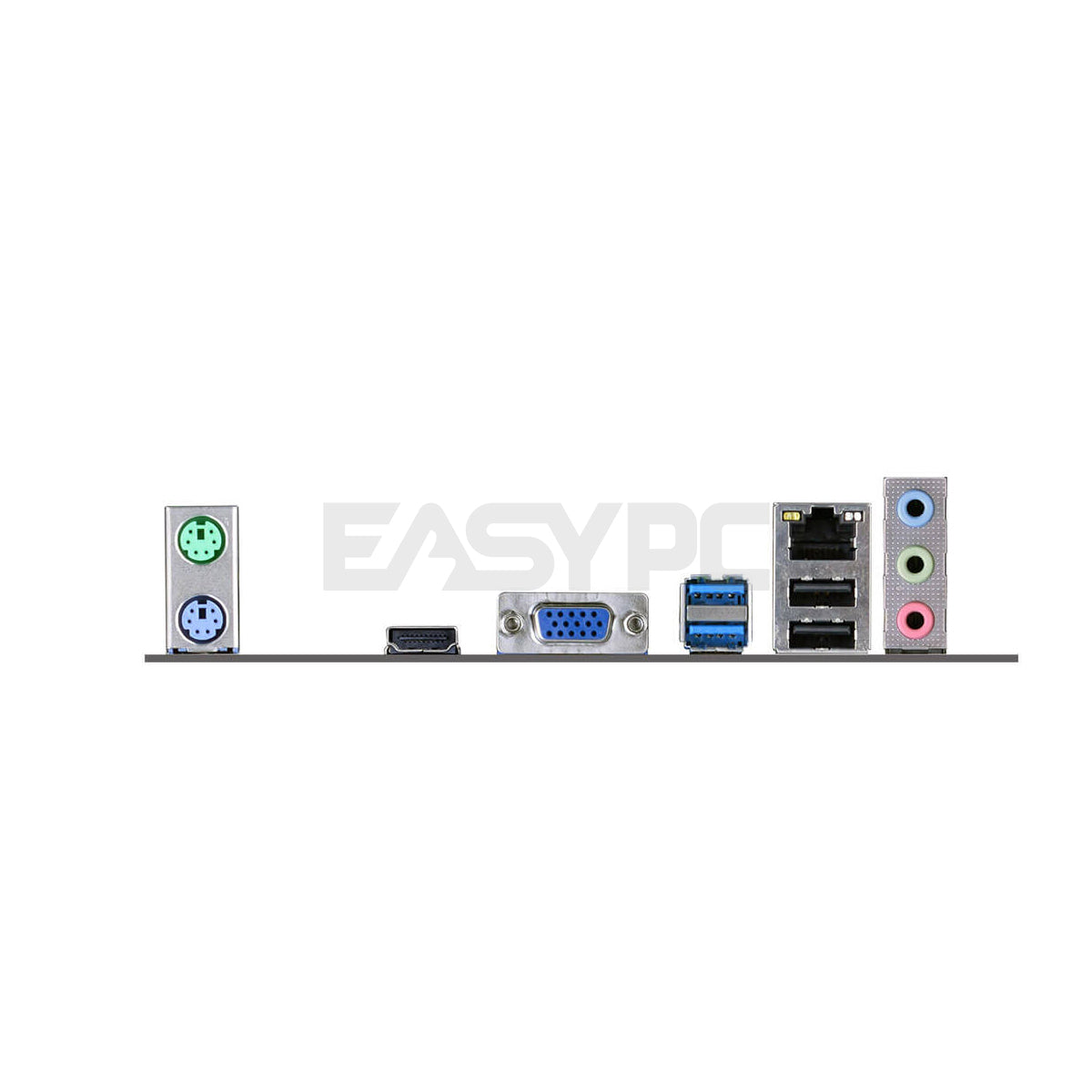

REAR PANEL I/O

1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
2 X USB 3.2 Gen 1x1 port(s)
2 X USB2.0 port(s)

CONNECTORS & HEADERS

1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X Front panel audio header
1 X USB 3.2 Gen 1x1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 4 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)

SYSTEM BIOS

AMI BIOS with 64 MB SPI Flash ROM
ACPI & DMI
Dual Display
Support GUI UEFI BIOS
Multi-Language BIOS

FORM FACTOR

mATX Form Factor
225mm x 170mm

OS Support

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 64-bit
Windows 10 64-bit
* Intel 7th Generation CPUs support Windows 10 64bit only

Certifications

CE/FCC Certification
ErP/EuP Certification
WHQL Certification
WHCK Certification
