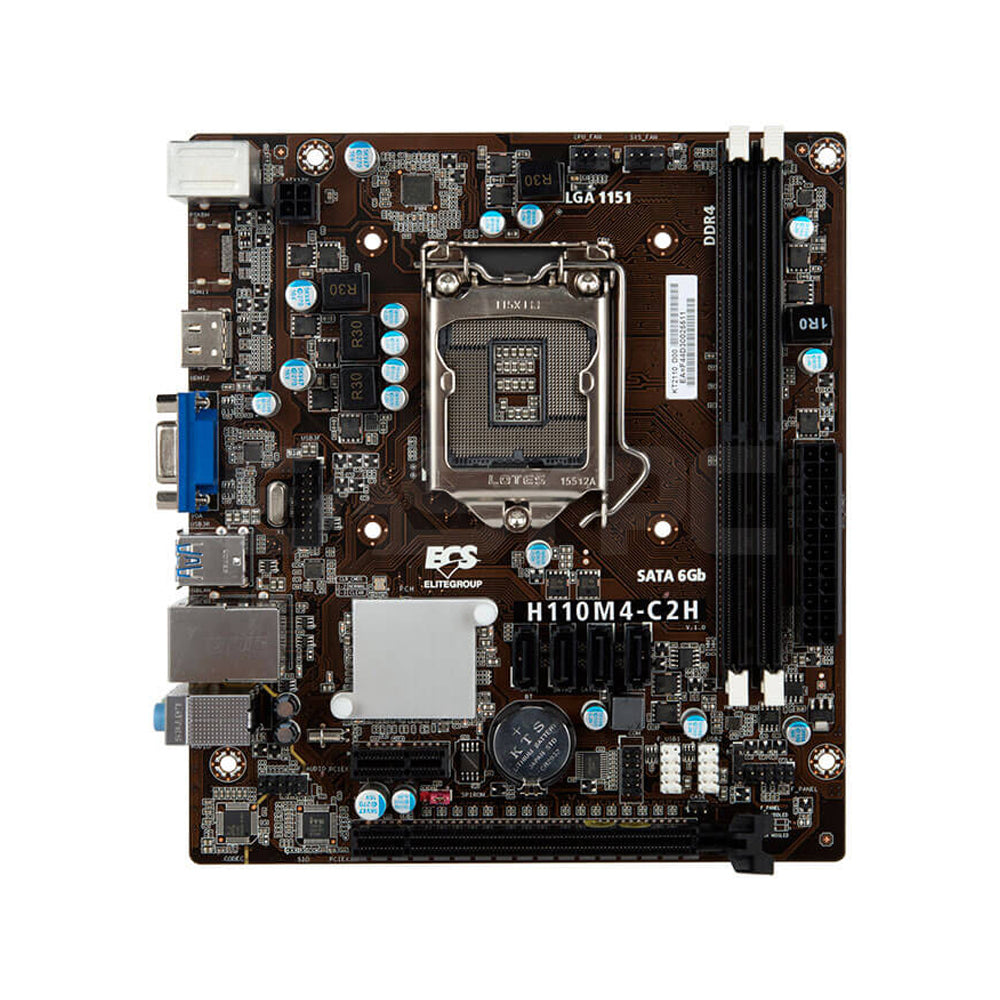

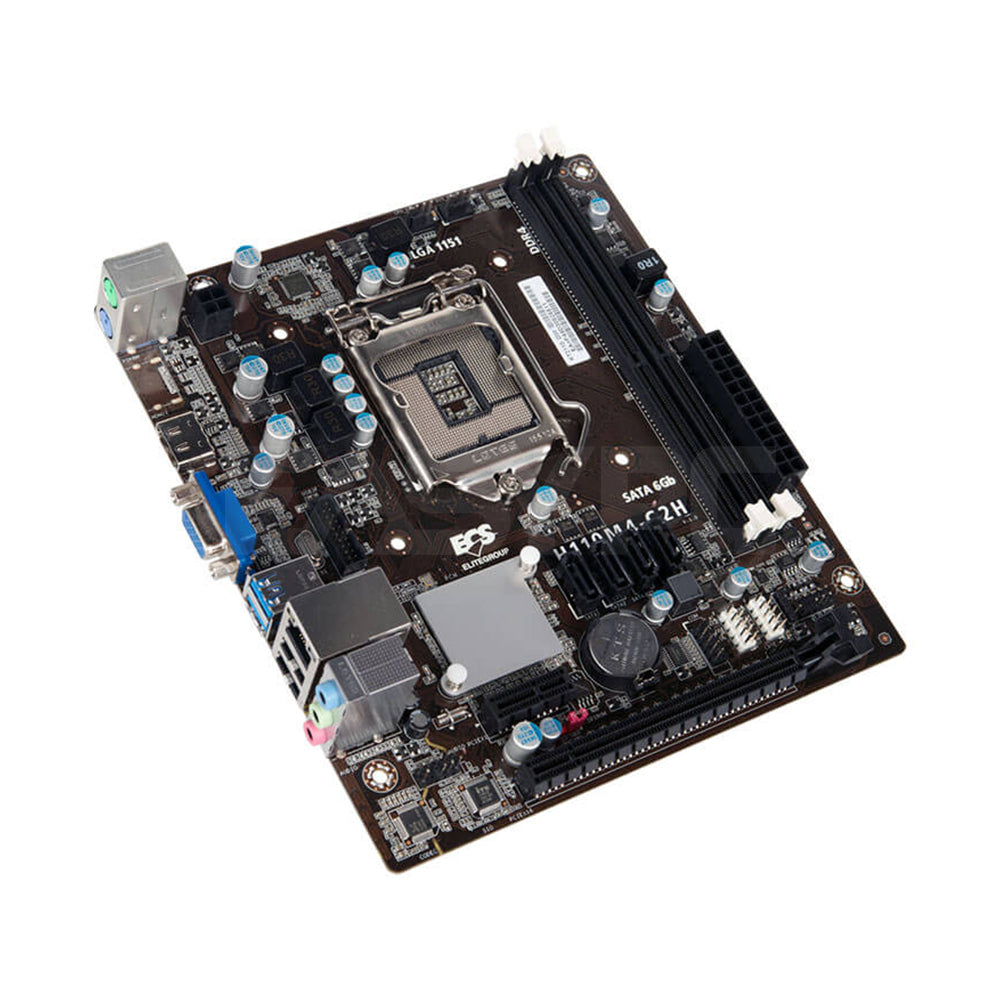

ECS H110M4 C2H Motherboard Socket 1151 Ddr4

Product Specifications

• Supports 7th gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
• Supports 6th gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
• 100% Solid capacitor design
• Please refer to CPU support list for details
• Supports DirectX® 12
• Intel® H110 Express Chipset
• Dual-channel DDR4 Memory architecture
• Supports DDR4 2400 non-ECC, Un-buffered SDRAM Memory
• 2 X 288-pin DDR4 DIMM socket
• Support up to 32 GB*
• 1 X PCI Express X16 Gen 3.0 slot(s)
• 1 X PCI Express X 1 Gen 2.0 slot(s)
• Support by H110 Express Chipset
• 4 X Serial ATAIII 6Gb/s
• 6-Channel HD audio CODEC
• Realtek ALC662 6-channel High Definition audio CODEC
• Realtek 8111H Gigabit Fast Ethernet Controller
• Wake-On-LAN
• 1 X PS/2 Keyboard & PS/2 mouse connectors
• 1 X Audio port (Line Out/Line In/Mic In)
• 1 X RJ-45 port
• 1 X HDMI port(s)
• 1 X D-Sub (VGA) port(s)
• 2 X USB 3.2 Gen 1x1 port(s)
• 2 X USB2.0 port(s)
