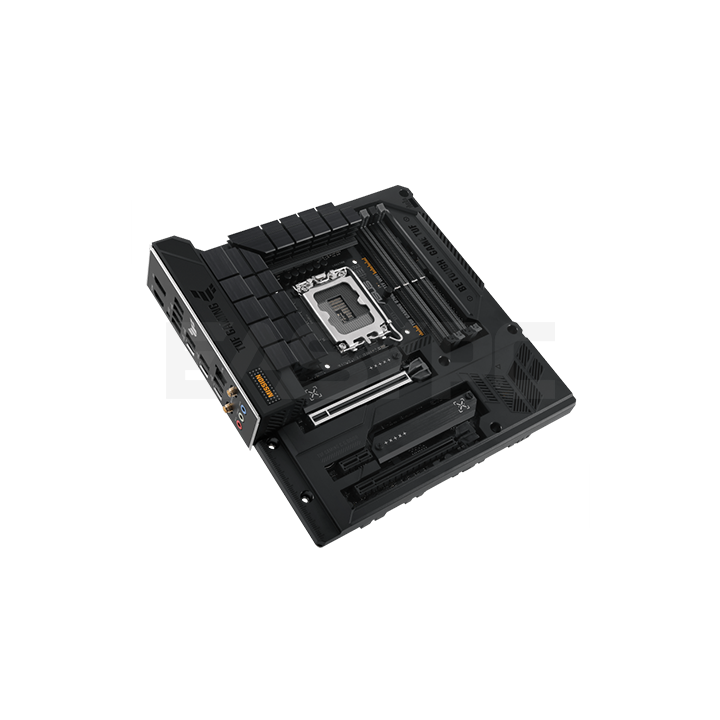

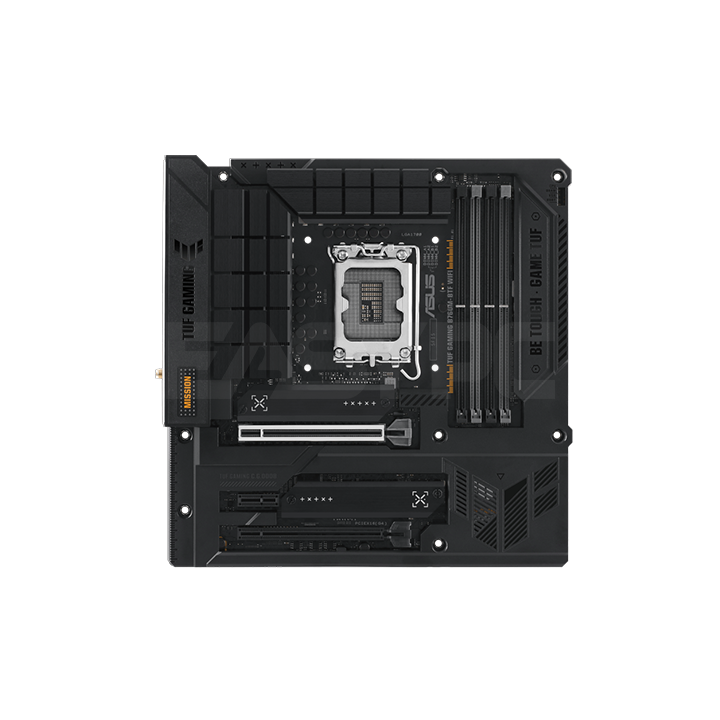

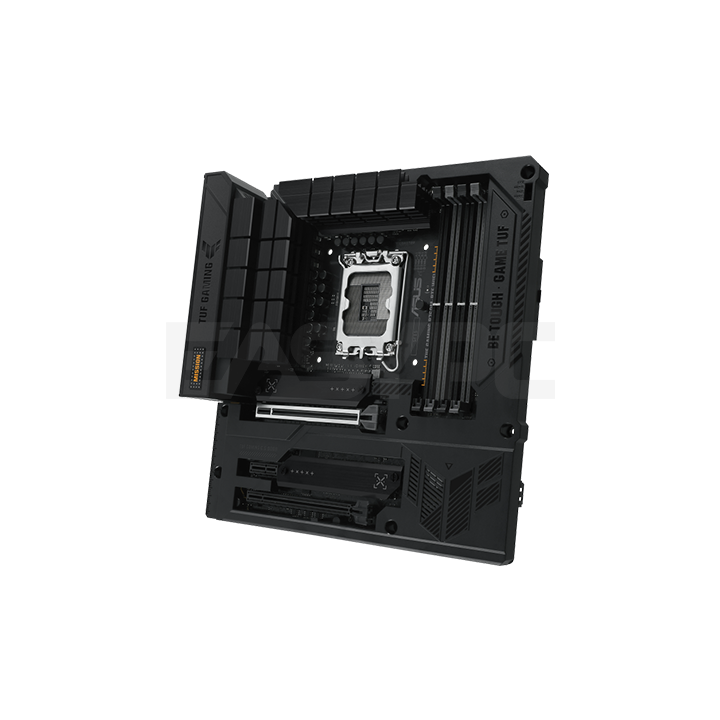

Asus TUF Gaming B760-BTF WIFI Socket LGA 1700 DDR5 Motherboard

Asus TUF Gaming B760-BTF WIFI Socket LGA 1700 DDR5 Motherboard

Product Description

The Asus TUF Gaming B760-BTF WiFi LGA 1700 motherboard supports DDR5 memory and is designed for durability and performance. With WiFi 6, PCIe 5.0, robust power delivery, and advanced cooling, it ensures stability for gaming and multitasking. Its stealthy design is perfect for clean, cable-managed builds.

Product Specifications

Model

• TUF GAMING B760M-BTF WIFI

News & Updates

• 2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B760 Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under
• the Support tab of product information site or visit https://www.asus.com/support/
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**
• 1 x HDMITM port***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)

• 1 x PCIe 5.0 x16 slot

Intel® B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® Core™ Processors (14th & 13th & 12th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• ** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band

Bluetooth® v5.2*

• *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)

• 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
• 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

• 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
• ** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback

Audio Features

• - Audio Shielding
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

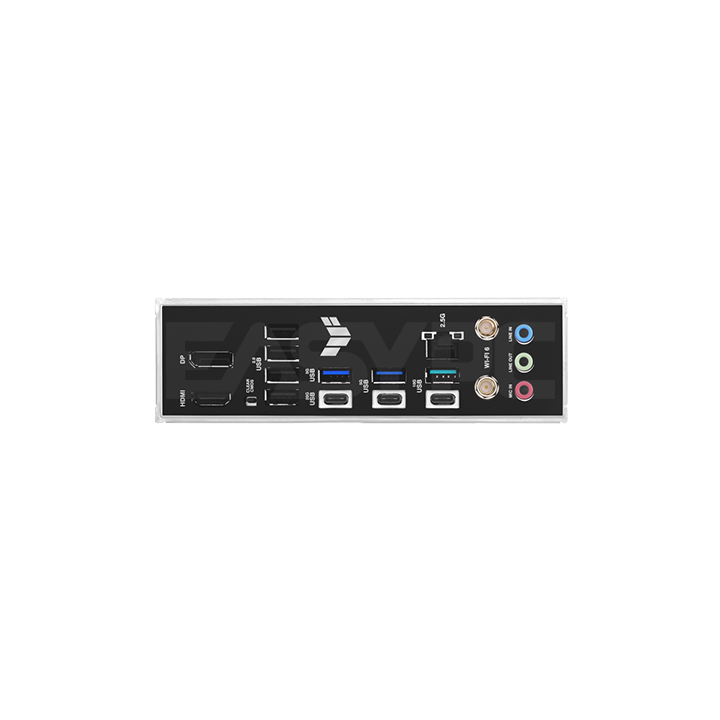

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C®)
• 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector

Storage related

• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 10-1 pin System Panel header
• 1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION

• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O

ASUS Q-Design

• - M.2 Q-Latch
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot

ASUS Thermal Solution

• - M.2 heatsinks
• - VRM heatsink design

ASUS EZ DIY

• - Clear CMOS button
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM

Aura Sync

• - Aura RGB header
• - Addressable Gen 2 headers

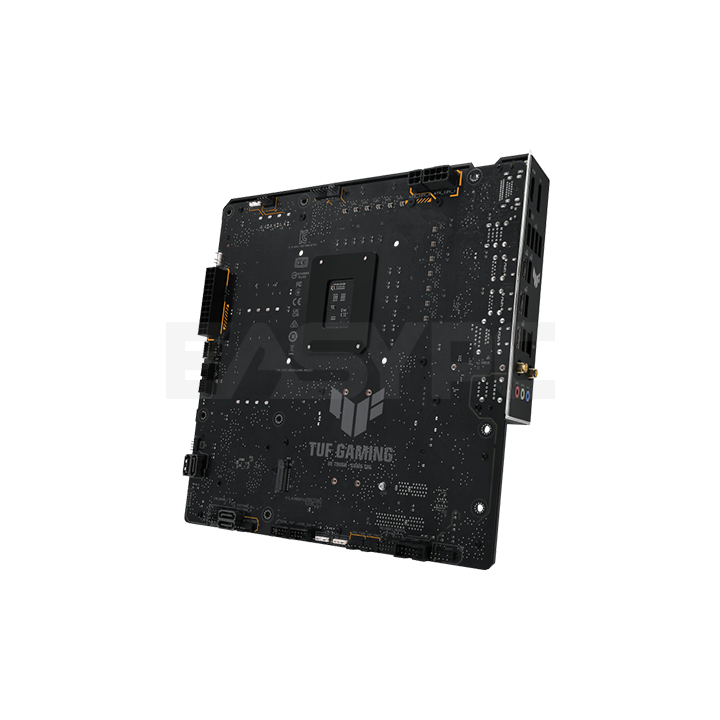

• Hidden-Connector (BTF)
• Without Graphics Card High-Power Slot
• *Compatible with general graphics card, but not BTF graphics card.

Software Features

ASUS Exclusive Software

Armoury Crate

• - Aura Creator
• - Aura Sync
• - FAN Xpert 2+
• - Power Saving
• - Two-Way AI Noise Cancellation

AI Suite 3

• - DIGI+ VRM
• - PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyASUS

Norton 360 for Gamers (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF Gaming sticker
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD

Documentation

• 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
