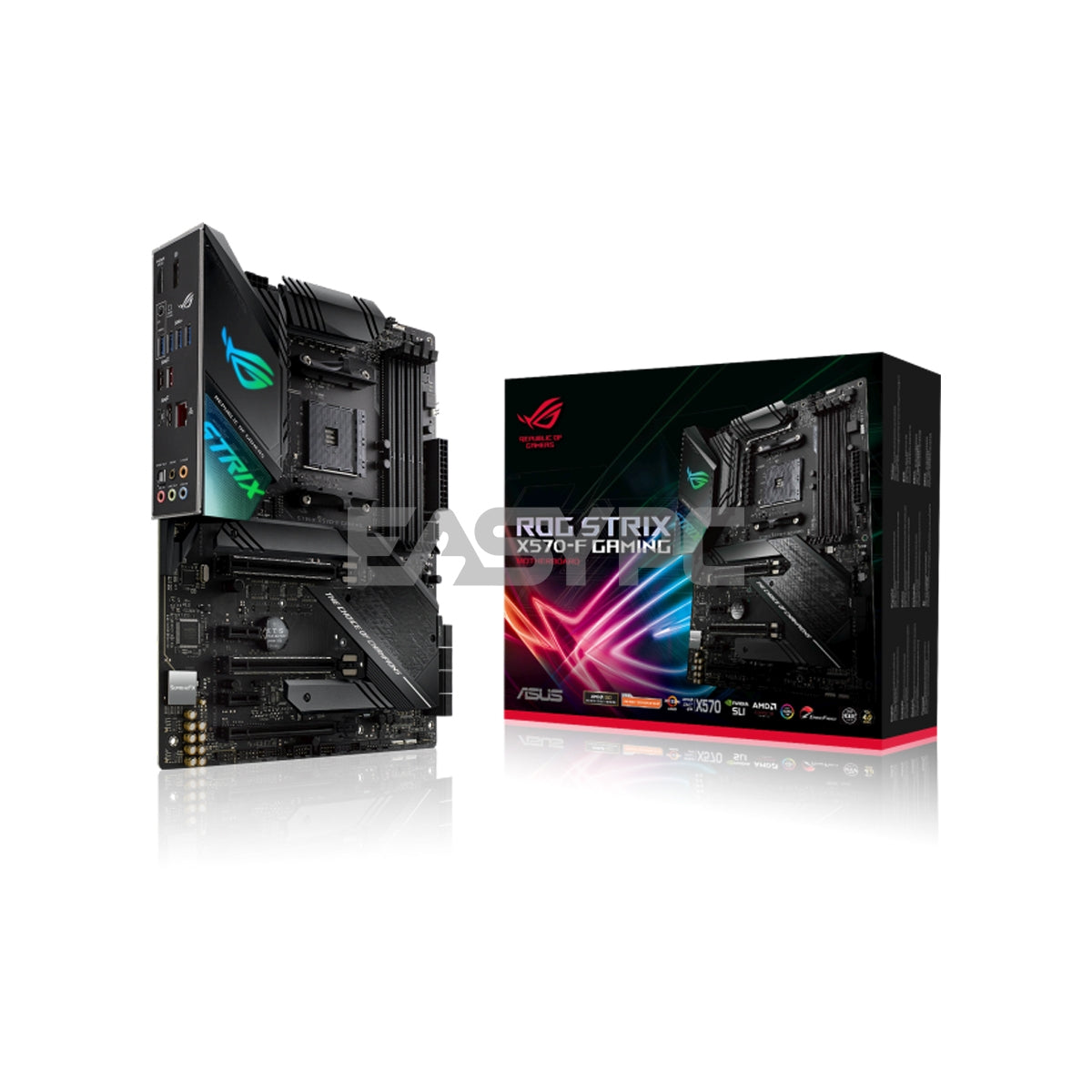

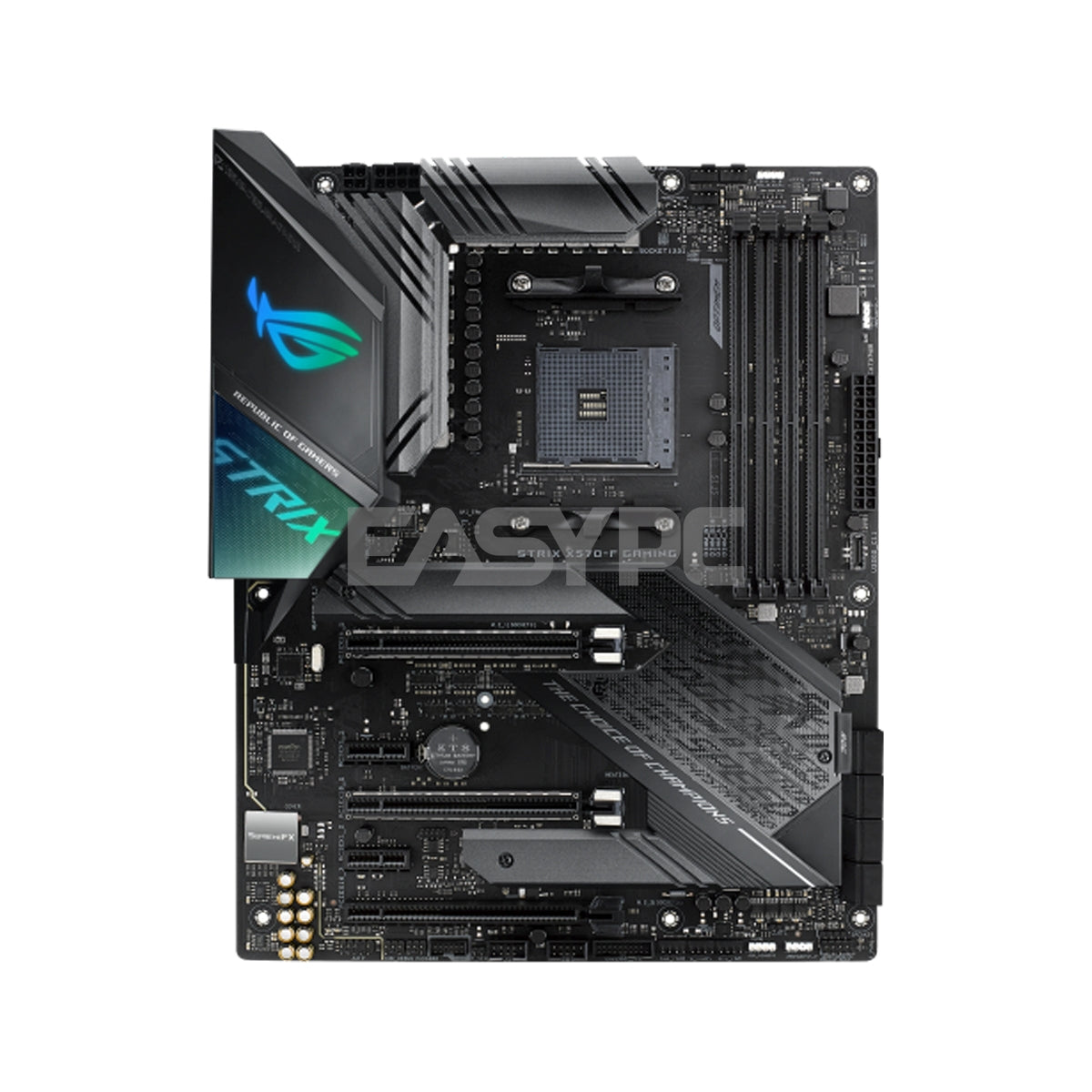

Asus ROG Strix X570-F Socket Am4 Ddr4 Aura Sync RGB 5-Way Optimization Easy DIY Gaming Motherboard
Product Description
Unleash gaming dominance with the Asus ROG Strix X570-F motherboard. Socket AM4, DDR4 support, and premium features define this gaming powerhouse. Elevate your rig's performance and style with unparalleled reliability.
Product Specifications
- Brand: ASUS
- Series: ROG STRIX X570-F GAMING
- Chipset: AMD X570
- RAM: DIMM
- Memory Speed: 4400 MHz
- CPU Socket: Socket AM4
- Operating System: Windows® 10 64-bit
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Compatible Processors: AMD 3rd Generation Ryzen
- CPU: AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
- Memory:
- 3rd Gen AMD Ryzen™ Processors
- 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
- 2nd Gen AMD Ryzen™ Processors
- 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
- 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Graphic:
- Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
- Multi-VGA output support : HDMI/DisplayPort ports
- - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
- Multi-GPU Support
- 3rd and 2nd Gen AMD Ryzen™ Processors
- Supports NVIDIA® 2-Way SLI® Technology
- Supports AMD 3-Way CrossFireX™ Technology
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
- Supports AMD 2-Way CrossFireX™ Technology
- Expansion Slots
- 3rd Gen AMD Ryzen™ Processors
- 2 x PCIe 4.0 x16 (x16 or dual x8)
- 2nd Gen AMD Ryzen™ Processors
- 2 x PCIe 3.0 x16 (x16 or dual x8)
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
- 1 x PCIe 3.0 x16 (x8 mode)
- AMD X570 chipset
- 1 x PCIe 4.0 x16 (max at x4 mode)
- 2 x PCIe 4.0 x1
- Storage
- 3rd Gen AMD Ryzen™ Processors :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
- 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
- AMD X570 chipset :
- 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
- 8 x SATA 6Gb/s port(s),
- Support Raid 0, 1, 10
- LAN:
- Intel® I211-AT, 1 x Gigabit LAN Controller(s)
- Anti-surge LANGuard
- ROG GameFirst Technology
- Audio:
- SupremeFX 8-Channel High Definition Audio CODEC S1220A
- - Dual OP Amplifiers
- - Impedance sense for front and rear headphone outputs
- - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- - SupremeFX Shielding Technology
- - Supports up to 32-Bit/192kHz playback
- Audio Feature :
- - Optical S/PDIF out port(s) at back panel
- - Sonic Radar III
- - Sonic Studio III + Sonic Studio Link
- USB Ports:
- 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
- 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
- AMD X570 chipset :
- 1 x USB 3.2 Gen 2 front panel connector port(s)
- AMD X570 chipset :
- 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
- AMD X570 chipset :
- 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
- AMD X570 chipset :
- 4 x USB 2.0 port(s) (4 at mid-board)
- Features:
- AMD X570 ATX gaming motherboard with PCIe 4.0, Intel Gigabit Ethernet, 14 power stages, dual M.2 with heatsinks, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
- Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
- Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
