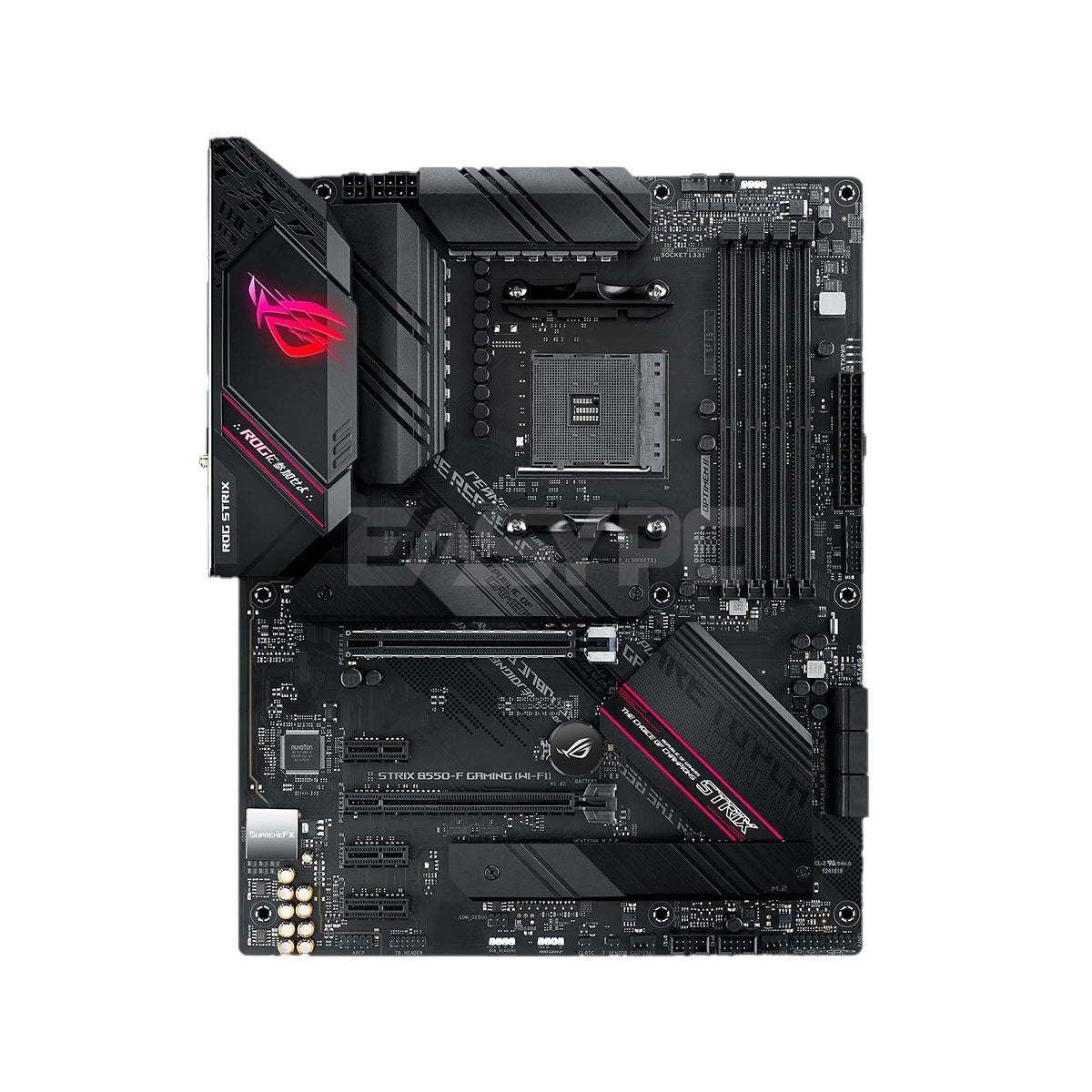

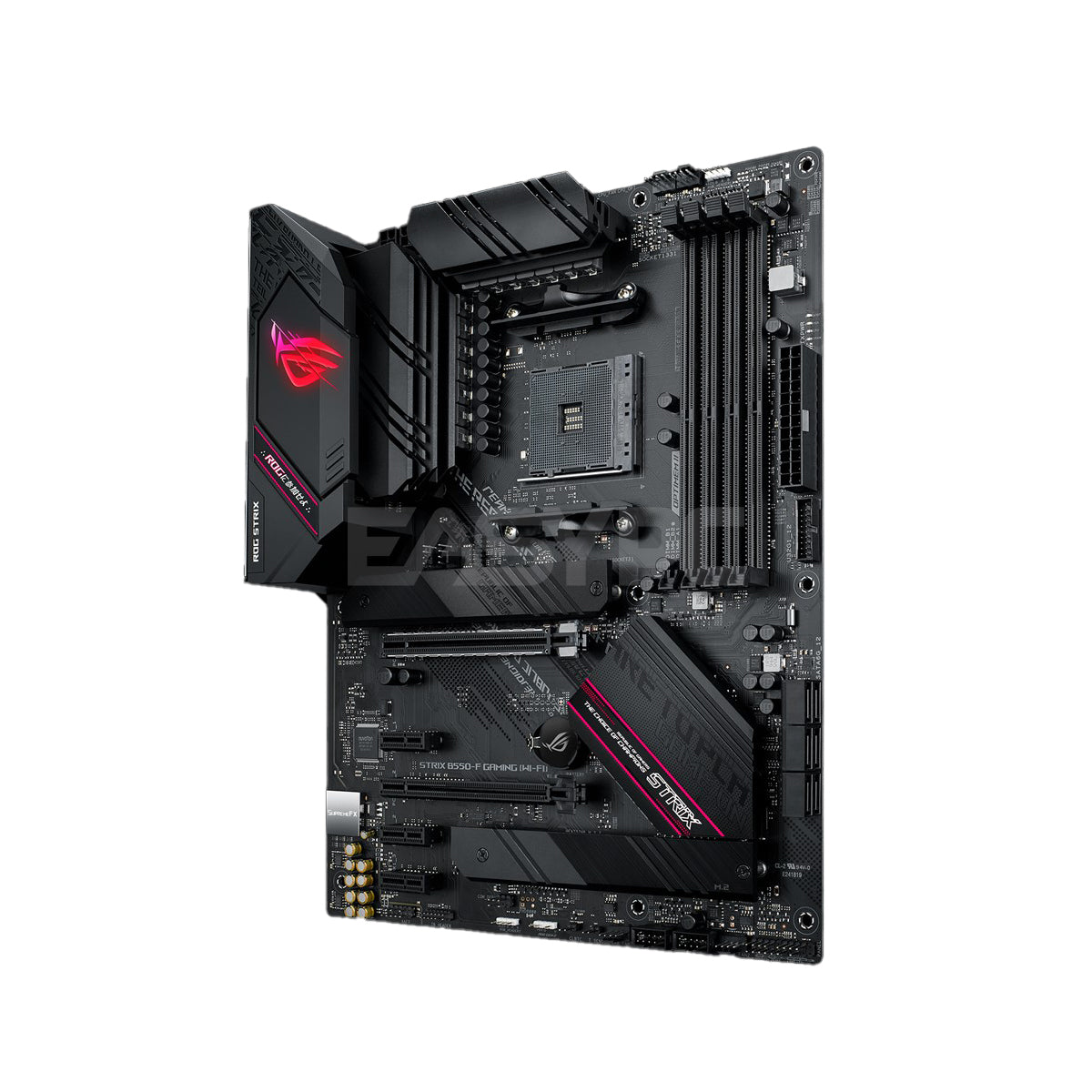

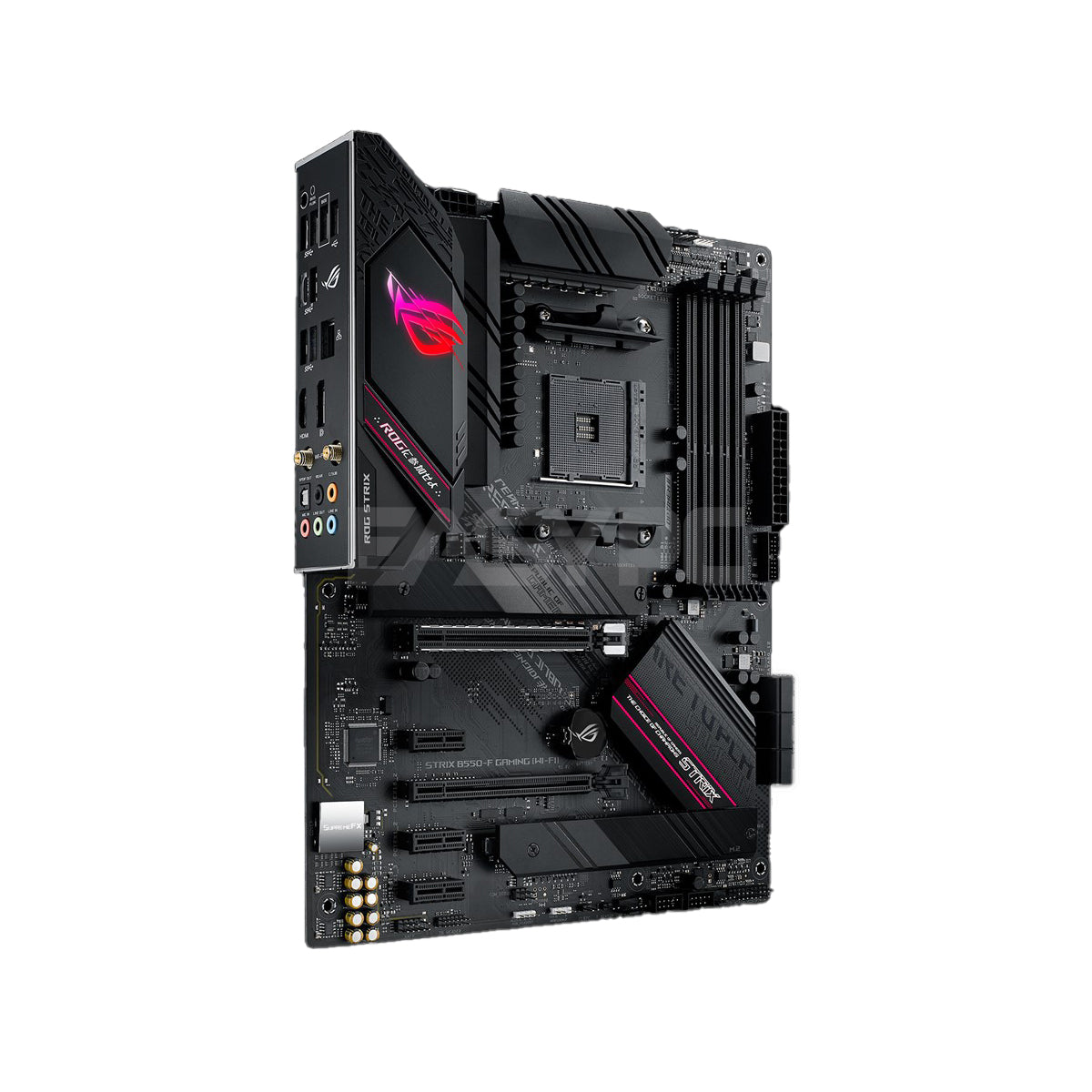

Asus ROG Strix B550-F Gaming Wi-Fi Socket Am4 Ddr4 Motherboard
ASUS

Asus ROG Strix B550-F Gaming Wi-Fi Socket Am4 Ddr4 Motherboard

Available:Out of Stock
    ₱13,049.00
    Delivery Options
    • Nationwide Delivery
    Payment Options
    • cash-on-delivery
    • 7eleven
    • gcredit
    • GCash
    • BillEase
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard
    Warranty

    7 Days Outright Replacement

    1 Year Warranty

    CPU AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
    * Refer to www.asus.com for CPU support list
    Chipset AMD B550
    Memory 3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Next Generation AMD Ryzen PRO Processors
    4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
    Dual Channel Memory Architecture
    OptiMem II
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    Graphic Integrated Graphics Processor
    1 x DisplayPort 1.2
    1 x HDMI 2.1(4K@60HZ)
    *Graphics specifications may vary between CPU types.
    Expansion Slots Supports AMD 2-Way CrossFireX Technology
    Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    1 x PCIe 4.0 x16 (x16 mode)
    AMD B550 Chipset
    1 x PCIe 3.0 x16 (x4 mode) *
    3 x PCIe 3.0 x1
    Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    AMD B550 Chipset :
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
    LAN Intel® I225-V 2.5Gb Ethernet
    ASUS LANGuard
    Wireless Data Network
    Intel® Wi-Fi 6 AX200
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Bluetooth *BT 5.1 function will be ready in Windows 10 build 19041 or later.
    Audio
    ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
    - Dual OP Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF in port(s) at back panel
    - Audio Shielding
    - Premium Japanese audio capacitors
    - Audio Cover
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    USB Ports Front USB Port ( Total 6 )
    Rear USB Port ( Total 8 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
    Software Features ROG Exclusive Software
    - RAMCache III
    - ROG CPU-Z
    - GameFirst VI
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - Sonic Radar III
    - DTS® Sound Unbound
    - Overwolf
    - Anti-virus software
    ASUS Exclusive Software Features
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - AI Noise Cancelling Microphone
    AI Suite 3:
    - PPSU
    EPU
    DIGI+ VRM
    Fan Xpert 4
    TurboV EVO
    - EZ update
    WinRAR
    ASUS Special Features UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    AURA Sync
    - Standard RGB headers
    - Addressable Gen 2 RGB header
    ASUS Lighting Control
    ASUS Special Features Aura Sync
    - Standard RGB header(s)
    - Addressable Gen 2 RGB header(s)
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum M.2 heatsink
    ASUS EZ DIY
    -BIOS FlashBack™ button
    -BIOS FlashBack™ LED
    -Clear CMOS header
    -ProCool
    -Pre-mounted I/O shield
    - SafeSlot

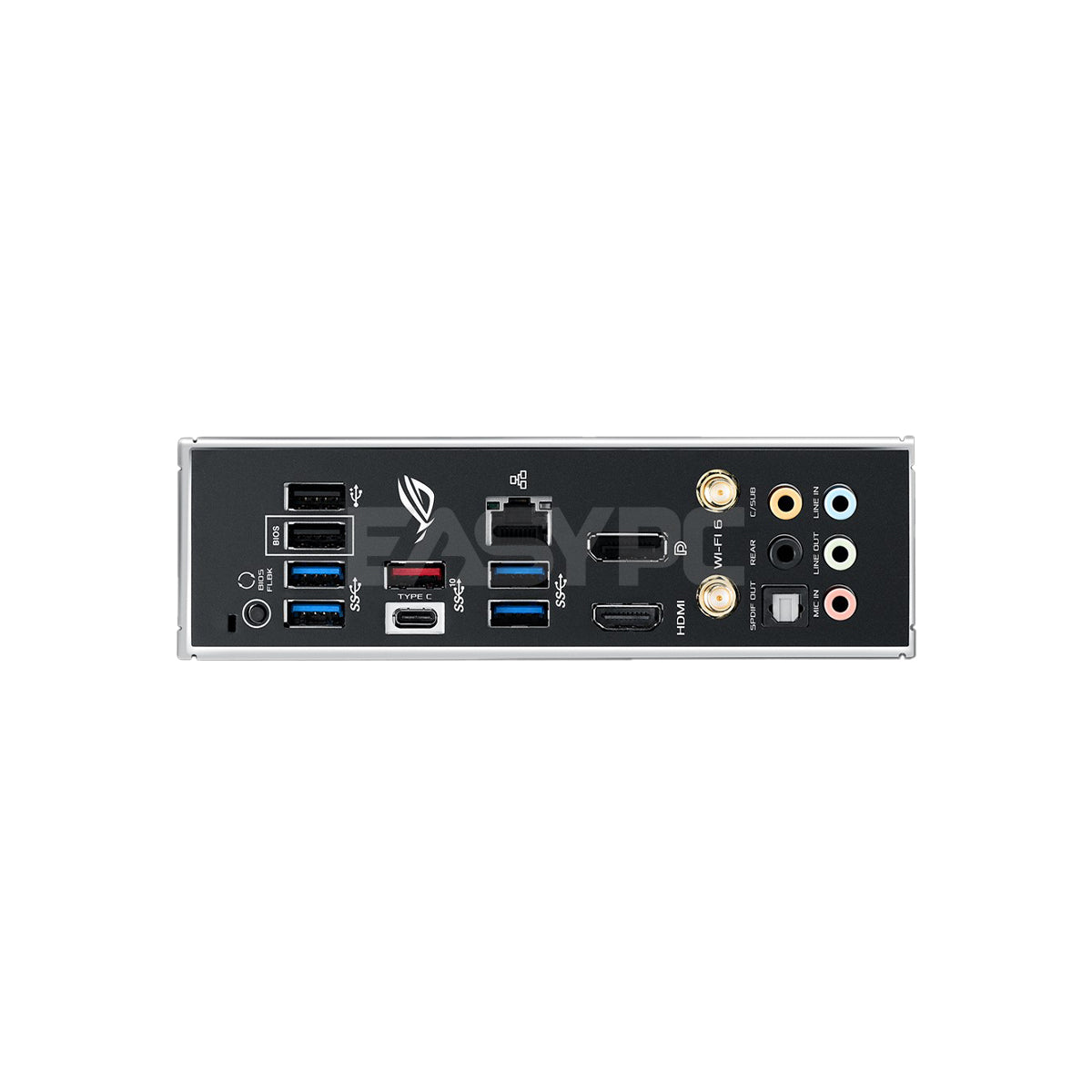

    Back I/O Ports 1 x Intel® I225-V 2.5Gb Ethernet
    1 x DisplayPort
    1 x HDMI
    2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
    4 x USB 3.2 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x BIOS FlashBack™ Button(s)
    ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
    Internal I/O Ports 1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x AAFP connector
    2 x Aura RGB Strip Header(s)
    1 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    Accessories I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    User manual
    1 x Wi-Fi moving antenna
    1 x M.2 SSD screw package(s)
    BIOS 256 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE
    Operating System Windows® 10 64-bit
    Form Factor ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
