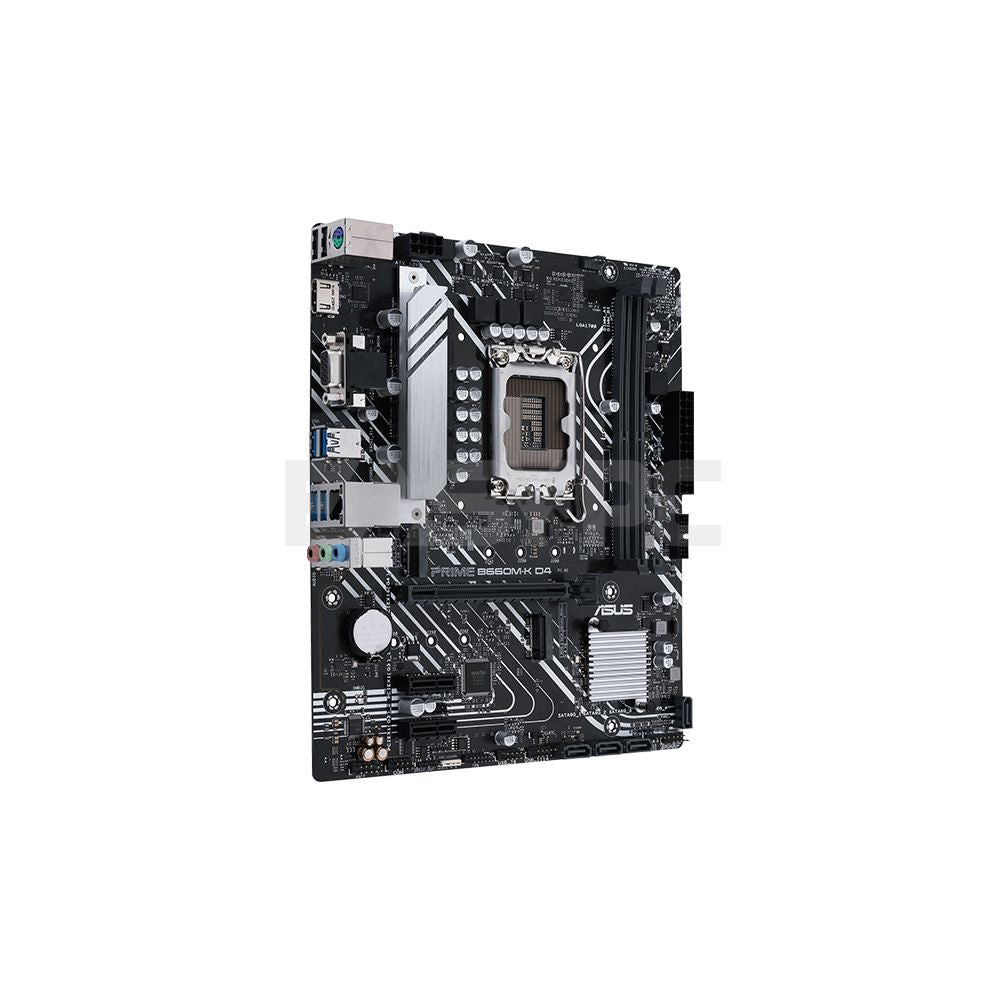

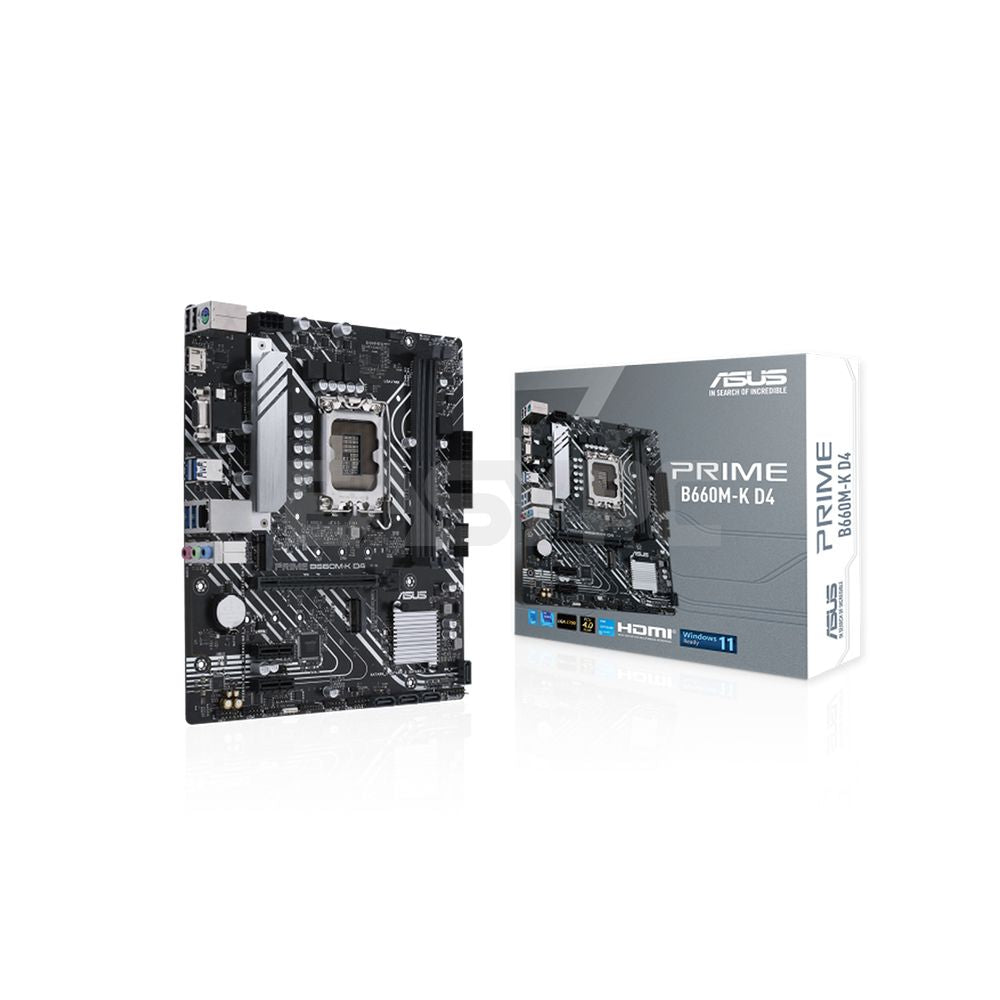

Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard
![Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard]()
![Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard]()
![Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard]()
![Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard]()
![Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard]()
![Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard]()
![]()
Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard
Available:Out of Stock
Apply voucher code MAR45OFF MIN 5K, Get PHP45 OFF upon check out
Apply voucher code MAR30OFF MIN 3K, Get PHP30 OFF upon check out
₱7,750.00
Payment Options
Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard
Product Specification
- CPU: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Memory: 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
- Graphics: 1 x D-Sub
- 1 x D-Sub port
- 1 x HDMI® port**
- Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Support 4K@60Hz as specified in HDMI® 2.1.
- Expansion Slots: Intel® 12th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- Intel® B660 Chipset
- 2 x PCIe 3.0 x1 slots
- Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® 12th Gen Processors
- 2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
- Intel®B660 Chipset**
- 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
- 4 x SATA 6Gb/s ports
- Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
- Ethernet: 1 x Realtek 1Gb Ethernet
- USB: 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A）
Front USB:Total 6 ports - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Back Panel I/O Ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x D-Sub port
- 1 x HDMI® port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- Internal I/O Connectors: Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
- Special Features: ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
- ASUS Q-Design
- Q-DIMM
- Q-Slot
