CPU
Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel CPU support list.
Chipset
Intel H310
Memory
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
Graphic
Integrated Graphics Processor- Intel HD Graphics support
VGA output support : D-Sub port
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 2.0 x1
Storage
Intel H310 Chipset :
3 x SATA 6Gb/s port(s),
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Intel H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
- ASUS ESD Guards - Enhanced ESD protection
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Top notch audio sensation delivers according to the audio configuration
- Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Operating System Support
Windows 10 64-bit

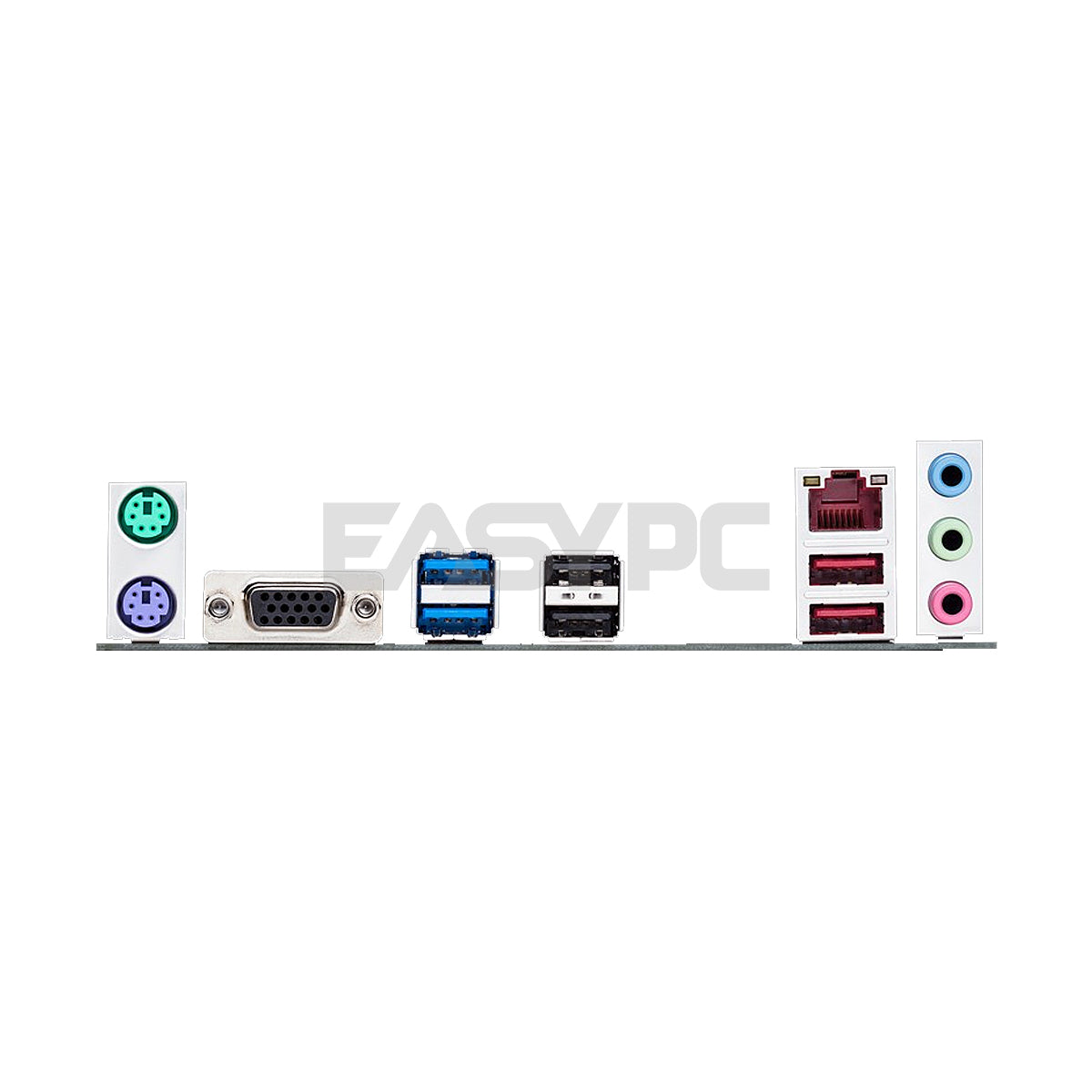

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ,
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x AAFP connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
3 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
Accessories
User's manual
I/O Shield
1 x Supporting DVD
Operating System
Windows 10 64-bit
Form Factor
uATX Form Factor
8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )
