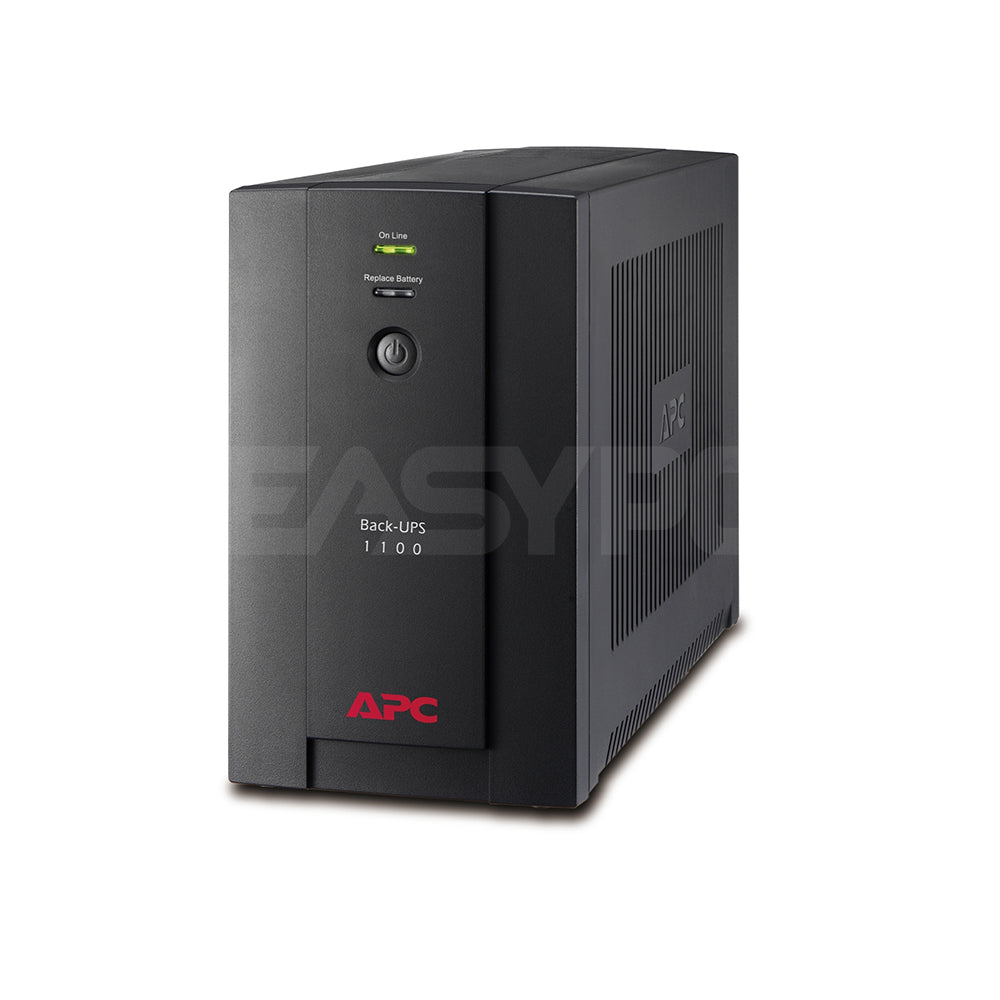

APC Back UPS BX1100LIMS 550Watts 1100va with AVR Universal and IEC Sockets
Payment Options
Output
Max Configurable Power (Watts)
550Watts / 1.1kVA
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
4ms typical : 6ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
150 - 280 V
Number of Power Cords
1
Type of Input Protection Required
3-pole breaker
Input Power Factor at Full Load
0.5
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
6hour(s)
Replacement Battery
RBC17
Expected Battery Life (years)
2 - 4
Battery Charge Power (Watts)
16Watts
Battery Volt-Amp-Hour Capacity
96
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Physical
Maximum Height
215MM, 21.5CM
Maximum Width
130MM, 13.0CM
Maximum Depth
336MM, 33.6CM
Net Weight
9.2KG
Shipping weight
10.6KG
Shipping Height
295MM, 29.5CM
Shipping Width
245MM, 24.5CM
Shipping Depth
440MM, 44.0CM
Color
Black
Environmental
Operating Temperature
0 - 40 C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 40 C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-9000meters
Audible noise at 1 meter from surface of unit
45.0dBA
Conformance
Approvals
CE, WEEE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains SVHCs
