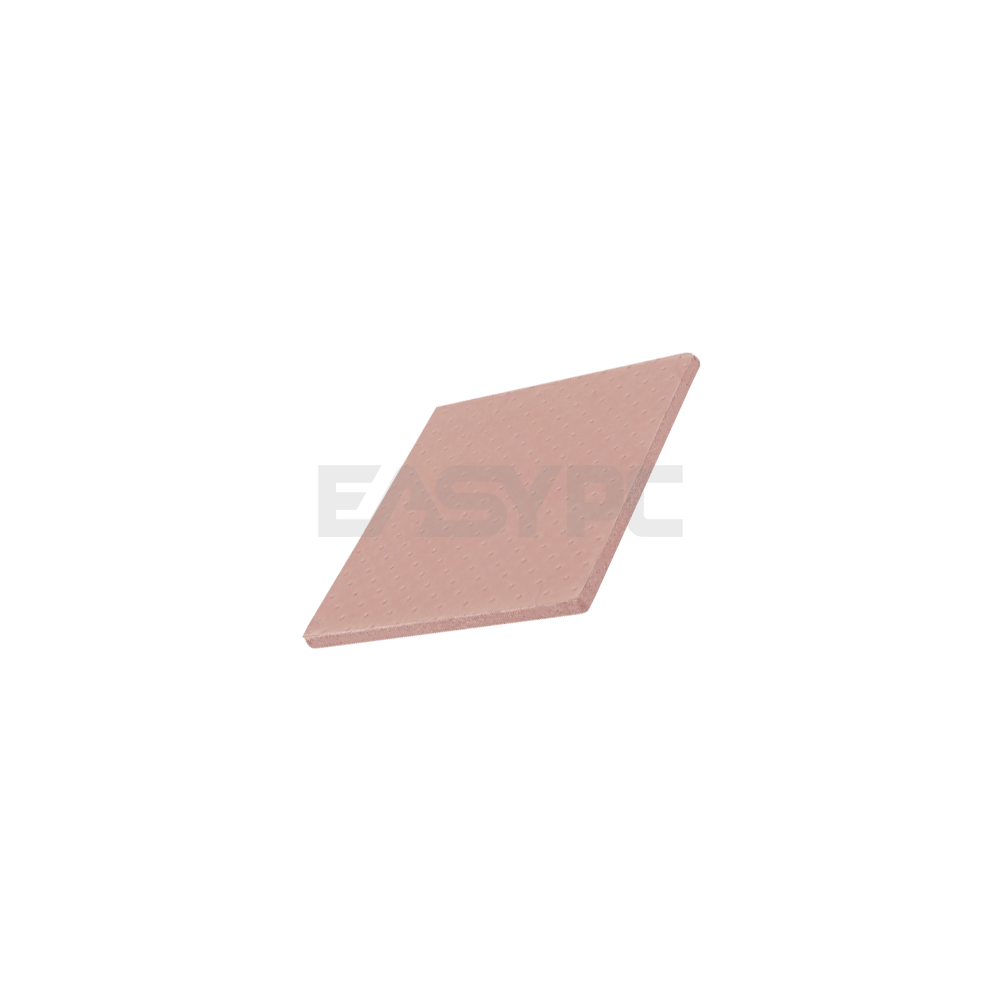

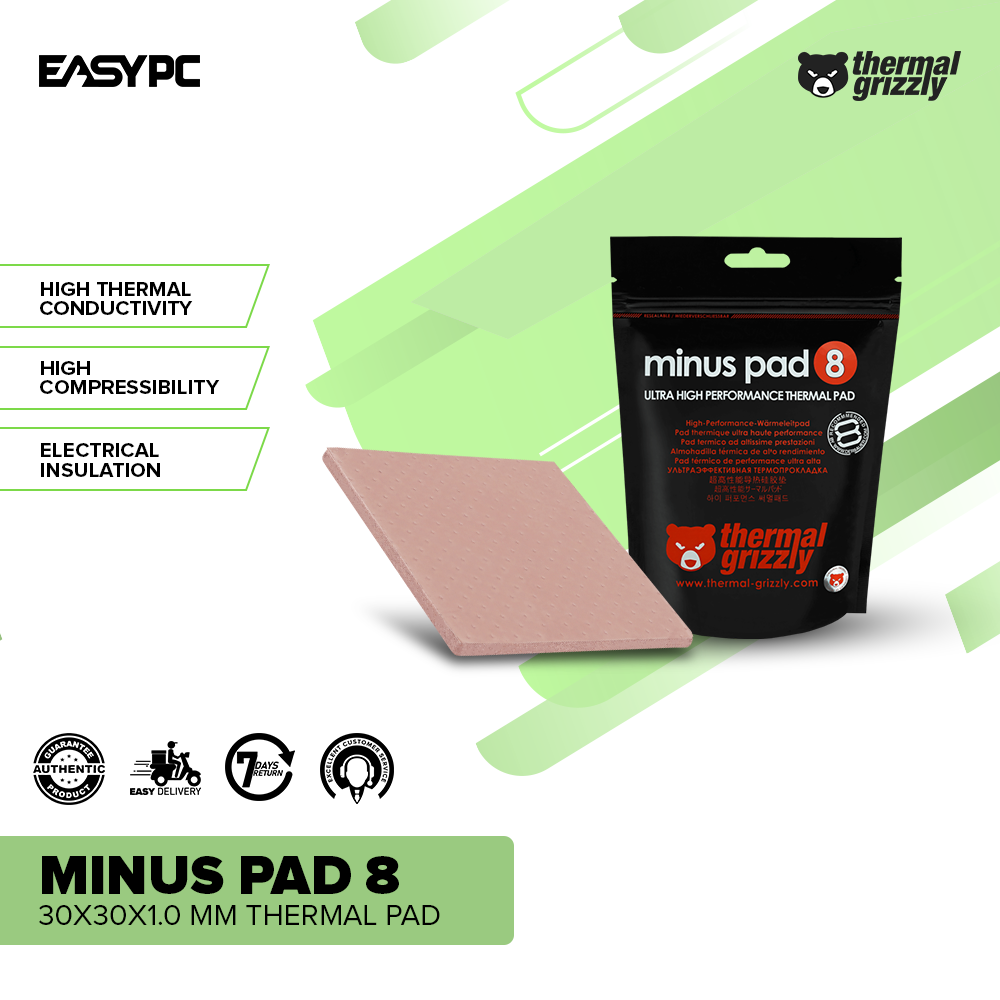

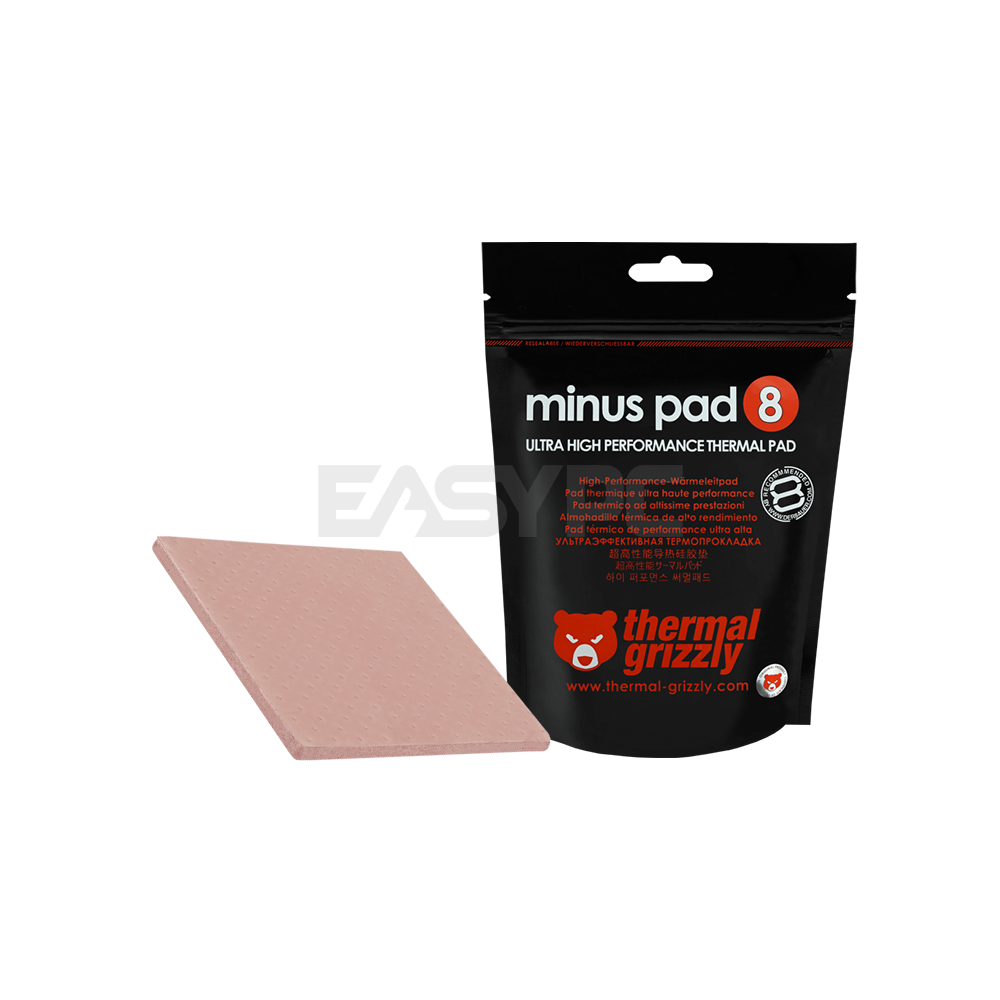

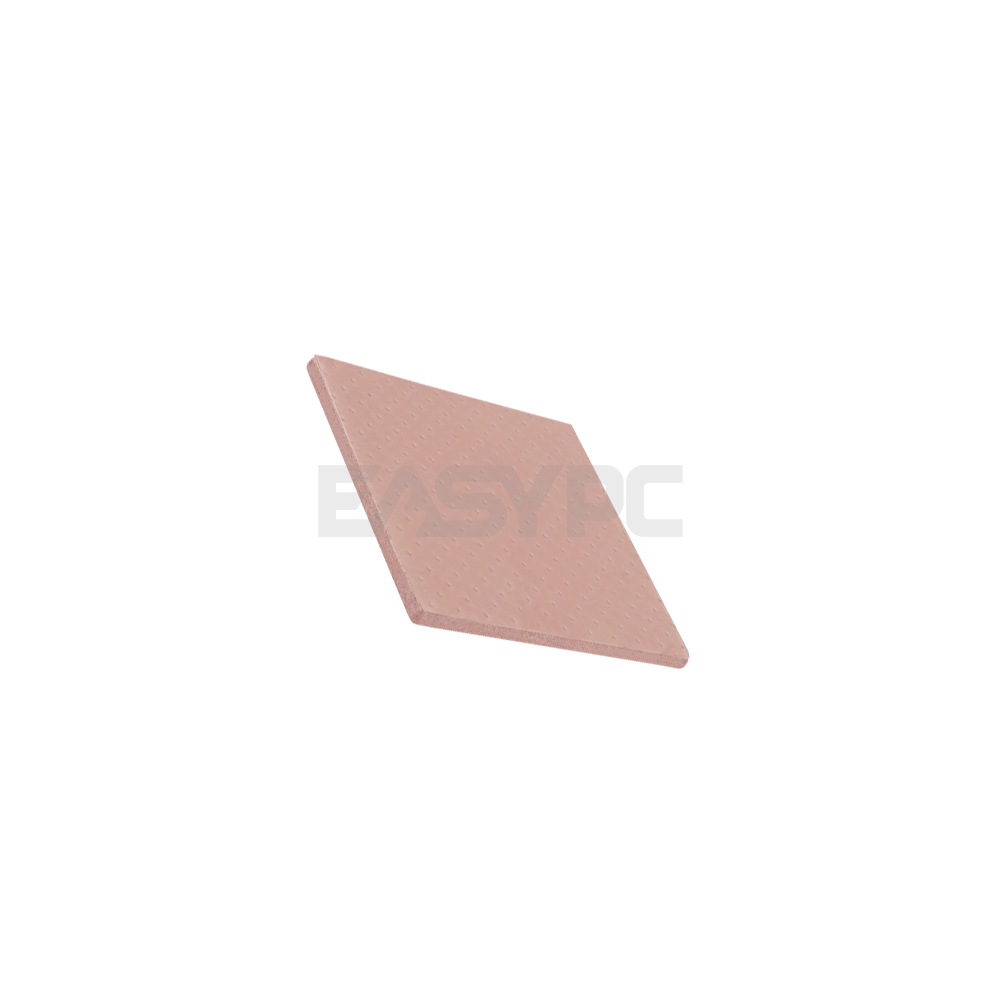

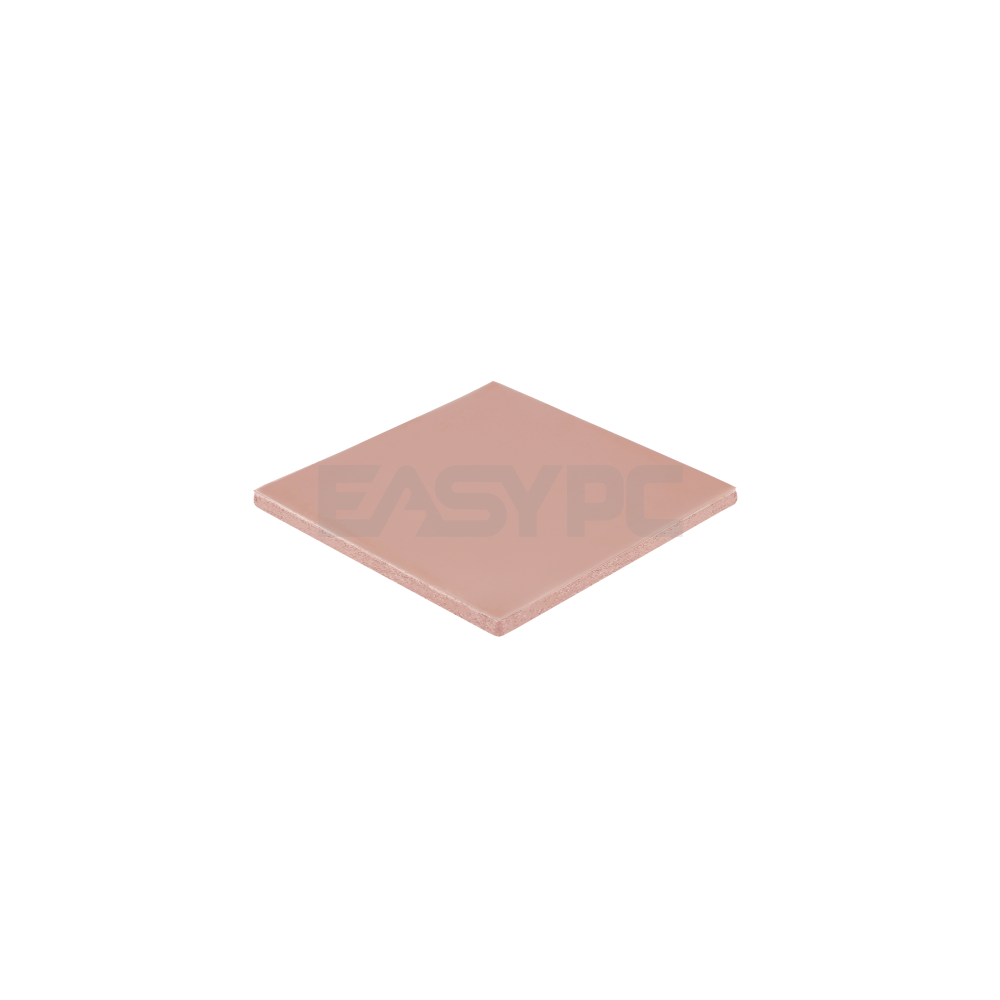

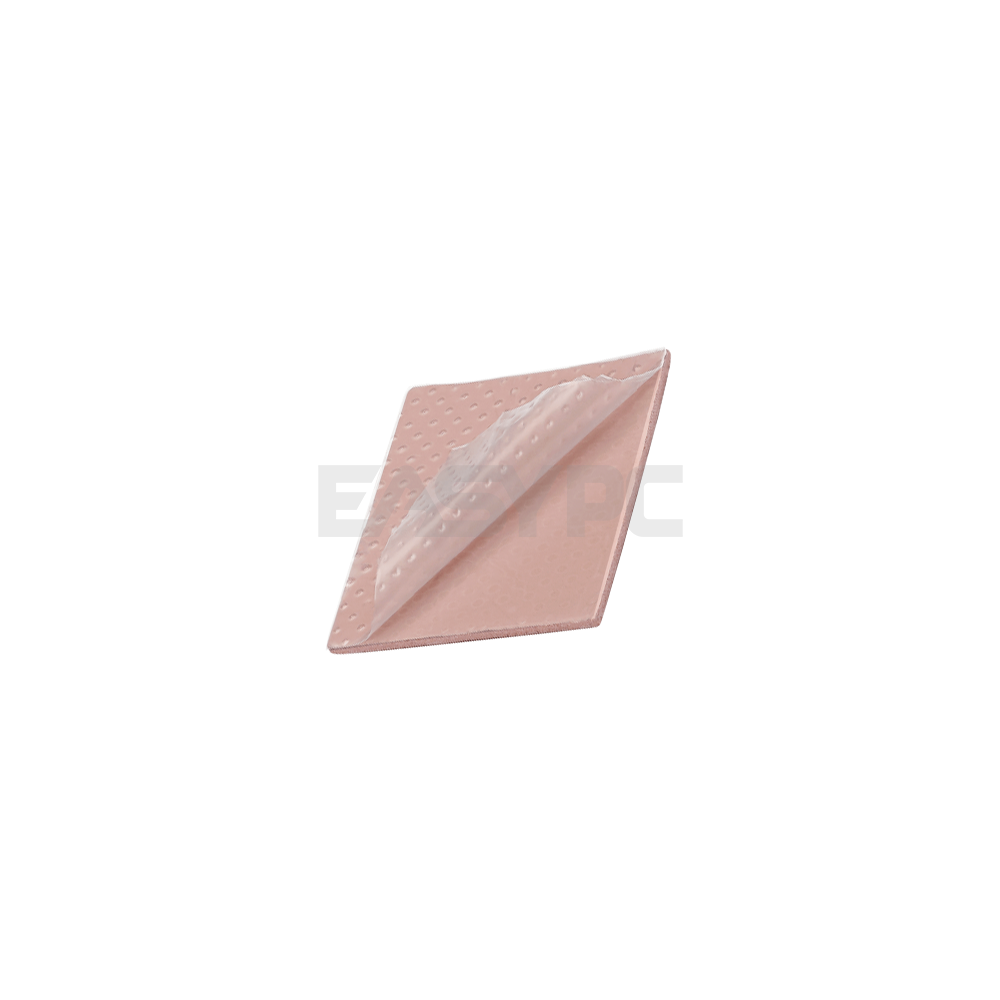

The Thermal Grizzly Minus Pad 8 is a high-performance thermal pad measuring 30x30x1.0mm, designed to transfer heat away from CPUs, GPUs, VRM modules, and other components that need thermal interface material. Unlike thermal paste, thermal pads are solid sheets that fill gaps between heat sources and heatsinks, making them well-suited for components where direct contact is uneven or where a specific thickness is required. The Minus Pad 8 has a soft, flexible consistency rated at Shore 00-60 hardness, allowing it to conform to irregular surfaces without excessive mounting pressure. It is electrically insulating at 8KV/mm, preventing short circuits when placed near exposed PCB traces, and operates across a wide temperature range from -100°C to +250°C.
Key Features
- High Thermal Conductivity — Efficiently transfers heat from components to heatsinks for effective thermal management in tight spaces
- Soft Flexible Material — Shore 00-60 hardness conforms to uneven surfaces without requiring high mounting pressure
- Electrically Insulating — 8KV/mm dielectric strength prevents short circuits when placed near exposed PCB components
- Wide Temperature Range — Operates reliably from -100°C to +250°C, covering all standard and extreme computing scenarios
- V-0 Flammability Rating — Self-extinguishing material meets stringent fire safety standards for electronic components
- Precise 30x30x1.0mm Size — Can be cut to custom shapes with scissors for specific component coverage
Technical Specifications
| Brand | Thermal Grizzly |
|---|---|
| Product | Minus Pad 8 |
| Dimensions | 30 x 30 x 1.0mm |
| Color | Pink |
| Hardness | Shore 00-60 |
| Electrical Insulation | Yes (8KV/mm, ASTM D149) |
| Flammability | V-0 |
| Operating Temperature | -100°C to +250°C |
Ideal For
- GPU memory and VRM thermal pad replacements during heatsink reapplication
- Custom cooling solutions where specific gap-filling thickness is needed between components and heatsinks
- PC builders and modders who need a reliable, electrically safe thermal interface material
- Laptop repair and maintenance where thermal pads need replacement for proper heat transfer
