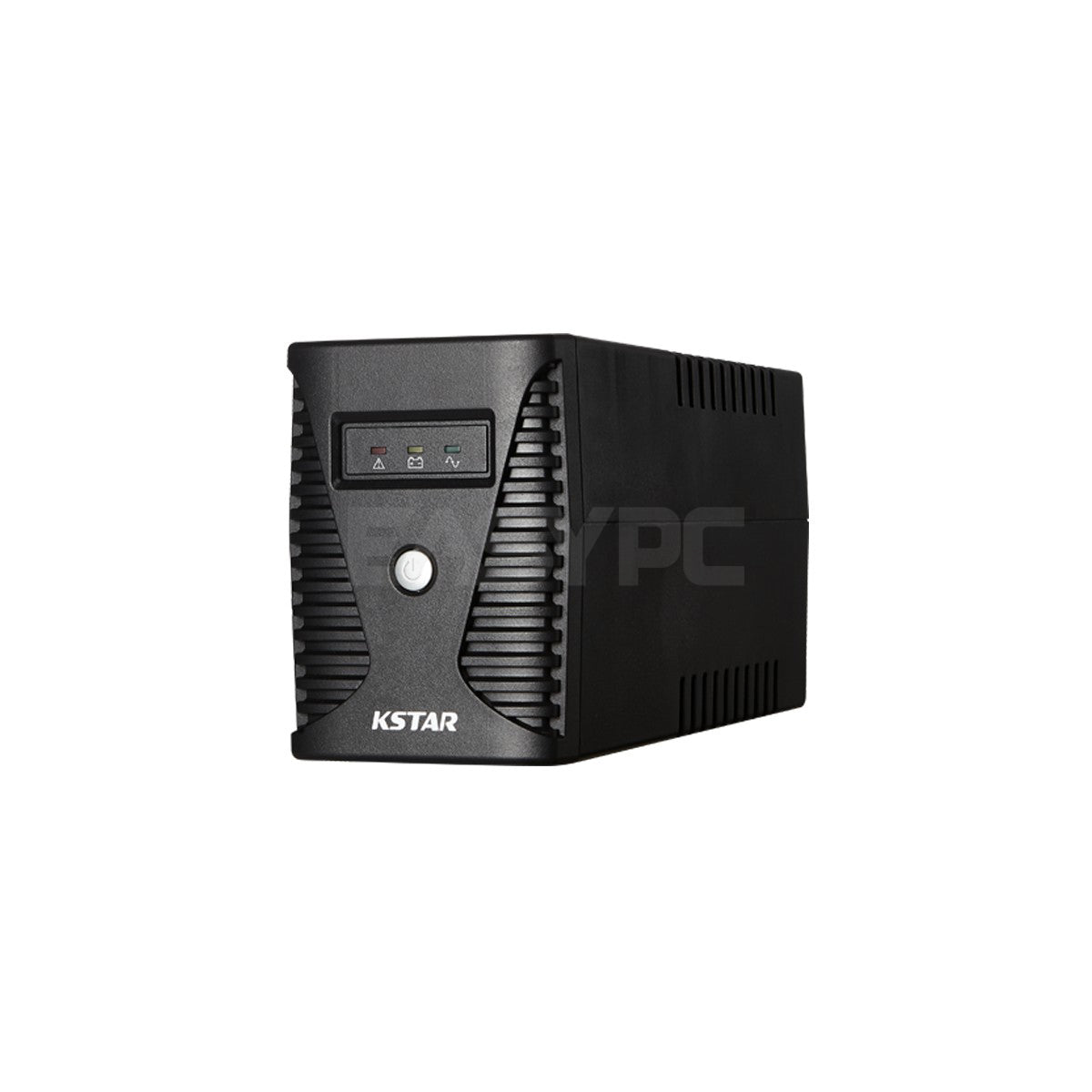

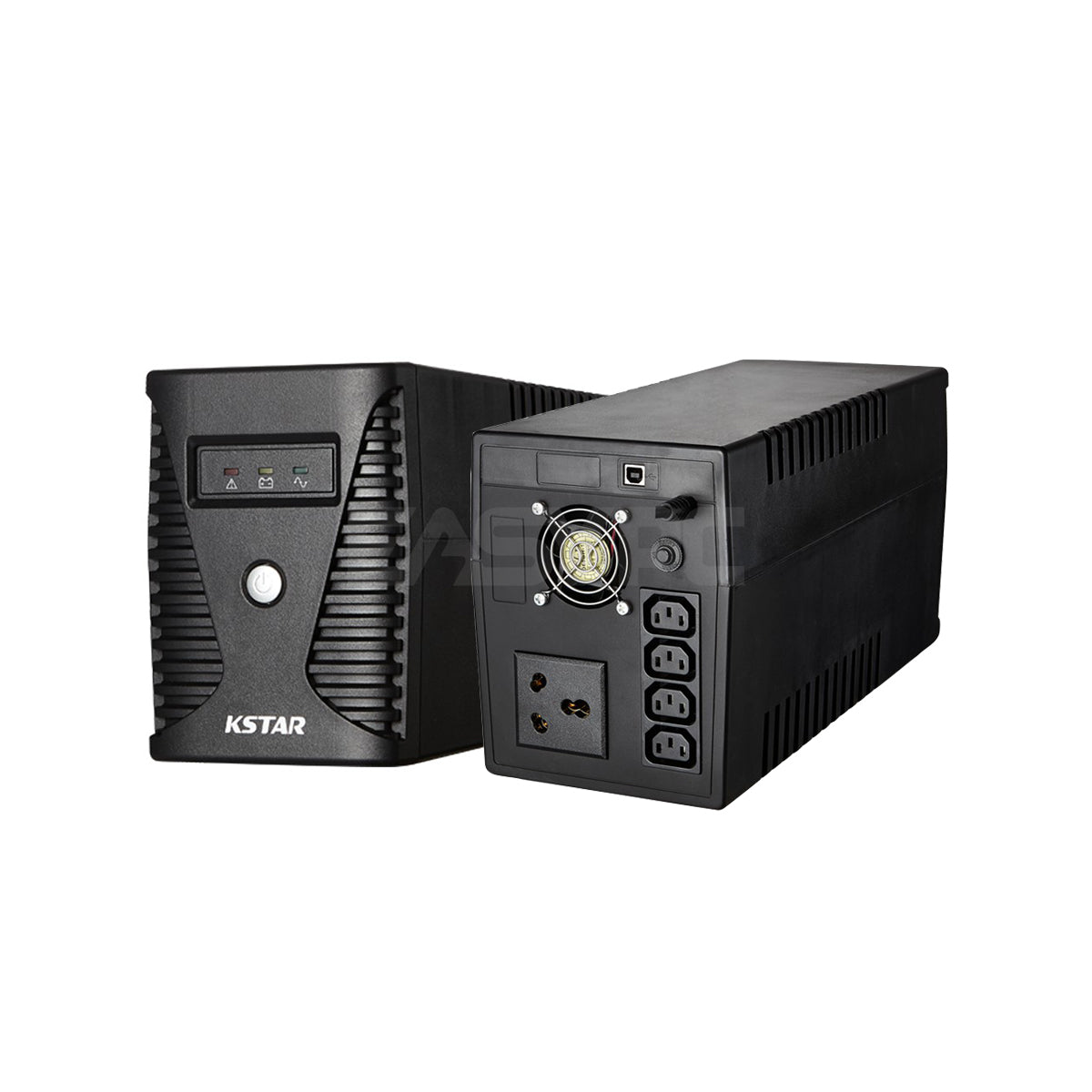

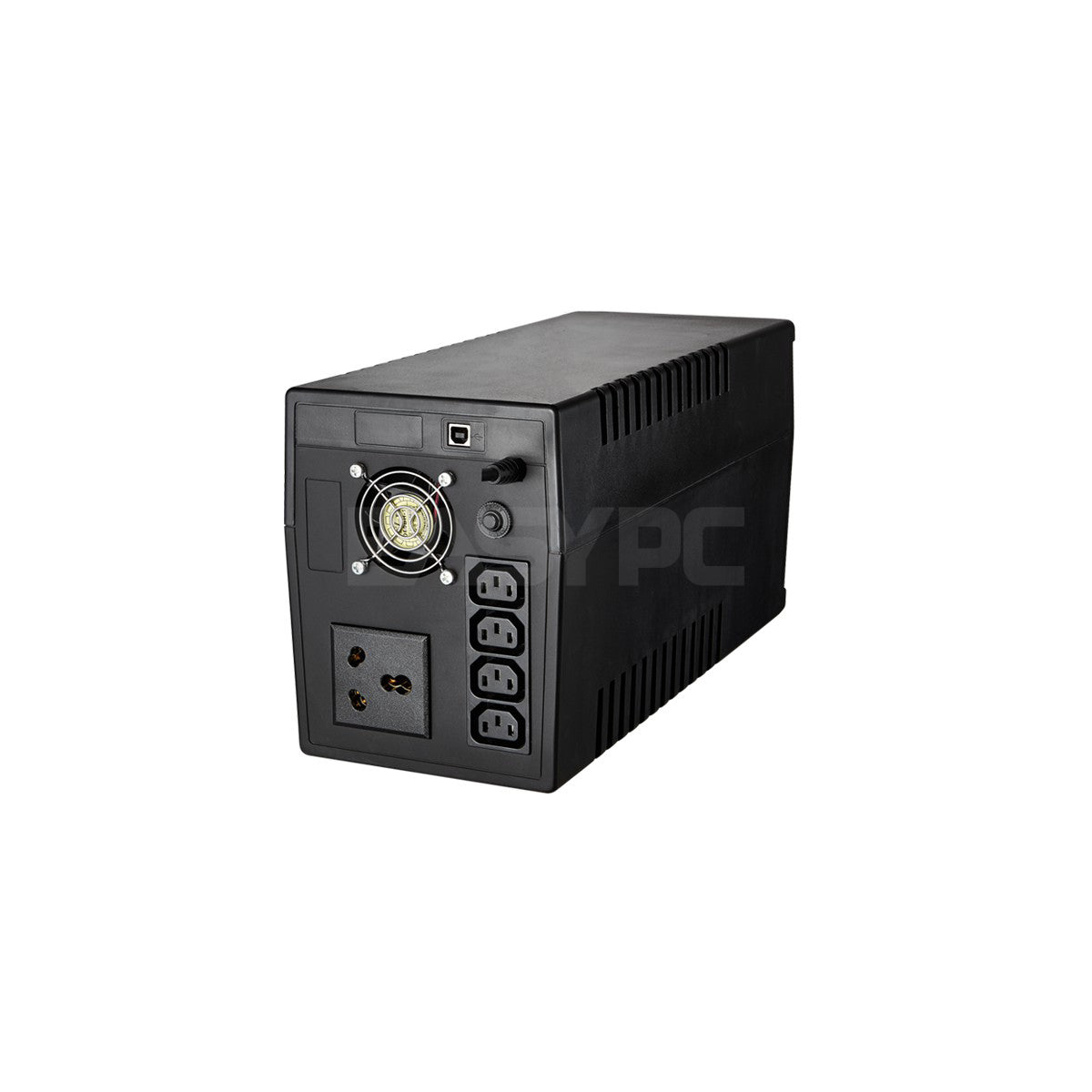

KSTAR Micro UA100 1000va/600 watts Line-Interactive AVR boost and buck, Cold start function, Built-in self-diagnostic function UPS

Product Specifications

• Model: UA100
• Capacity (Va/Watts): 1000/ 600
• Input
• Nominal Input Voltage: 110/120vac or 220/230/240 Vac
• Operating Voltage Range: 81-145vac/162-290 Vac
• Operating Frequency Range: 50/60 Hz (1±10%)
• Output
• Output Voltage Range (Batt. Mode): Simulated Sinewave At Nominal Voltage ±10%
• Frequency Range (Batt. Mode): 50 Hz or 60 Hz ± 1 Hz
• Transfer Time: Typical 2-6 Ms, 10ms Max.
• Battery Type & Number: 12V/7Ah x 2
• Typical Recharge Time: 6-8 Hours (To 90% Capacity)
• Protection: Full Protection
• Indicators: Ac Mode, Battery Mode, Load Level, Battery Level
• Battery Mode: Sounding Every 10 Seconds
• Battery Low: Sounding Every Second
• Overload: Sounding Every 0.5 Second
• Battery Replacement Alarm: Sounding Every 2 Seconds
• Management
• Usb & Rs-232 Port (Optional): Supports Windows® 2000/2003/Xp/Vista/2008, Windows® 7, Linux, Unix, And Mac
• Operating Temperature: 0- 40°C
• Humidity Range: 0-95 % (Non-Condensing)
• Noise Level: <40db (1 Meter from Surface)
• Dimension, W X D X H (Mm): 149.3×338×162
• Net Weight (Kg): 7.8

Ideal For

• Protecting equipment from power interruptions
• Home and office power backup
• Preventing data loss during outages
