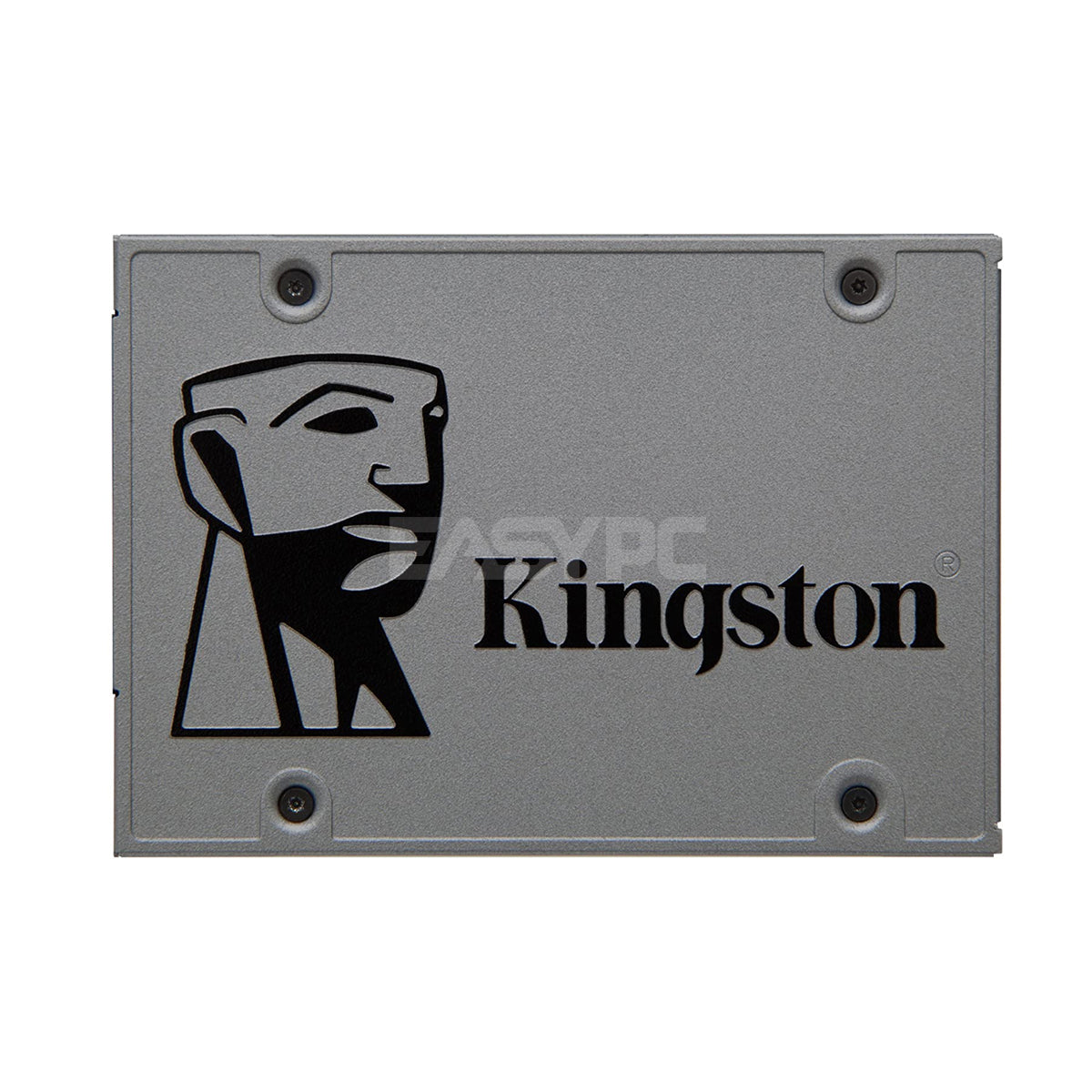

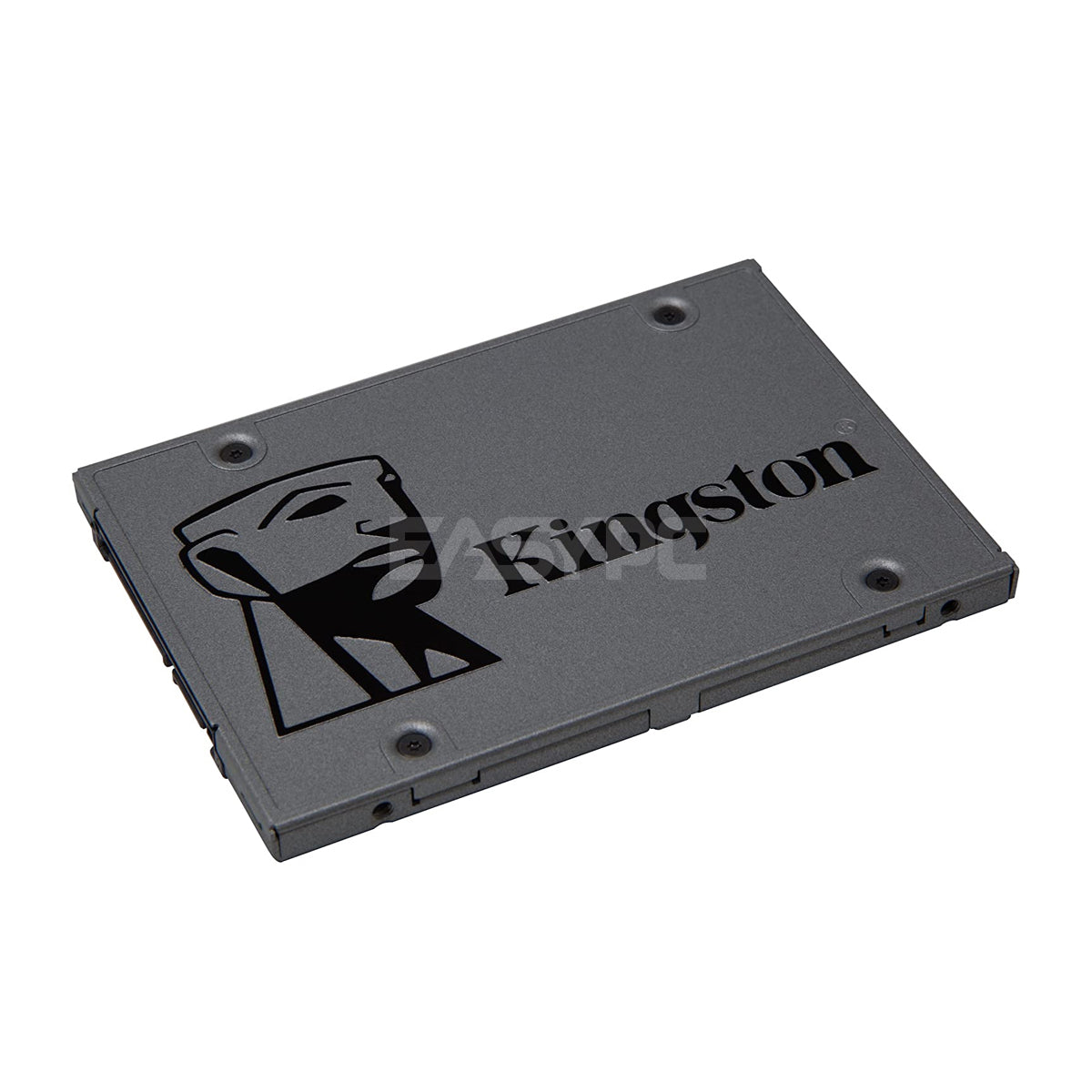

Kingston SSDNow UV500 Solid State Drive 240gb SATA 2.5
-
BrandKingston
Specifications
Form factor M.2 2280/mSATA
Interface SATA Rev. 3.0 (6Gb/s) with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities1 120GB, 240GB, 480GB, 960GB, 1.92TB
Controller Marvell 88SS1074 Controller
NAND 3D TLC
Encryption Encryption Support (AES 256-bit)
Sequential Read/Write2 120GB up to 520/320MB/s
240GB up to 520/500MB/s
480GB up to 520/500MB/s
960GB up to 520/500MB/s
1.92TB up to 520/500MB/s
Maximum 4K Read/Write2 120GB up to 79,000/18,000 IOPS
240GB up to 79,000/25,000 IOPS
480GB up to 79,000/35,000 IOPS
960GB up to 79,000/45,000 IOPS
1.92TB up to 79,000/50,000 IOPS
Power Consumption 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write
Dimensions 100.1mm x 69.85mm x 7mm (2.5)
80mm x 22mm x 3.5mm (M.2)
50.8mm x 29.85mm x 4.85mm (mSATA)
Operating temperature 0C~70C
Storage temperature -40C~85C
Weight 120GB480GB 41g (2.5)
960GB 57g (2.5)
1.92TB 52g (2.5)
120GB 6.6g (M.2)
240GB 6.7g (M.2)
480GB 7.7g (M.2)
960GB 7.8g (M.2)
120GB 6.2g (mSATA)
240GB 480GB 6.7g (mSATA)
Vibration operating 2.17G Peak (7800Hz)
Vibration non-operating 20G Peak (102000Hz)
Life expectancy 1 million hours MTBF
Warranty/support3 Limited 5-year warranty with free technical support
Total Bytes Written (TBW)4 120GB 60TB
240GB 100TB
480GB 200TB
960GB 480TB
1.92TB 800TB
