Gigabyte Z490 GA-Gaming-X Socket LGA 1200 Ddr4 Motherboard
GIGABYTE

Gigabyte Z490 GA-Gaming-X Socket LGA 1200 Ddr4 Motherboard

Available:Out of Stock
    ₱11,730.00
    Delivery Options
    • Nationwide Delivery
    Payment Options
    • cash-on-delivery
    • 7eleven
    • gcredit
    • GCash
    • BillEase
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard
    Warranty

    7 Days Outright Replacement

    1 Year Warranty

    • CPU
      1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® Z490 Express Chipset
    • Memory
      1. Intel® Core™ i9/i7 processors:
        DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
      2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
        Support for DDR4 2666/2400/2133 MHz memory modules
      3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      4. Dual channel memory architecture
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.3.
      Maximum shared memory of 512 MB
    • Audio
      1. Realtek® ALC1200 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4
      3. 3 x PCI Express x1 slots
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
      Supports up to ASPM L1.2 power management protocols.
    • Multi-Graphics Technology
      1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    • Storage Interface
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
      2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
      3. 6 x SATA 6Gb/s connectors
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
      5. Intel® Optane™ Memory Ready
      M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
    • USB
      Chipset:
      1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
      2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
      3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x 8-pin ATX 12V power connector
      4. 1 x CPU fan header
      5. 4 x system fan headers
      6. 2 x addressable LED strip headers
      7. 2 x RGB LED strip headers
      8. 6 x SATA 6Gb/s connectors
      9. 2 x M.2 Socket 3 connectors
      10. 1 x front panel header
      11. 1 x front panel audio header
      12. 1 x S/PDIF Out header
      13. 1 x USB 3.2 Gen 1 header
      14. 1 x USB 2.0/1.1 header
      15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      16. 2 x Thunderbolt™ add-in card connectors
      17. 1 x serial port header
      18. 1 x Clear CMOS jumper
      19. 1 x Q-Flash Plus button

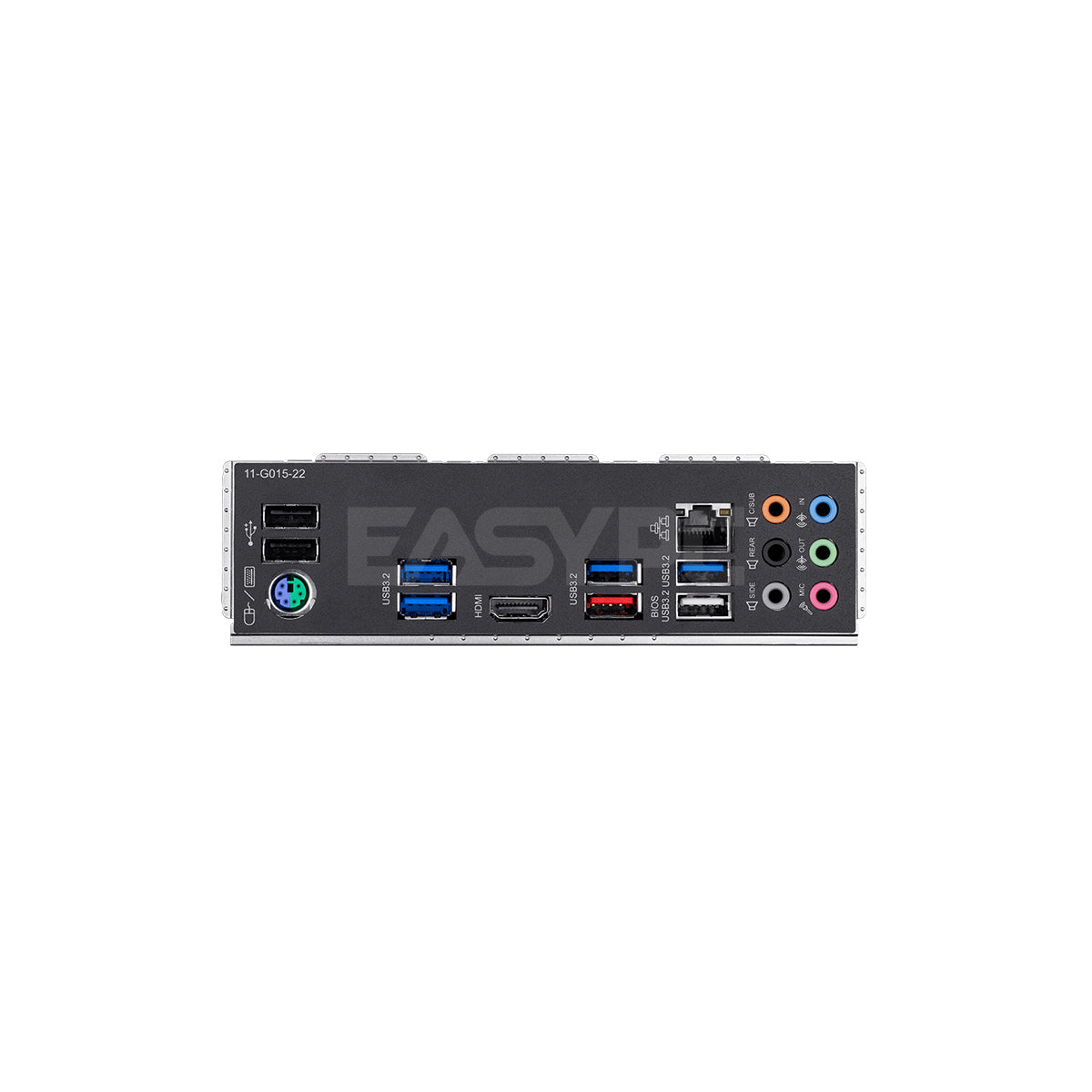

    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x HDMI port
      3. 1 x USB 3.2 Gen 2 Type-A port (red)
      4. 5 x USB 3.2 Gen 1 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 6 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        RGB Fusion
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash Plus
      3. Support for Q-Flash
      4. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Operating System
      1. Support for Windows 10 64-bit
    • Form Factor
      1. ATX Form Factor; 30.5cm x 23.0cm

    Browse more Motherboards at EasyPC.
