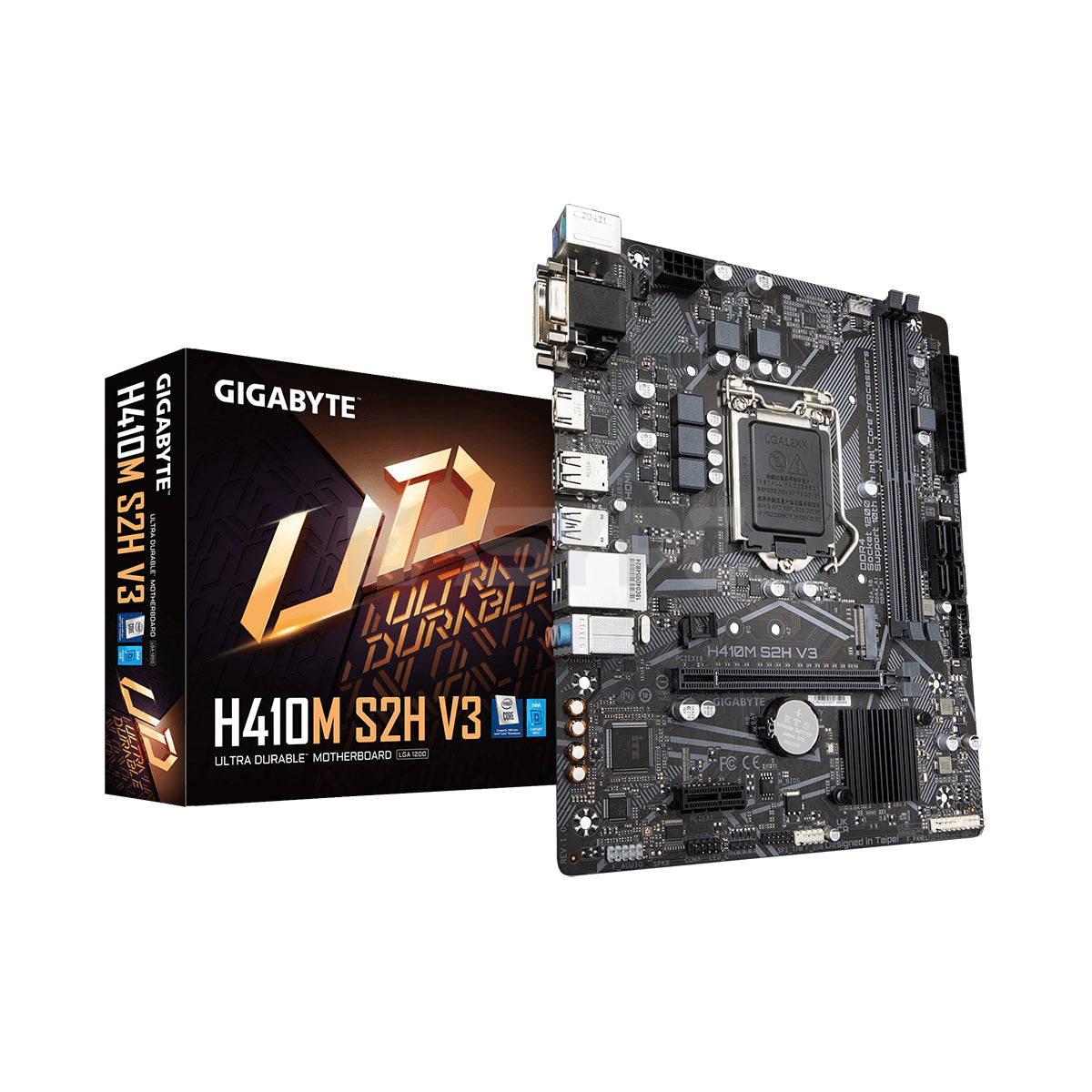

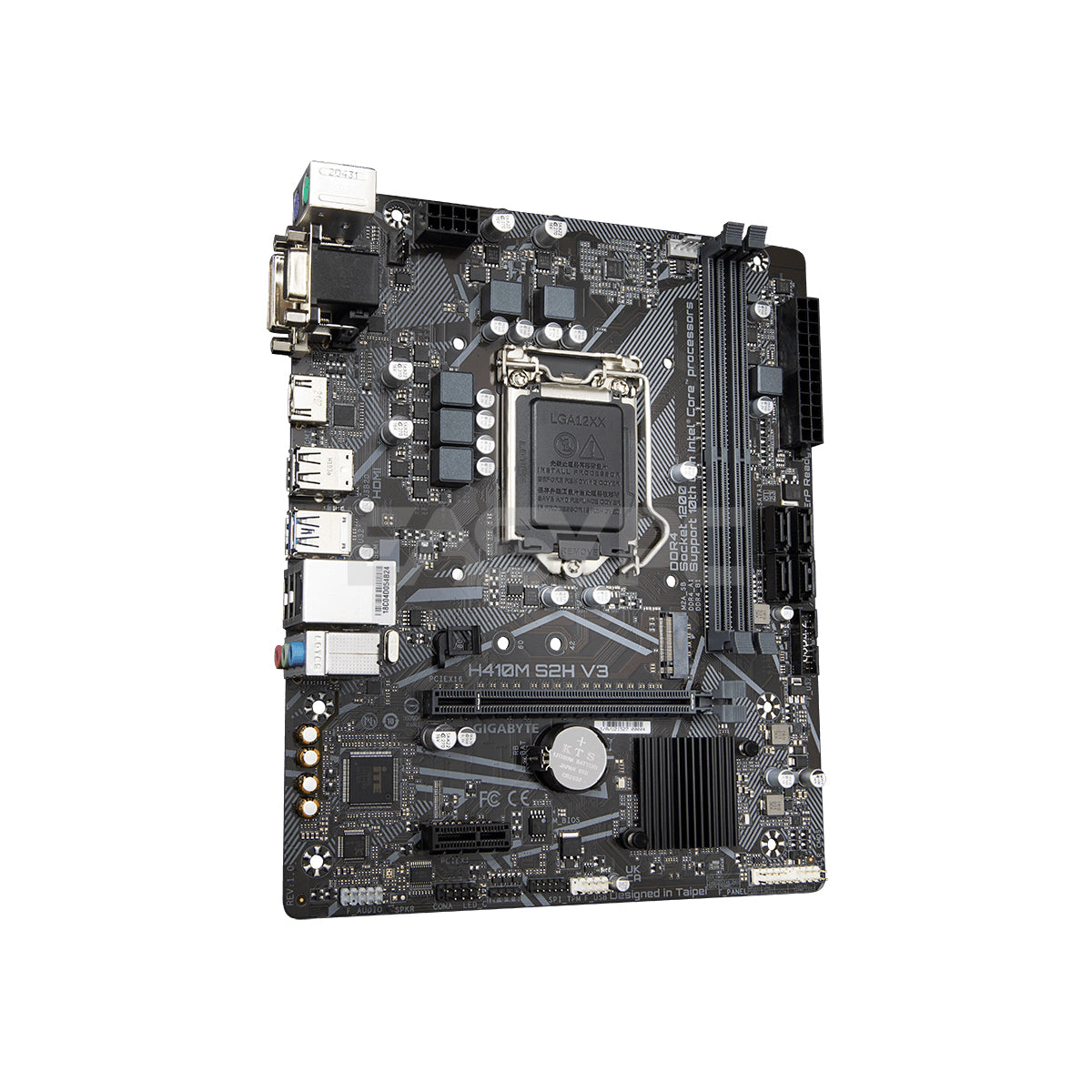

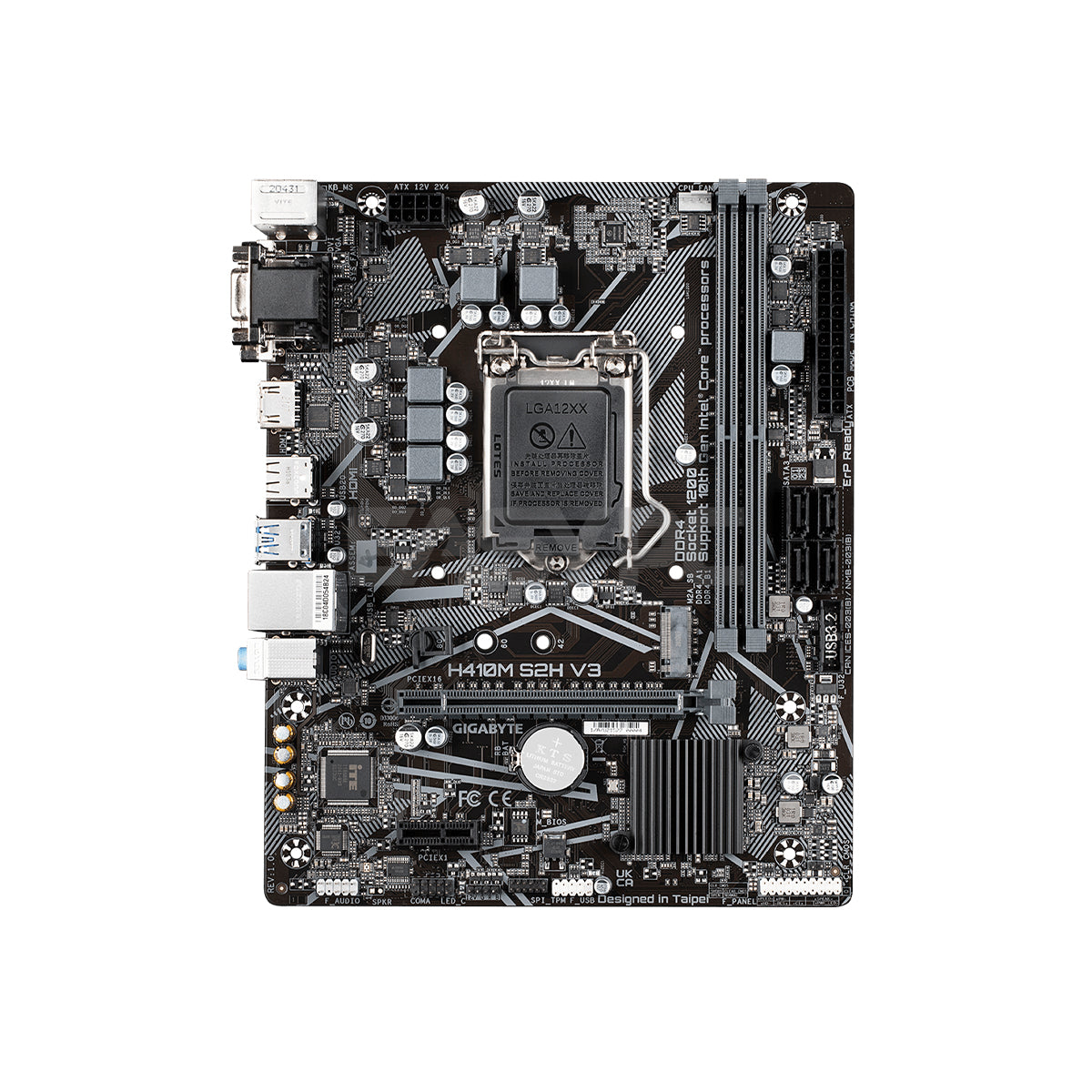

Gigabyte H410M-S2H V3 Socket 1200 Ddr4 Gaming Motherboard

Gigabyte H410M-S2H V3, Smart Fan 5, Anti-Sulfur Resistors Design, GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display Socket 1200 Ddr4 Gaming Motherboard

Product Description

Elevate your gaming experience with the Gigabyte H410M-S2H V3 motherboard. Designed for Socket 1200 CPUs, DDR4 support, and gaming enthusiasts, it offers a reliable foundation for high-performance gaming rigs. Unlock the potential of your system with this feature-packed motherboard.

Product Specifications

• Brand: Gigabyte
• Item model number: ‎H410M S2H
• Operating System: Support for Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
• CPU: Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package, L3 cache varies with CPU
• Chipset: Intel® H510 Express Chipset
• Memory:
• Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
• Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.3.
• Audio: Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN: Gigabit Ethernet Chip (1 Gbps/100 Mbps)
• CPU
• Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
• L3 cache varies with CPU
• (Please refer to "CPU Support List" for more information.)
• Chipset
• Intel® H510 Express Chipset
• Memory
• Intel® Core™ i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MHz memory modules
• Intel® Core™ i5/i3/Pentium®/Celeron® processors:
• Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.3.
• Maximum shared memory of 512 MB
• (Graphics specifications may vary depending on CPU support.)
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
• Gigabit Ethernet Chip (1 Gbps/100 Mbps)
• Expansion Slots: 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot
• Storage Interface: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support), 4 x SATA 6Gb/s connectors
• USB Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

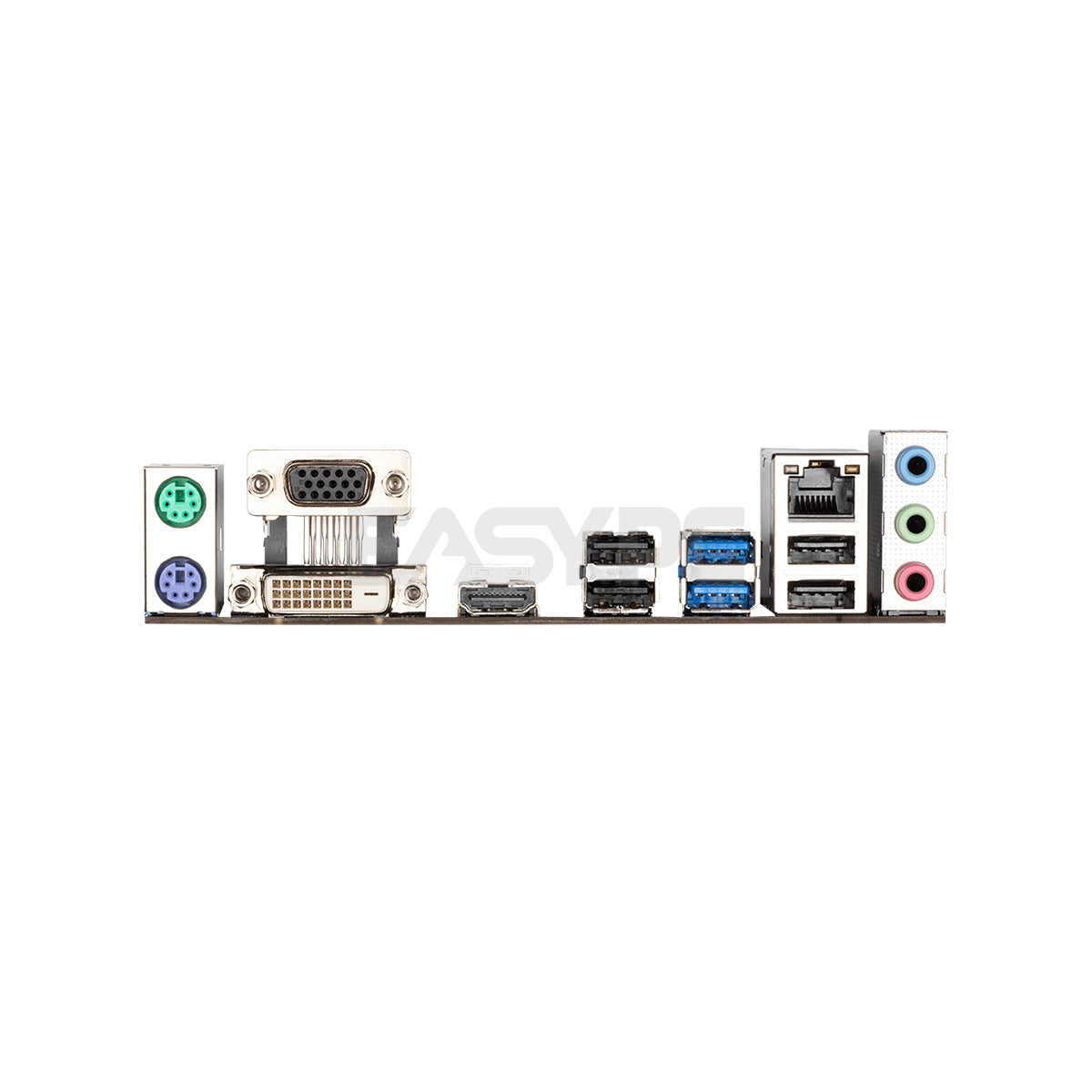

• Back Panel Connectors:
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring:
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• BIOS: 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• Ambient LED
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install
• Features:
• Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5
• Supports 10th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 8-Channel HD Audio with High Quality Audio Capacitors
• NVMe PCIe Gen3 x4 2280 M.2 Connector
• GIGABYTE Gaming GbE LAN with Bandwidth Management
• HDMI /DVI-D/D-Sub Ports for Multiple Display
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design
• Item Dimensions LxWxH: ‎10.43 x 9.25 x 2.04 inches
• Item Weight: ‎1.52 pounds
