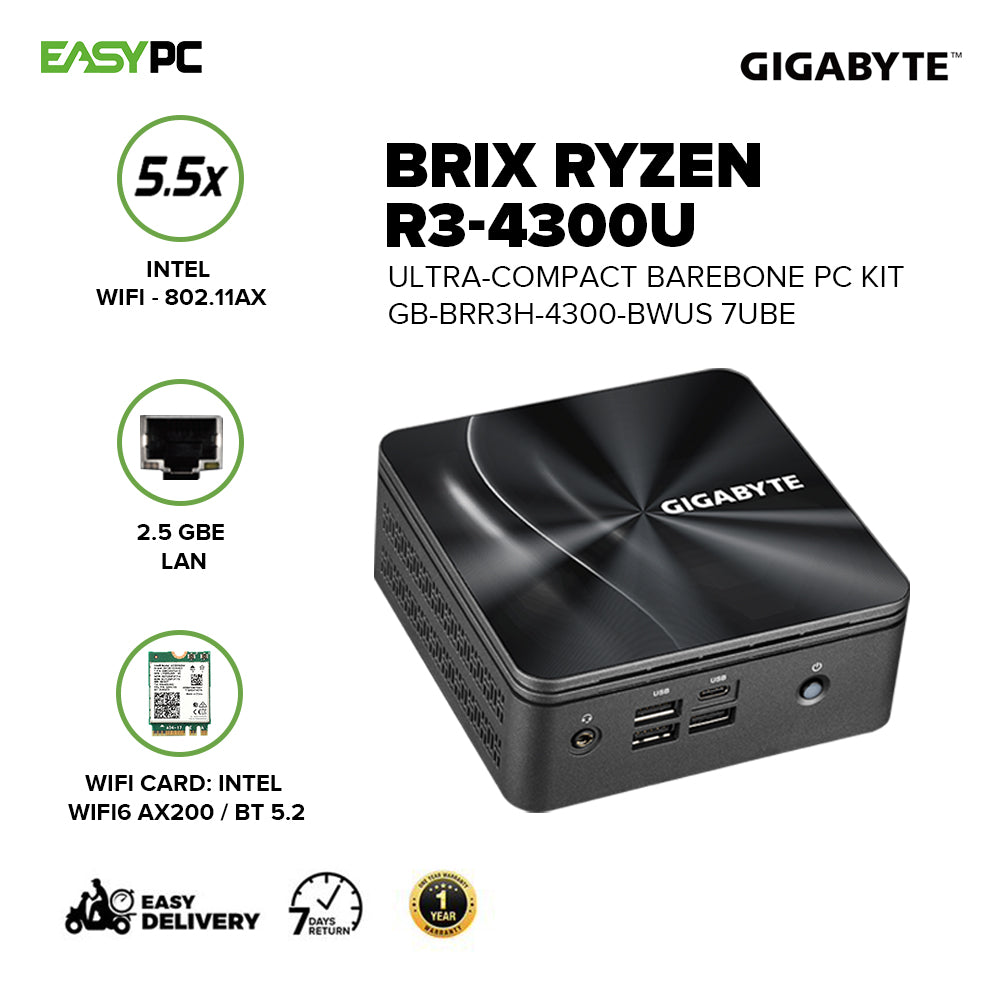

Gigabyte Brix Ultra-compact Barebone GB-BRR3H-4300-BWUS/ GB-BRR3H-4300-BWUS PC Kit 7UBE
GIGABYTE

Gigabyte Brix Ultra-compact Barebone GB-BRR3H-4300-BWUS/ GB-BRR3H-4300-BWUS PC Kit 7UBE

Available:Out of Stock
    PRE-ORDER: SHIPS IN 5-7 DAYS
    ₱16,850.00
    Delivery Options
    • Nationwide Delivery
    • Pre-Order Delivery
    Payment Options
    • cash-on-delivery
    • 7eleven
    • gcredit
    • GCash
    • BillEase
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard
    Warranty

    7 Days Outright Replacement

    1 Year Warranty

    Product Specifications

    • Brand: Gigabyte
    • Series: Brix
    • Model: GB-BRR3H-4300-BWUS/ GB-BRR3H-4300-BWUS
    • Dimension: 4‎‎6.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
    • Motherboard Size: 105 x 110 mm
    • CPU:
    • AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T Core, 6MB L3 Cache
    • AMD Radeon GPU 1400Mhz, 15W
    • CPU:
    • AMD RYZEN R5-4500U, 2.3G~4.0G Turbo, 6C/6T Core, 11MB L3 Cache
    • AMD Radeon GPU 1500Mhz, 15W
    • Memory:
    • 2 x SO-DIMM DDR4 slots
    • 3200MHz
    • Max. 64GB
    • LAN: 2.5G LAN (Realtek 8125)
    • Wifi Card: Intel WiFi6 AX200 / BT 5.2
    • Audio: Realtek ALC255
    • Video: AMD Radeon™ Graphics
    • HDMI Resolution (Max.): HDMI2.0a ws HDCP 2.2, 3840x2160@60Hz
    • Storage: Supports 2.5"" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3), 1 x M.2 slot (2280_storage), PCIe Gen3 X4 /SATA
    • Expansion Slots: 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

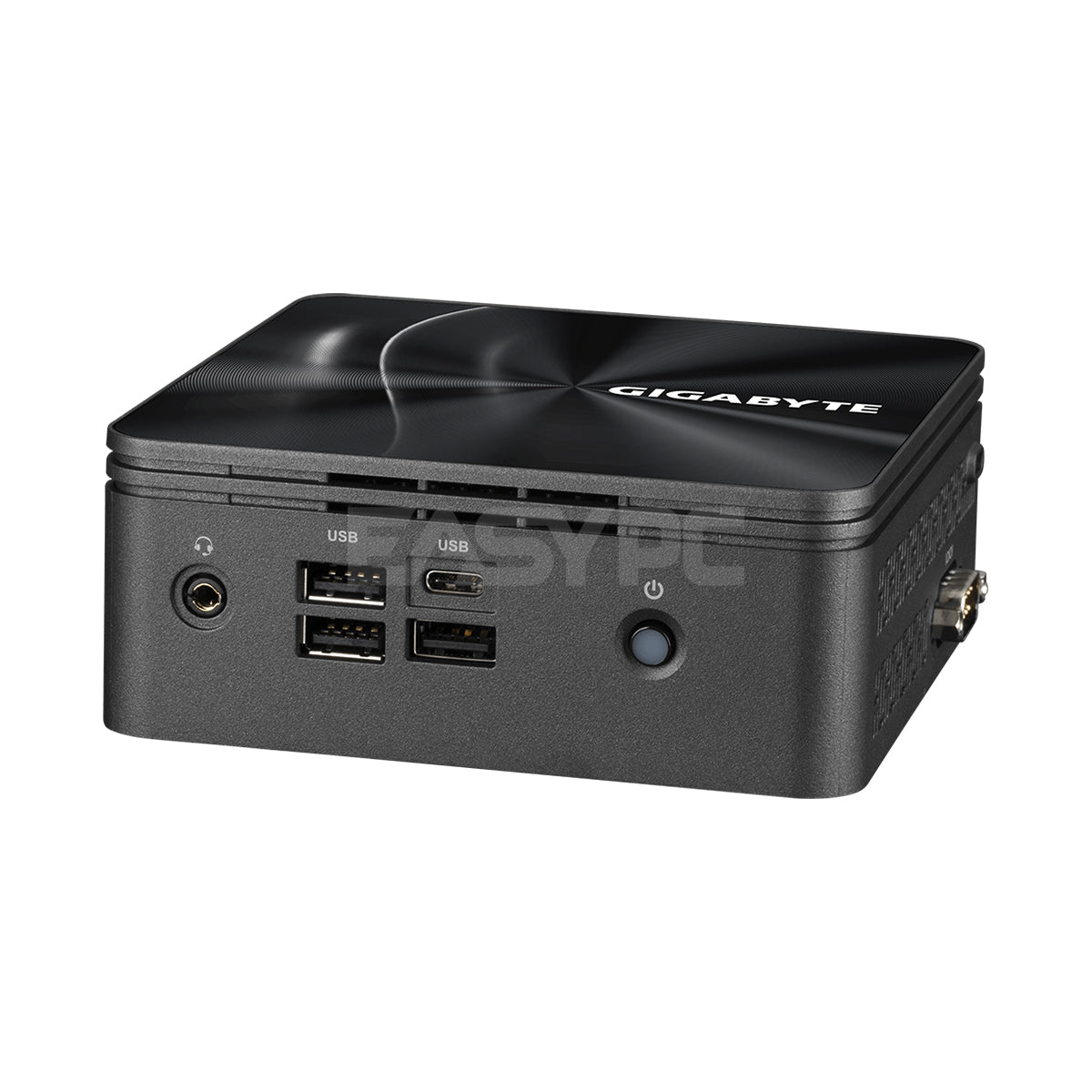

    • Front I/O:
    • 1 x Power Button
    • 1 x USB 3.2 type C (Gen2) w/ DP alt mode
    • 3 x USB type A 3.2 (Gen1)
    • 1 x head phone jack with MIC
    • Rear I/O:
    • 1 x HDMI(2.0a)
    • 1 x mDP
    • 1 x USB 3.2 type C (Gen2) w/ DP alt mode
    • 2 x USB 3.2 type A (Gen 1)
    • 1 x RJ45
    • 1 x DC-In
    • Side I/O:
    • 1 x Kensington lock slot
    • 1 x COM port
    • Power Supply:
    • Input: AC 100-240V
    • Output: DC 19V/4.74A, 90W
    • Support OS: Win10 64bit
    • Environment:
    • Operating Temperature 0°C to 35°C
    • Storage Temperature -20°C to +60°C
    • Width: 120 mm
    • Depth: 120 mm
    • Height: 35 mm
    • Package weight: 2.0 kg
    • Features:
    • High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
    • Ultra-compact PC design in 2 size (Slim /HDD)
    • Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
    • 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
    • 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
    • Intel WIFI6 +BT5.2
    • Realtek 2.5G LAN RTL8125
    • QUAD display: 2x Type C / HDMI / mDP with HDCP @4x4K/60P
    • RS232 COM port in HDD version
    • 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
    • Realtek ALC255 Codec
    • Headphone Jack
    • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
    • AC-DC adapter: 100-240V input, 19V/90W
    • OS Support: Microsoft Windows 10 64Bit
    • 1x Kensington Lock slot
    • System Environment Operating Temperature: 0°C to +35°C
    • System Storage Temperature: -20°C to +60°C
    • Option Daughter board support, 2nd COM port + LAN
