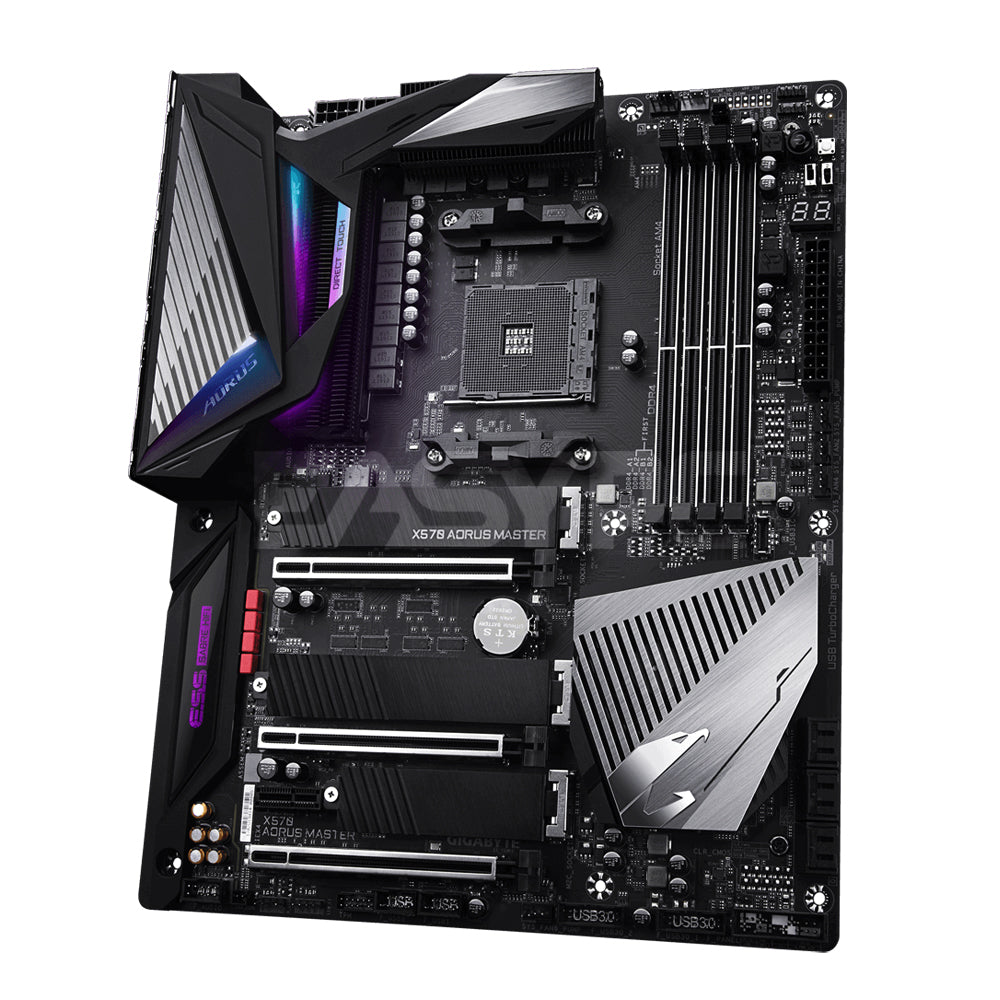

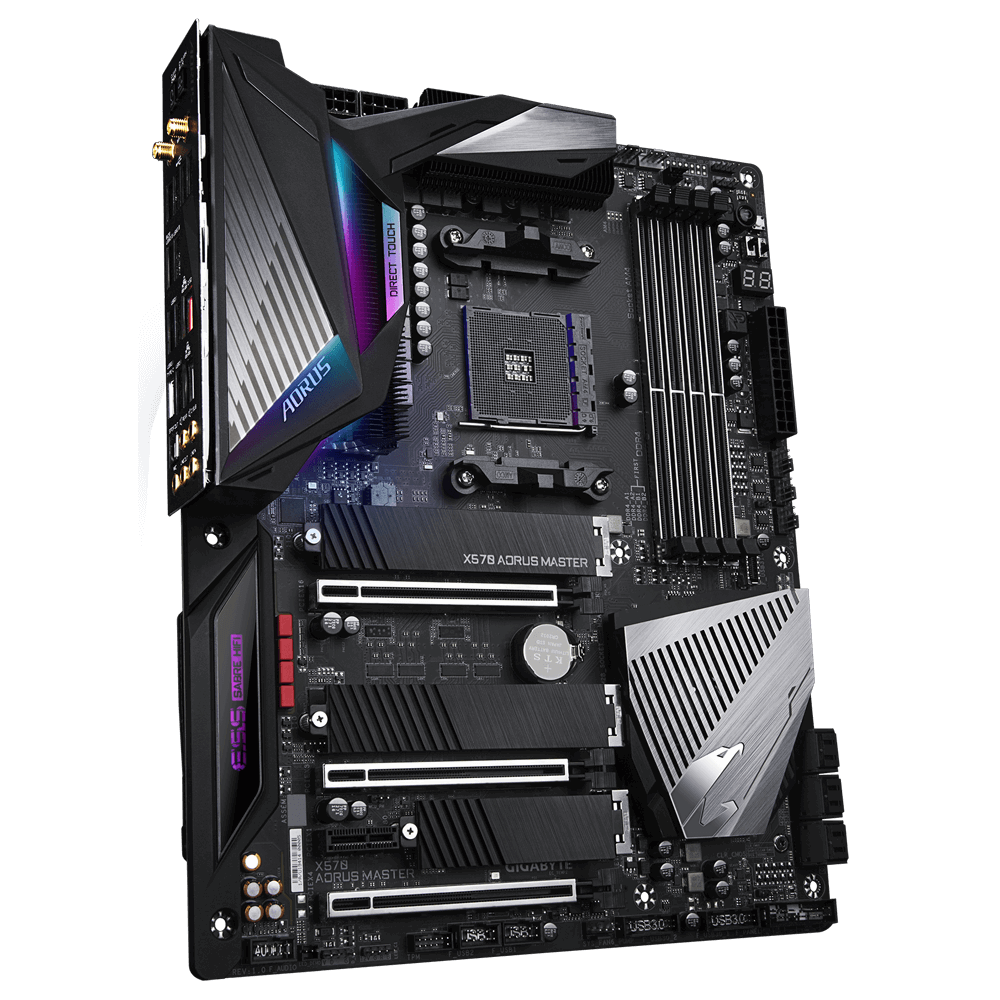

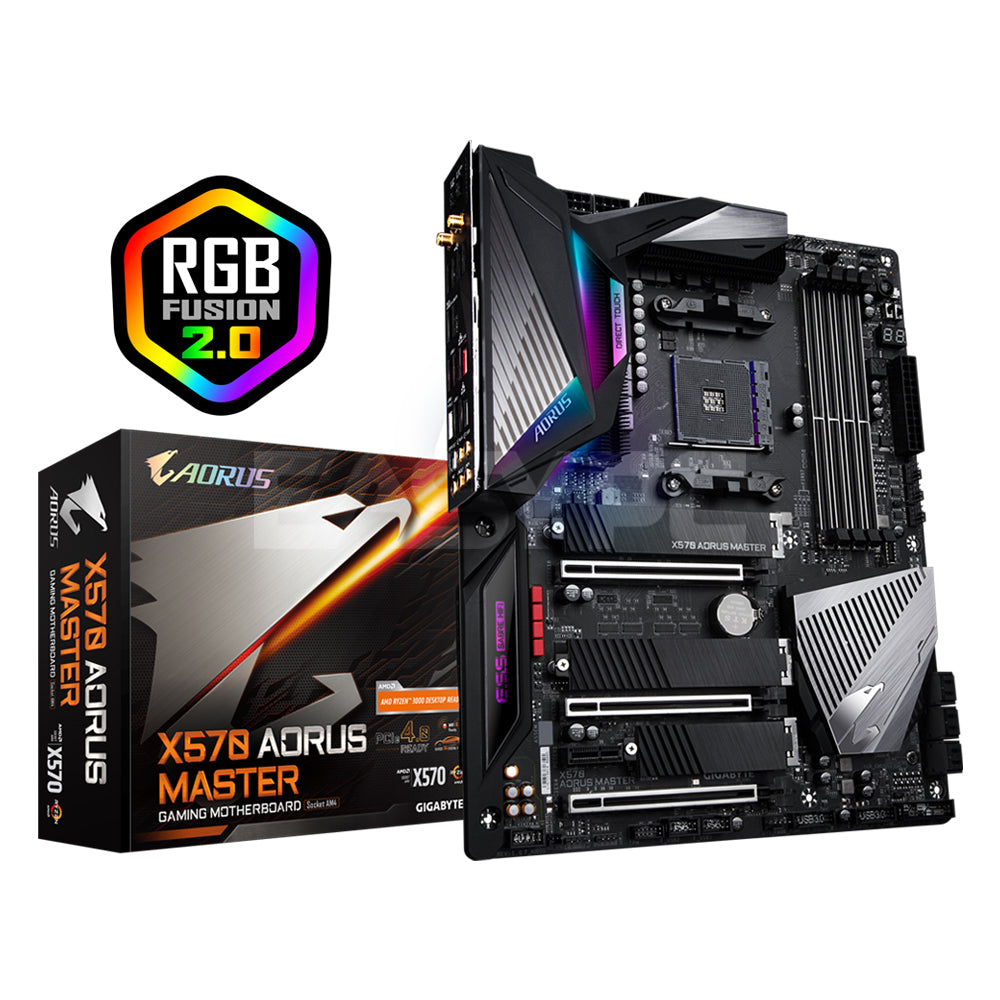

Gigabyte Aorus X570 Master Motherboard Socket Am4 Ddr4
GIGABYTE

Gigabyte Aorus X570 Master Motherboard Socket Am4 Ddr4

Available:Out of Stock
    ₱20,695.00
    Delivery Options
    • Nationwide Delivery
    Payment Options
    • cash-on-delivery
    • 7eleven
    • gcredit
    • GCash
    • BillEase
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard
    Warranty

    7 Days Outright Replacement

    1 Year Warranty

    • CPU
      1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD X570
    • Memory
      1. 3rd Generation AMD Ryzen™ processors:
        Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
        Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      4. Dual channel memory architecture
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
        * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Audio
      1. Realtek® ALC1220-VB codec
        * The front panel line out jack supports DSD audio.
      2. ESS SABRE9118 DAC chip
      3. High Definition Audio
      4. 2/4/5.1/7.1-channel
      5. Support for S/PDIF Out
    • LAN
      1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
      2. 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)
    • Wireless Communication module
      1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
      2. BLUETOOTH 5.0
      3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
        * Actual data rate may vary depending on environment and equipment.
    • Expansion Slots
      Integrated in the CPU (PCIEX16/PCIEX8):
      1. 3rd Generation AMD Ryzen™ processors:
        1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
        1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
      2. 2nd Generation AMD Ryzen™ processors:
        1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
        1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
        1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
      Integrated in the Chipset (PCIEX4/PCIEX1):
      1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
        * For 3rd Generation AMD Ryzen™ processors only.
      2. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0
        * For 3rd Generation AMD Ryzen™ processors only.
    • Multi-Graphics Technology
      1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
        2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
      For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
    • Storage Interface
      Integrated in the CPU (M2A_SOCKET):
      1. 3rd Generation AMD Ryzen™ processors:
        1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
      2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
        1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
      Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
        * For 3rd Generation AMD Ryzen™ processors only.
      2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
        * For 3rd Generation AMD Ryzen™ processors only.
      3. 6 x SATA 6Gb/s connectors
      4. Support for RAID 0, RAID 1, and RAID 10
        * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    • USB
      Integrated in the CPU:
      1. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
        * For 3rd Generation AMD Ryzen™ processors only.
      2. 2 x USB 3.2 Gen 1 ports on the back panel
      Integrated in the Chipset:
      1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
      2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
      3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
      4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
      Chipset+USB 2.0 Hub:
      1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 2 x 8-pin ATX 12V power connectors
      3. 1 x CPU fan header
      4. 1 x water cooling CPU fan header
      5. 3 x system fan headers
      6. 2 x system fan/water cooling pump headers
      7. 2 x addressable LED strip headers
      8. 2 x RGB LED strip headers
      9. 3 x M.2 Socket 3 connectors
      10. 6 x SATA 6Gb/s connectors
      11. 1 x front panel header
      12. 1 x front panel audio header
      13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
      14. 2 x USB 3.2 Gen 1 headers
      15. 2 x USB 2.0/1.1 headers
      16. 1 x noise detection header
      17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      18. 2 x temperature sensor headers
      19. 1 x power button
      20. 1 x reset button
      21. 2 x BIOS switches
      22. 1 x Clear CMOS jumper
      23. Voltage Measurement Points
      24. 1 x Thunderbolt™ add-in card connector (Only rev1.1 available)
    • Back Panel Connectors
      1. 1 x Q-Flash Plus button
      2. 1 x Clear CMOS button
      3. 2 x SMA antenna connectors (2T2R)
      4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
      5. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
        * For 3rd Generation AMD Ryzen™ processors only.
      6. 1 x USB 3.2 Gen 2 Type-A port (red)
      7. 2 x USB 3.2 Gen 1 ports
      8. 4 x USB 2.0/1.1 ports
      9. 2 x RJ-45 ports
      10. 1 x optical S/PDIF Out connector
      11. 5 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Overheating warning
      6. Fan fail warning
      7. Fan speed control
        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
      8. Noise detection
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        AutoGreen
        Cloud Station
        EasyTune
        Fast Boot
        Game Boost
        RGB Fusion
        Smart Backup
        Smart Keyboard
        Smart Survey
        System Information Viewer
        USB Blocker
        USB TurboCharger
      2. Support for Q-Flash Plus
      3. Support for Q-Flash
      4. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
      3. XSplit Gamecaster + Broadcaster (12 months license)
    • Operating System
      1. Support for Windows 10 64-bit
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
