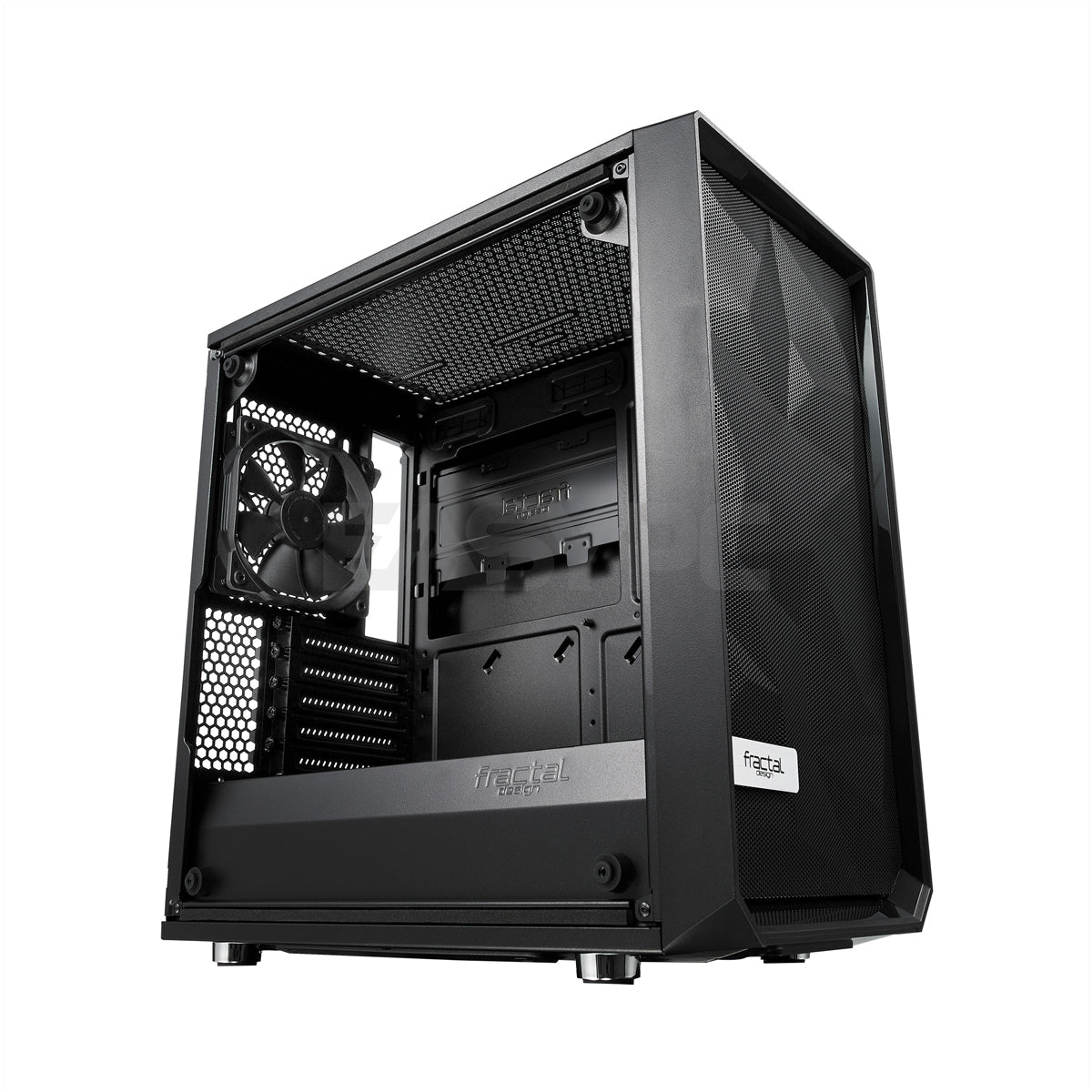

Fractal Design Meshify Mini C TG Micro Atx Case Black
-
BrandFractal
Specifications
3.5" or 2.5" Drive capacity
2
Dedicated 2.5" drive capacity
3
Expansion slots
5
Front ports
2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts
7
Front fan
3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included)
Top fan
2x 120/140 mm
Rear fan
1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan
1x 120 mm
Dust filters
Bottom fan + PSU, Front fans, Top fans
Cable routing grommets
Yes
Fixed velcro straps
Yes
Captive thumbscrews
Both side panels, SSD brackets
Left side panel
Tempered glass panel
Right side panel
Steel
Compatibility
Power supply type
ATX
Motherboard compatibility
mATX, ITX
Front radiator
120/240 mm, 140/280 mm (max width 144 mm)
Top radiator
120/240 mm (max component height on motherboard 40 mm)
Rear radiator
120 mm (max width 125 mm)
PSU max length
175 mm
GPU max length
315 mm with front fan mounted
CPU cooler max height
172 mm
Cable routing space
15-35 mm
Dimensions
Case dimensions (LxWxH)
395 x 212 x 399 mm
Case dimensions w feet/protrusions/screws
409 x 217 x 412 mm
Net weight
6.28 kg
Package dimensions (LxWxH)
502 x 295 x 484 mm
Package weight
7.41 kg
Other
Package contents
Meshify C Mini Dark TG computer case, User manual, Accessory box, Top filter
EAN
7340172700111
UPC
843276100117
Product code
FD-CA-MESH-C-MINI-BKO-TGD
