Biostar B560MX-E Pro Socket 1200 Ddr4 Supports Intel Optane Technology Supports WiFi 6 module, Supports HDMI 1.4 4K resolution Gaming Motherboard
BIOSTAR

Biostar B560MX-E Pro Socket 1200 Ddr4 Supports Intel Optane Technology Supports WiFi 6 module, Supports HDMI 1.4 4K resolution Gaming Motherboard

Available:Out of Stock
    ₱4,995.00
    Delivery Options
    • Nationwide Delivery
    Payment Options
    • cash-on-delivery
    • 7eleven
    • gcredit
    • GCash
    • BillEase
    • GrabPay
    • Paymaya
    • Visa
    • Mastercard
    Warranty

    7 Days Outright Replacement

    Product Specifications

    • Brand: ‎BIOSTAR
    • Item model number: B560MX-E PRO
    • Processor Socket: ‎LGA 1200
    • Memory Technology: DDR4
    • Chipset: Intel B560
    • CPU SUPPORT: Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/
    • Intel Celeron processors in the LGA1200 package
    • * Please refer to www.biostar.com.tw for CPU support list.
    • MEMORY: Supports Dual Channel DDR4 4000+(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200/2933/2666/2400/2133
    • 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
    • Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
    • * Please refer to www.biostar.com.tw for Memory support list.
    • INTEGRATED VIDEO:
    • By CPU model
    • Supports DX12
    • Supports HDCP
    • STORAGE: Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports
    • 4 x SATA III Connector (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology
    • 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
    • Supports M.2 Type 2280 SSD module
    • Supports PCIe 4.0 x 4 (64Gb/s) - NVMe/ AHCI SSD
    • Support 11th Gen processor only
    • 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST1):
    • Supports M.2 Type 2242/ 2260/ 2280 SSD module
    • Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
    • Supports Intel Optane Technology
    • * M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.
    • LAN: Intel I219V
    • 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
    • AUDIO CODEC ALC897
    • 1 Channels, High Definition Audio, Hi-Fi(Front)
    • USB: 6 x USB 3.2(Gen1) port (4 on rear I/Os and 2 via internal headers)
    • 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
    • EXPANSION SLOT
    • 1 x PCIe 3.0 x1 Slot
    • 1 x PCIe 4.0 x16 Slot (x16 mode)
    • 1 x PCIe 3.0 x16 Slot (x4 mode)

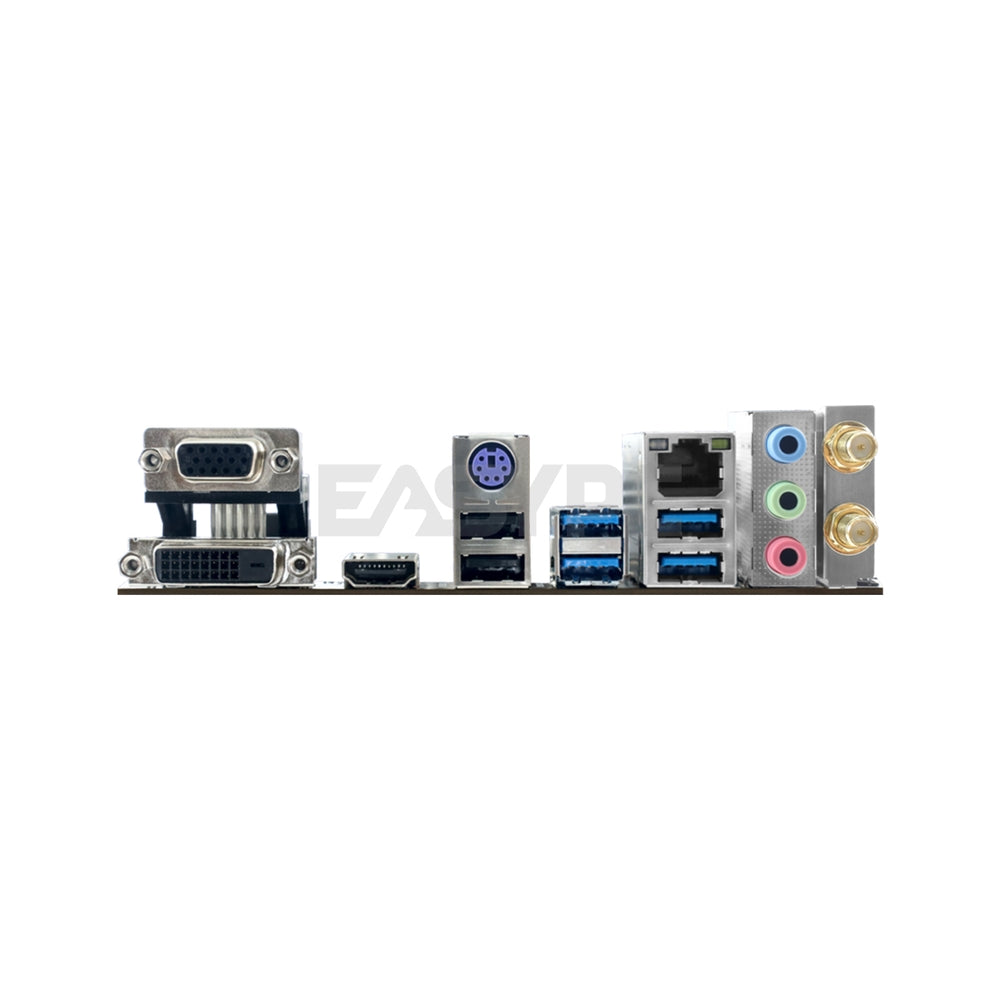

    • REAR I/O
    • 2 x WIFI Antenna Port
    • 1 x PS/2 Keyboard/ Mouse Port
    • 1 x VGA Port
    • 1 x DVI-D Port
    • 1 x HDMI 1.4 Port
    • 4 x USB 3.2 (Gen1) port
    • 2 x USB 2.0 port
    • 1 x LAN port
    • 3 x Audio Jack
    • INTERNAL I/O
    • 4 x SATA III Connector (6Gb/s)
    • 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
    • 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
    • 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
    • 1 x 8-Pin Power Connector
    • 1 x 24-Pin Power Connector
    • 1 x CPU Fan Connector
    • 1 x CPU water cooling connector (CPU_OPT)
    • 1 x System Fan Connector
    • 1 x Front Panel Header
    • 1 x Front Audio Header
    • 1 x Internal Stereo Speaker Header
    • 1 x Clear CMOS Header
    • 1 x COM Port Header
    • 1 x TPM Header
    • * M.2 (E key) Wi-Fi card is not provided
    • H/W MONITORING
    • CPU / System Temperature Monitoring
    • CPU / System Fan Monitoring
    • Smart / Manual CPU Fan Control
    • System Voltage Monitoring
    • OS SUPPORT
    • Supports Windows 10(64bit) / 11(64bit)
    • ※Biostar reserves the right to add or remove support for any OS with or without notice.
    • Features:
    • Supports 10th/ 11th Generation Intel Core™ Processor
    • Intel B560 single chip architecture
    • Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4000+(OC) up to 128 GB Memory
    • Supports PCIe 4.0
    • Supports PCIe M.2 4.0 (64Gb/s)
    • Supports Intel Optane Technology
    • Supports USB 3.2 Gen1
    • Supports WiFi 6 module (No WiFi 6 card included)
    • Supports HDMI 1.4 4K resolution
