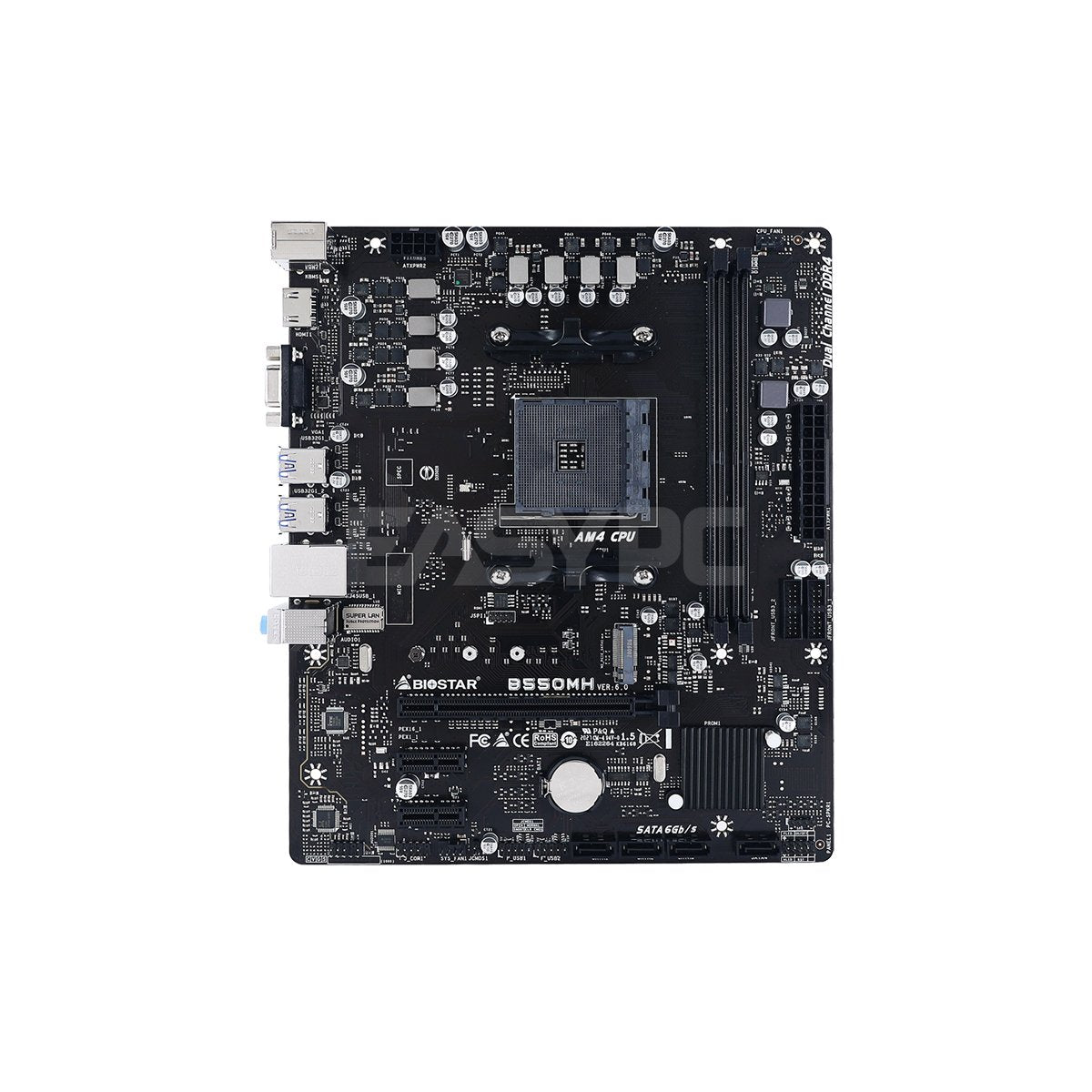

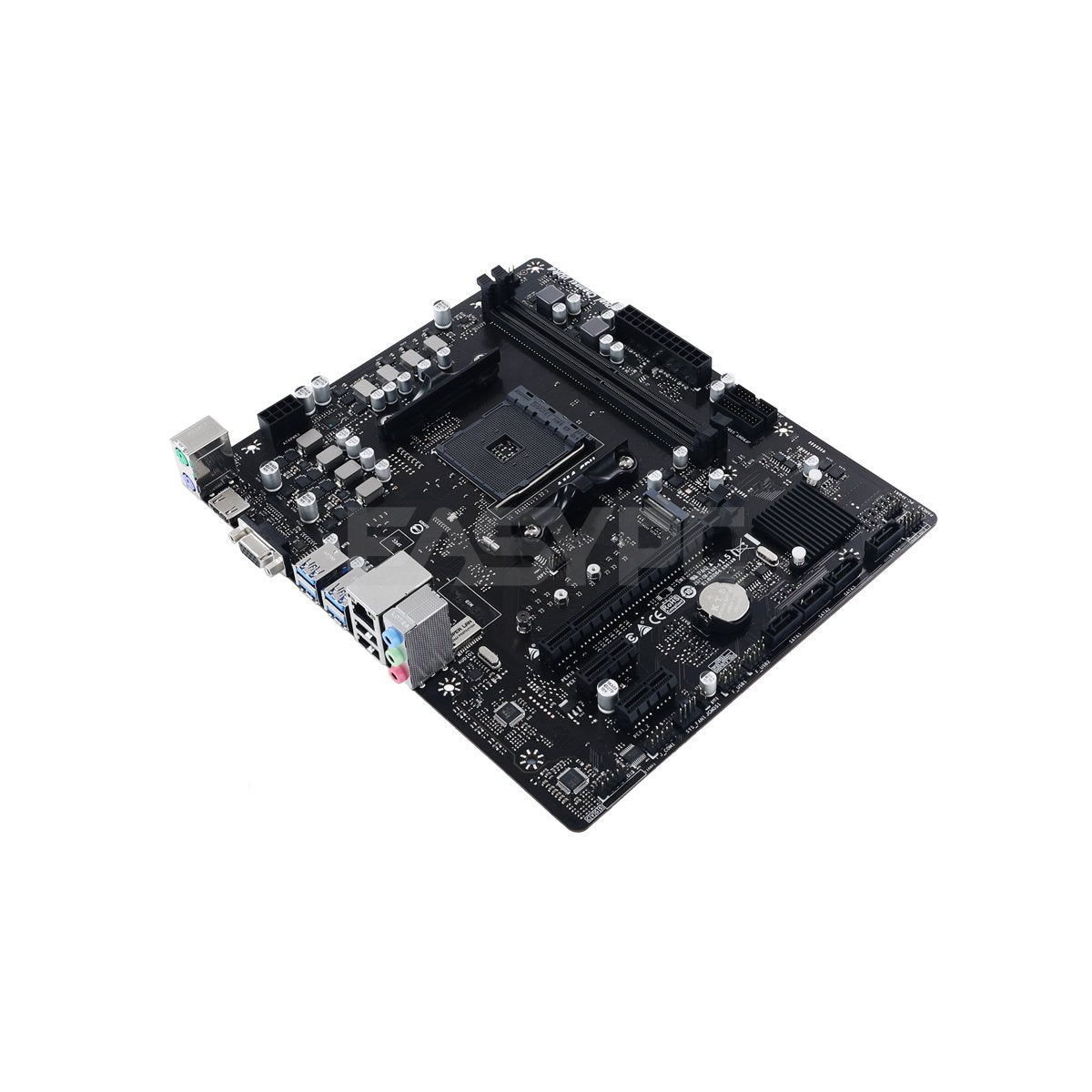

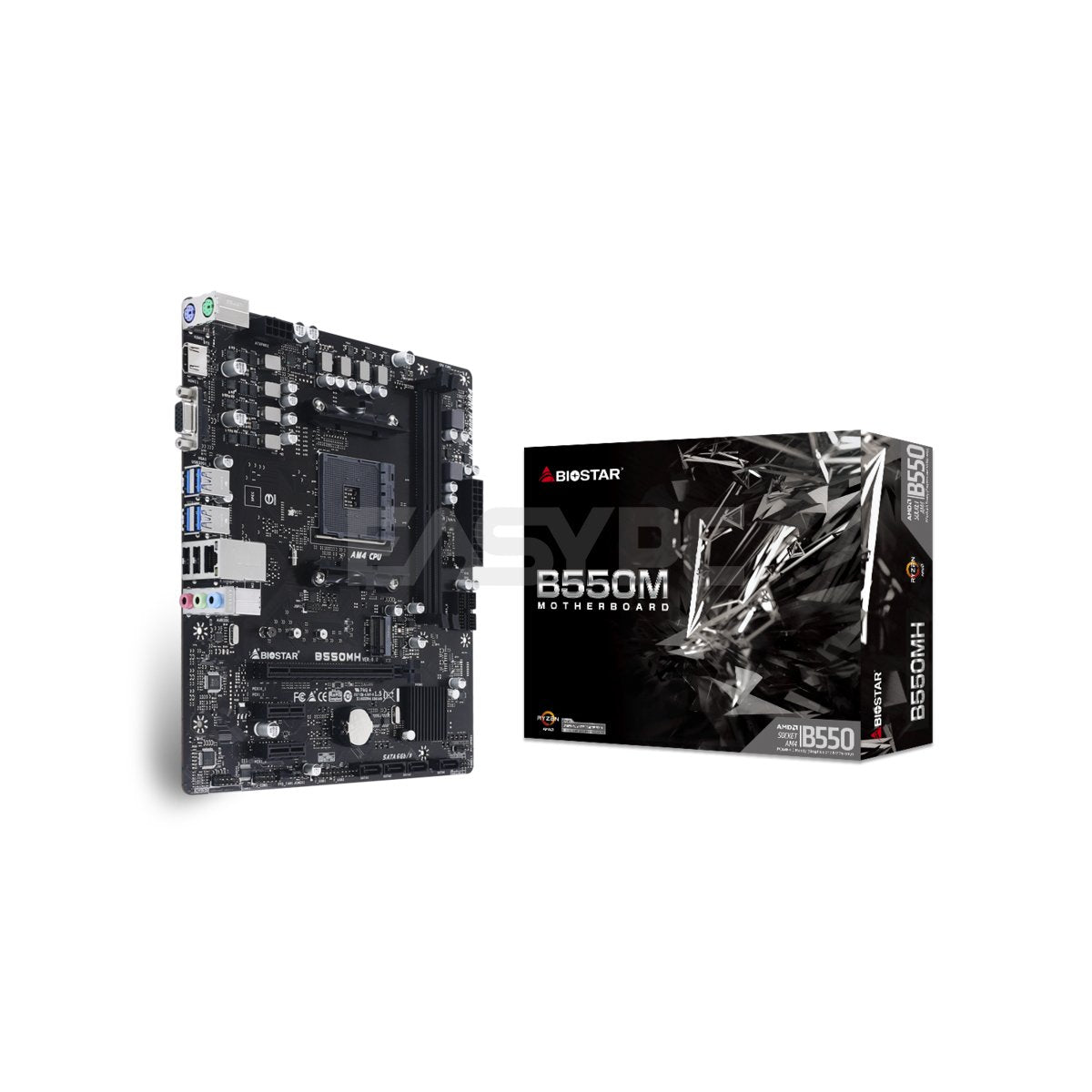

Biostar B550MH Socket Am4 Ddr4 Motherboard
₱4,130.00
Delivery Options
Express Delivery - Php200.00 - Php250.00Same Day
Standard Delivery - Php0.00Est. 2-3 Days
Payment Options
Dragonpay
Cash on Delivery
Chipset | AMD B550 |
CPU SUPPORT | Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors |
Support for future AMD Ryzen processors with BIOS update | |
* Please refer to www.biostar.com.tw for CPU support list. | |
MEMORY | 3rd Gen AMD Ryzen Processors (Matisse CPUs) |
Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 | |
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) | |
Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 | |
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory | |
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module | |
* DDR4 - 2667 only for Ryzen CPU. | |
* Please refer to www.biostar.com.tw for Memory support list. | |
INTEGRATED VIDEO | By CPU model |
Supports DX12 | |
Supports HDCP | |
STORAGE | 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 |
1 x M.2 (M Key) Socket: | |
Supports M.2 Type 2242/ 2260/ 2280 SSD module | |
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD | |
Supports SATA III (6.0Gb/s) SSD | |
* M.2 (M Key) Socket (M2_PCIe-SATA1): | |
The bandwidth is depended on CPU. | |
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. | |
LAN | Realtek RTL8111H |
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability | |
Supports Super LAN Surge Protection | |
AUDIO CODEC | ALC887 |
7.1 Channels, High Definition Audio, Hi-Fi (Front) | |
USB | 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers) |
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) | |
EXPANSION SLOT | 1 x PCIe 4.0/ 3.0 x 16 Slot: |
Supports PCIe 4.0 x 16 mode with AMD Ryzen™ processors. (Matisse only) | |
Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only) | |
2 x PCIe 3.0 x 1 Slot | |
* According to different CPUs will have different speeds. | |

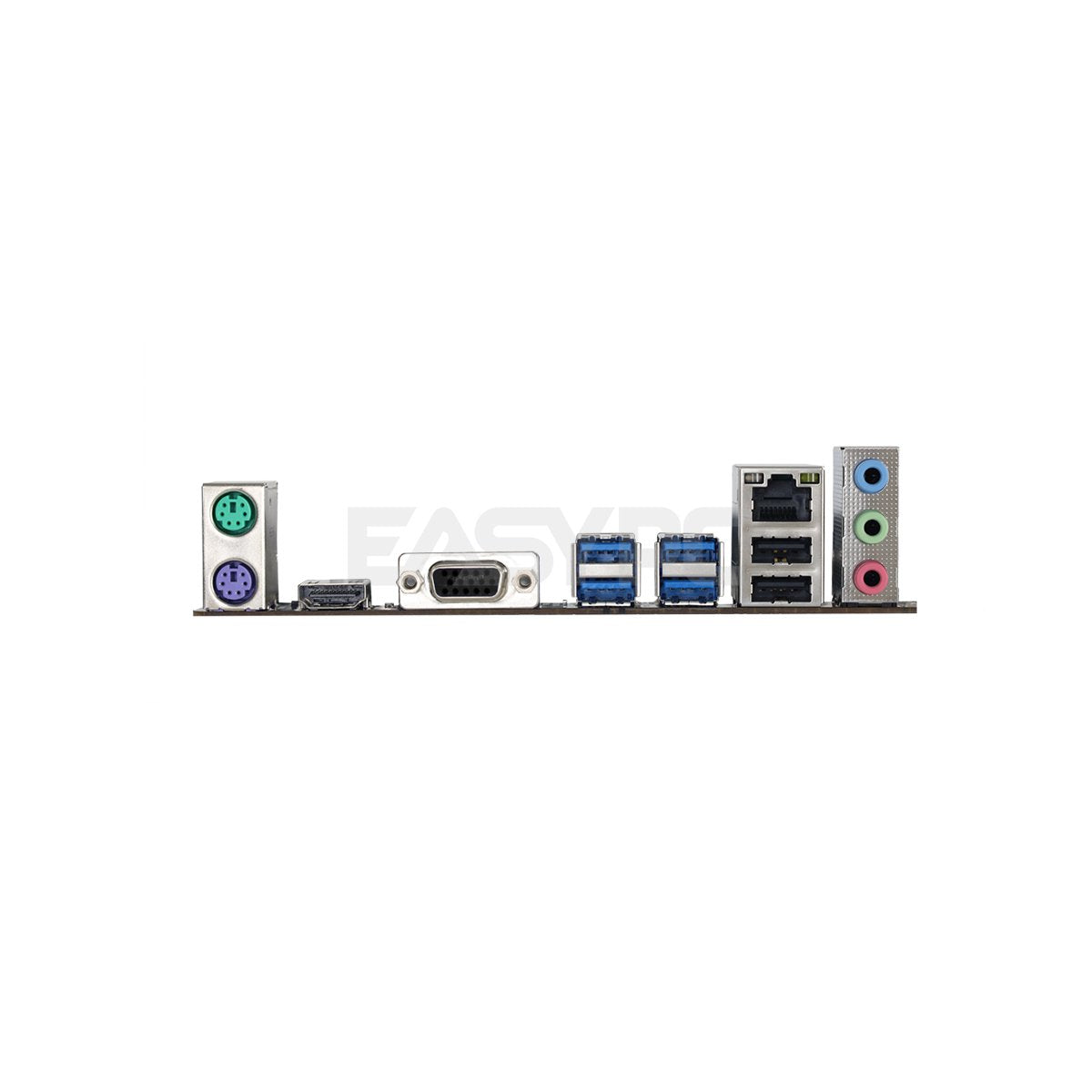

REAR I/O | 1 x PS/2 Keyboard |
1 x PS/2 Mouse | |
1 x HDMI Port | |
1 x VGA Port | |
1 x LAN port | |
4 x USB 3.2 (Gen1) Ports | |
2 x USB 2.0 Ports | |
3 x Audio Jack | |
INTERNAL I/O | 4 x SATA III (6.0Gb/s) Connectors |
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) | |
2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) | |
1 x 8-Pin Power Connector | |
1 x 24-Pin Power Connector | |
1 x CPU Fan Connector | |
1 x System Fan Connector | |
1 x Front Panel Header | |
1 x Front Audio Header | |
1 x Clear CMOS Header | |
1 x Internal Stereo Speaker Header | |
1 x COM Port Header | |
H/W MONITORING | CPU / System Temperature Monitoring |
CPU / System Fan Monitoring | |
Smart / Manual CPU Fan Control | |
System Voltage Monitoring | |
DIMENSION | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) |
OS SUPPORT | Supports Windows 10(64bit) |
※Biostar reserves the right to add or remove support for any OS with or without notice | |
BUNDLE SOFTWARE | BullGuard |
FEATURES | Supports 100% Solid capacitor |
Supports A.I FAN | |
PCI-E M.2 4.0 |
